Unislope 4K Wetroom System
Verified by manufacturer 2 months ago
BBA Agrément Certificate
Certificate type
UniSlope® 4K allows level shower access at four entry points. Suitable for small and large tiles. Comes with Unidrain, Unislope preformed board and waterproofing membrane.
Application
Suitable for POD manufacturing, traditional builds, residential and commercial applications.
Description
UniSlope® 4K allows level shower access at four entry points with four slopes towards the linear drain. Suitable for both small and large tiles. Any thickness.
Four different grating designs are available.
Features and benefits:
- 100% waterproof.
- Large range of finishes from tiled grate to PVD coloured panels.
- All walk in shower kits can be trimmed down to suit requirements.
- Suitable for any thickness of floor tile or stone.
- Pressed stainless steel drain.
- Range of outlets to drain from 32–102 L/minute.
- Low profile and vertical outlets available.
- Solid preformed UniSlope boards have the gradient built in for the slope.
- Approved flexible waterproofing kit.

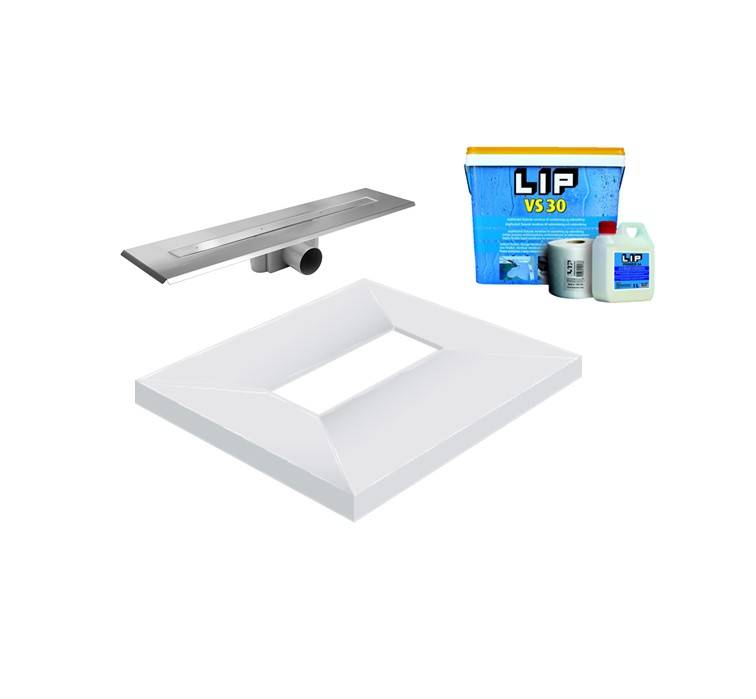

Components:
- Unidrain wet room drain: BBA Approved Pressed Stainless-Steel drain with internal drainage slope built in. Large flanges for secure membrane bond. Polypropene outlets with built in BS compliant traps. Interchangeable stainless-steel grates, panels, and tiled covers.
- UniSlope Board: Easy to trim high density Foamex with solid core.
- LIPVS30 Tanking Kit: Flexible water based eco-friendly tanking membrane for walls and floors.
General information
Color | Black Copper Silver Gold |
Finish | Brushed PVD Polished Manufacturer guidanceTile Insert available |
Material | Stainless steel |
Shape | Rectangle |
Length | 900 mm 1200 mm 1500 mm Bespoke |
Width | 900 mm 1000 mm Bespoke |
Height | 19 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | R11/5 Floor drains R11/315 Floor drains N13/377 Wet room showers |
Specification data - Floor channels
Standard | To BS EN 1253-1. To BS EN 1253-2. |
Body | |
Material | Stainless steel. |
Cover or grating | |
Cover or grating type | Grate and frame.Highline custom.Highline panel and frame.Highline cassette and frame.Highline panel without frame. |
Material | Stainless steel. |
Finish | Brushed.PVD.Polished.Tiled. |
Integral accessories | UniSlope Board and Tanking Kit. |
Dimensions | 900 x 900 mm. 1200 x 900 mm. 1500 x 1000 mm. Manufacturer guidanceUniSlope Board. |
Outlet | Horizontal, low profile. Horizontal, standard outlet. |
Sustainability data
Material | Stainless steel |
Third party certifications
BBA Agrément Certificate
BBA Cert Unidrain
BBA Agrément Certificate
Unidrain Stainless Steel Shower Drains
Case studies
Handsmooth House
