Unislope 2K Wetroom System

Verified by manufacturer 18 days ago

WM | Wetroom Materials Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Wetroom system with wall mounted corner drain, preformed tray, and waterproofing membrane.

Jump to:
+44 (0)1332 840820 Website

Application

Suitable for POD manufacturing, traditional builds, residential and commercial applications.

Description

The Unislope® 2K wet room kits are suitable for small shower areas and to achieve level access at two entry points. High quality corner wet room drain kit with a slope tray falling towards the drain against the wall. 2K UniSlope® has an extensive range of drain finishes.  Shallow installation depth from 64 mm.


Three different grating designs are available.


Features and benefits:

  • 100% waterproof.
  • Range of brushed stainless-steel designs.
  • Can be trimmed down to suit requirements.
  • Suitable for smaller tiles.
  • Wall mounted pressed stainless-steel drain.
  • Range of outlets to drain from 30–50 L/minute.
  • Low profile from 64mm in depth and vertical outlets available with this complete wet room kit.
  • Solid preformed UniSlope boards have the gradient built in for the slope.
  • Approved flexible waterproofing kit.

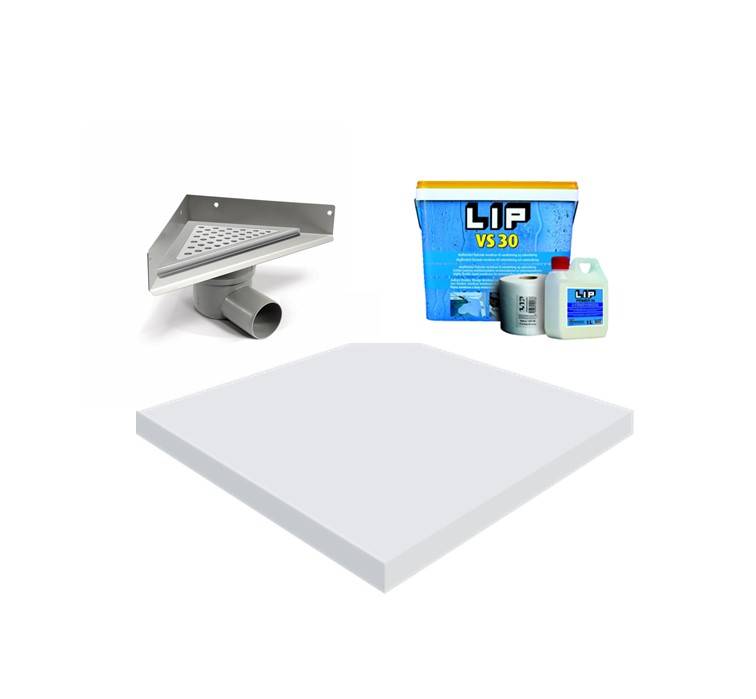

Components:

  • Unidrain Wet room Drain: BBA Approved Pressed Stainless-Steel drain with internal drainage slope built in. Large flanges for secure membrane bond. Polypropene outlets with built in BS compliant traps. Interchangeable stainless-steel grates, panels, and tiled covers.
  • UniSlope Board: Easy to trim high density Foamex with solid core.
  • LIPVS30 Tanking Kit: Flexible water based eco-friendly tanking membrane for walls and floors.

General information

Color

Silver

Black

Copper

Gold

Finish

Brushed

Polished

Manufacturer guidance

Tile Insert available

Material

Stainless steel

Shape

Triangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_65_52_24_28 Floor channelsPrimary
Pr_40_20_60_96 Wet room floor formers

CAWS

N13/377 Wet room showers

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor channels

Standard

To BS EN 1253-1. To BS EN 1253-2.

Body

-

Material

Stainless steel.

Configuration

P-trapped.

S-trapped.

Cover or grating

-

Cover or grating type

Classic grate with frame.

Column grate with frame.

Highline panel with frame.

Material

Stainless steel.

Finish

Brushed.

Polished.

Tiled.

Integral accessories

UniSlope Board and Tanking Kit.

Dimensions

900 x 900 mm.

Guidance for specification option:

UniSlope Board.

Outlet

Horizontal, low profile.

Horizontal, standard outlet.

Sustainability data

Material

Stainless steel

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

Unidrain Stainless Steel Shower Drains

BBA Agrément Certificate

BBA Agrément Certificate

BBA Cert Unidrain

Literature

Wet room / Bathroom Waterproofing for Wall and Floor Low Emission Cert

Wet room / Bathroom Waterproofing for Wall and Floor Low Emission Cert

Waterproofing Installation Service for Wet rooms and Bathrooms

Waterproofing Installation Service for Wet rooms and Bathrooms

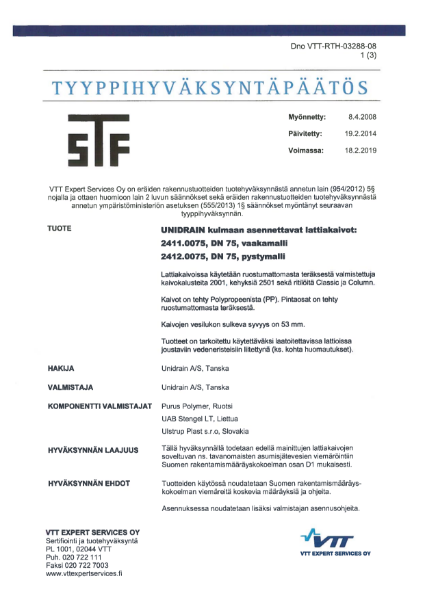

STF Approval Certificate (corner model)

STF Approval Certificate (corner model)

Swedcert Certificate

Swedcert Certificate

WM Wetroom Materials - The Platinum Collection.  Exclusive Range of Wet room Kits, Wet room Drains and Foundation Materials.

WM Wetroom Materials - The Platinum Collection. Exclusive Range of Wet room Kits, Wet room Drains and Foundation Materials.

Similar products from WM | Wetroom Materials

PourFlex Linear - Wet Room Drain

PourFlex Linear - Wet Room Drain

SharpDrain® Polished Concrete - Wet Room Drain

SharpDrain® Polished Concrete - Wet Room Drain

SharpDrain® Pro Linear Tile Insert/ Panel - Wet Room Drain

SharpDrain® Pro Linear Tile Insert/ Panel - Wet Room Drain

SharpDrain® Vinyl Linear - Wet Room Drain

SharpDrain® Vinyl Linear - Wet Room Drain

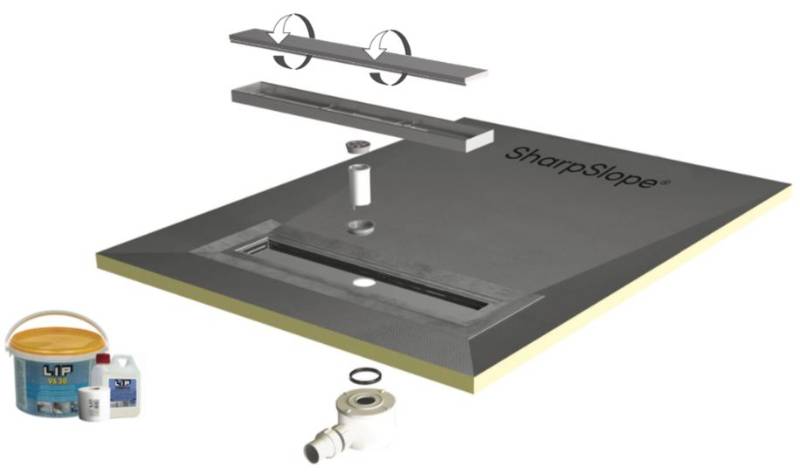

SharpSlope® Linear - Wetroom Tray with Integrated Steel Drain

SharpSlope® Linear - Wetroom Tray with Integrated Steel Drain

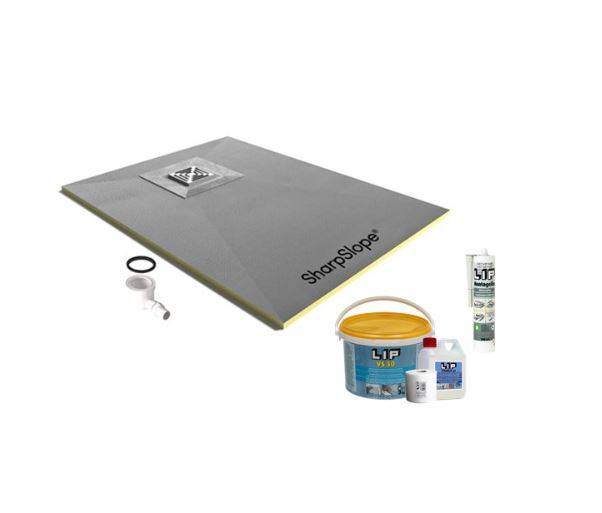

SharpSlope® Square - Wetroom Tray with Integrated Steel Drain
