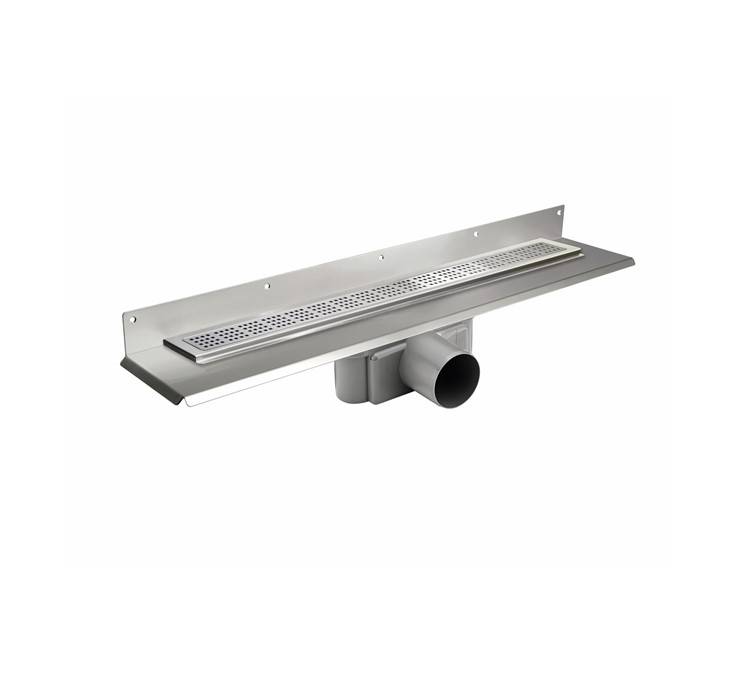

Unidrain 1004 Wall Mounted Floor Drain

Verified by manufacturer 18 days ago

WM | Wetroom Materials Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

Award winning Wall mounted linear shower wet room drain.

Jump to:
+44 (0)1332 840820 Website

Application

Suitable for POD manufacturing, traditional builds, residential and commercial applications.

Description

Wall mounted stainless steel linear drain fixed to wall for a secure installation and to allow for a one way fall. Suitable any floor build-up. Shallow installation depth from 64mm. For larger sizes, please contact manufacturer.


Features and benefits:

  • Full range of sizes.
  • Bespoke service.
  • BBA Approved, pressed stainlesssteel drain with internal drainage slope built in.
  • Large flanges for secure membrane bond.
  • Polypropene outlets with built in BS compliant traps.
  • Range of outlets to drain from 32–102 L/minute.
  • Low profile from 64 mm and vertical outlets available.
  • Interchangeable stainless steel grates, panels, and tiled covers.
  • PVD coloured panels.

General information

Color

Black

Copper

Silver

Gold

Finish

Brushed

PVD

Polished

Manufacturer guidance

Tile Insert available

Material

Stainless steel

Shape

Rectangle

Length

300 mm

600 mm

700 mm

800 mm

900 mm

Show more

Width

150 mm

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_65_52_24_28 Floor channelsPrimary

CAWS

N13/377 Wet room showers

R11/315 Floor drains

R11/5 Floor drains

Specification data - Floor channels

Standard

To BS EN 1253-1. To BS EN 1253-2.

Body

-

Material

Stainless steel.

Configuration

P-trapped.

S-trapped.

Cover or grating

-

Cover or grating type

Anniversario grate and frame.

Classic grate and frame.

Column grate and frame.

Inca grate and frame.

Stripe grate and frame.

Highline cassette and frame.

Highline custom.

Highline panel and frame.

Material

Stainless steel.

Finish

Brushed.

PVD.

Polished.

Tiled.

Execution

Installing gullies

Dimensions

-

Manufacturer guidance

Available in a range of sizes. Consult manufacturer and insert requirements.

Outlet

Horizontal, low profile.

Horizontal, standard outlet.

Sustainability data

Material

Stainless steel

Third party certifications

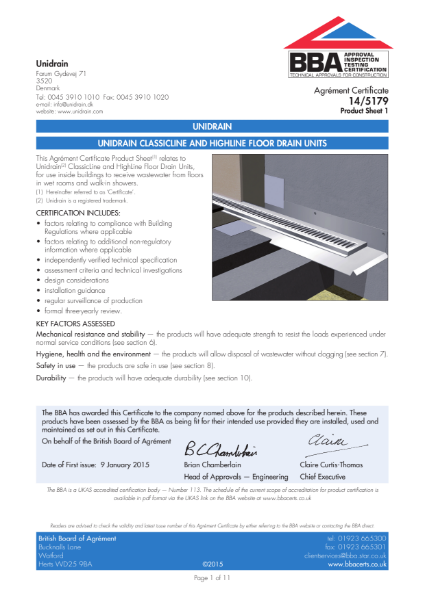

BBA Agrément Certificate

BBA Agrément Certificate

Unidrain Stainless Steel Shower Drains

BBA Agrément Certificate

BBA Agrément Certificate

BBA Cert Unidrain

Literature

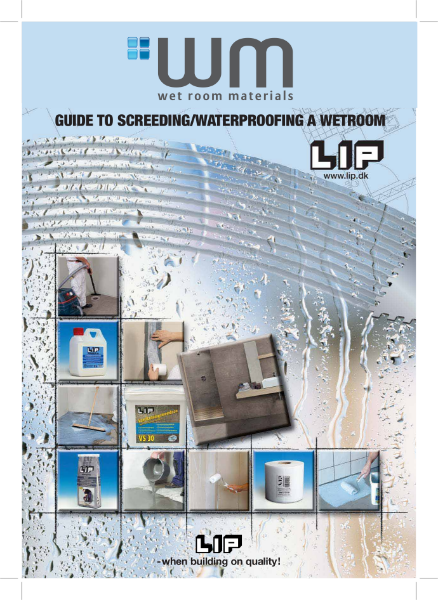

Screeding and Waterproofing a Wet Room  /  Walk In Shower  / Bathroom

Screeding and Waterproofing a Wet Room / Walk In Shower / Bathroom

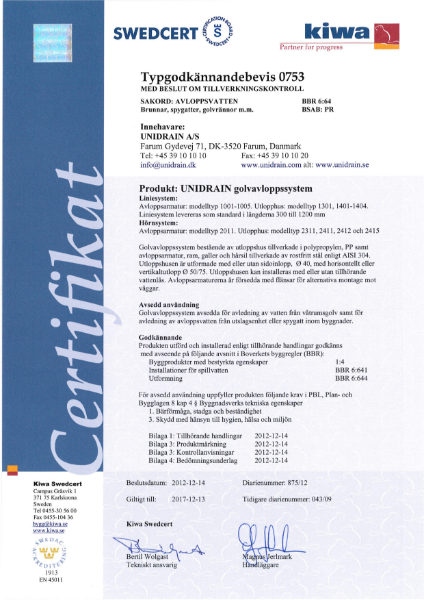

Swedcert Certificate

Swedcert Certificate

Waterproofing Installation Service for Wet rooms and Bathrooms

Waterproofing Installation Service for Wet rooms and Bathrooms

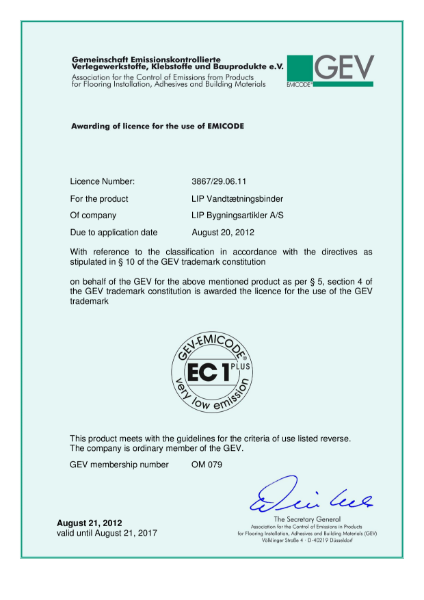

Wet room / Bathroom Waterproofing for Wall and Floor Low Emission Cert

Wet room / Bathroom Waterproofing for Wall and Floor Low Emission Cert

Wet room Kit / Wetroom Former / Walk in Shower - Step by Step Installation Guide

Wet room Kit / Wetroom Former / Walk in Shower - Step by Step Installation Guide

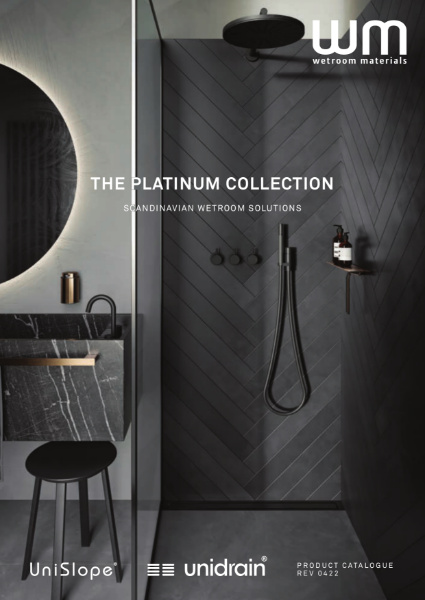

WM Wetroom Materials - The Platinum Collection.  Exclusive Range of Wet room Kits, Wet room Drains and Foundation Materials.

WM Wetroom Materials - The Platinum Collection. Exclusive Range of Wet room Kits, Wet room Drains and Foundation Materials.

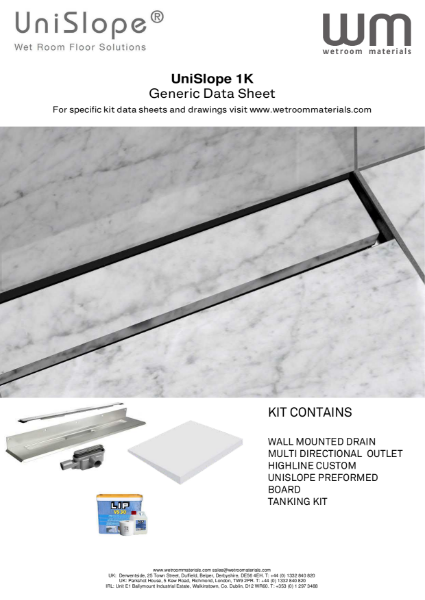

Unislope 1K Highline Custom Wet room Kit - Wall Mounted Linear Drain with Trim Free Tiled Finish. DATA SHEET

Unislope 1K Highline Custom Wet room Kit - Wall Mounted Linear Drain with Trim Free Tiled Finish. DATA SHEET

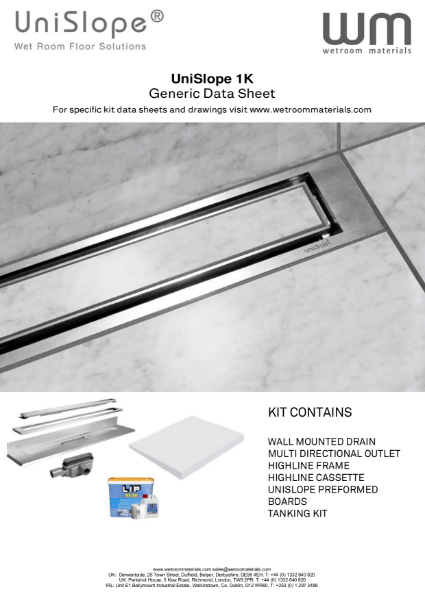

Unislope 1K Highline Cassette / Wetroom Kit with Tile Insert Slot Drain, gradient board and waterproofing kit. DATA SHEET

Unislope 1K Highline Cassette / Wetroom Kit with Tile Insert Slot Drain, gradient board and waterproofing kit. DATA SHEET

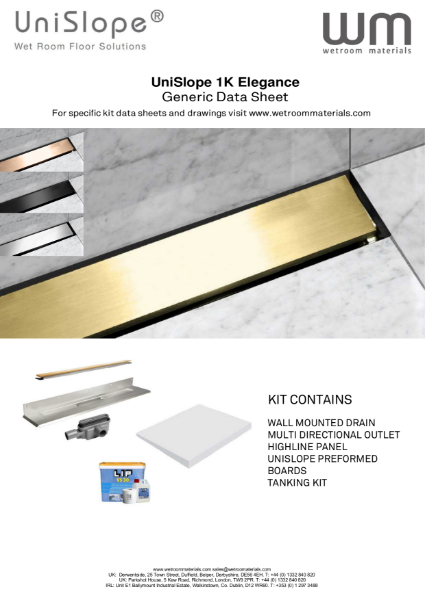

Unislope 1K Elegance Wetroom System - Linear drain, Preformed Tray and Tanking Membrane - Special Finishes

Unislope 1K Elegance Wetroom System - Linear drain, Preformed Tray and Tanking Membrane - Special Finishes

Unislope 1K Classicline Wet room Kit - Walk in Shower Wet room Kit with Shower Drain - DATA SHEET

Unislope 1K Classicline Wet room Kit - Walk in Shower Wet room Kit with Shower Drain - DATA SHEET

Case studies

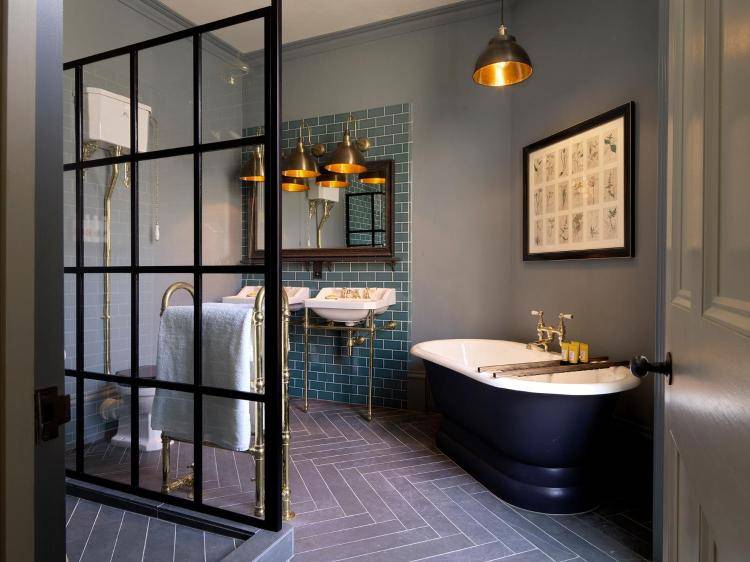

No. 131 Cheltenham

No. 131 Cheltenham

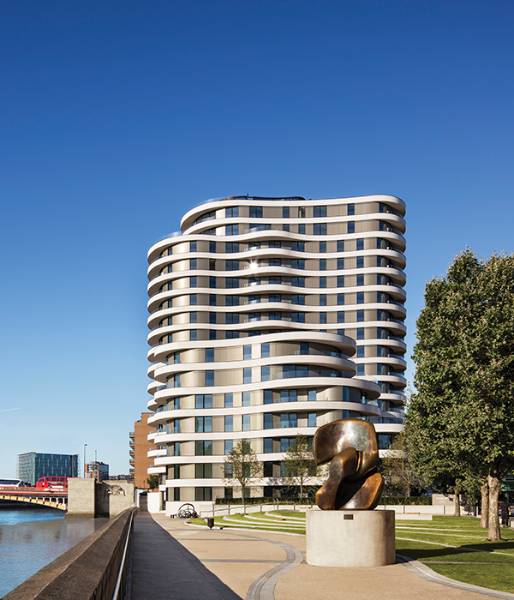

Riverwalk

Riverwalk

Similar products from WM | Wetroom Materials

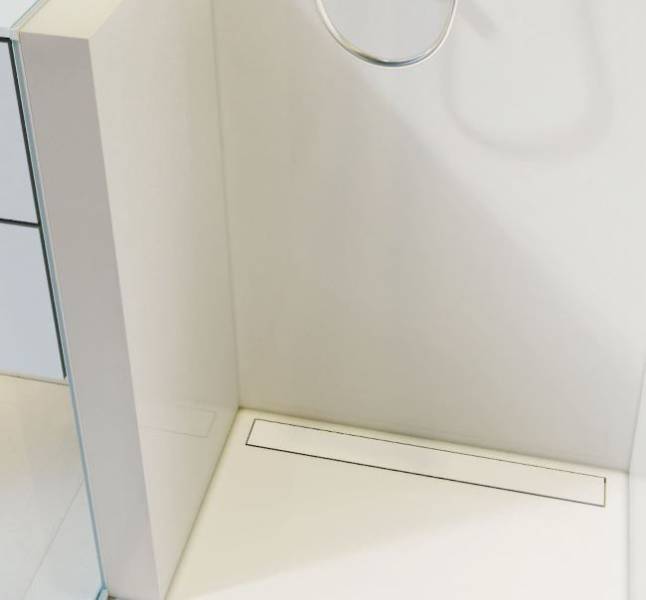

PourFlex Linear - Wet Room Drain

PourFlex Linear - Wet Room Drain

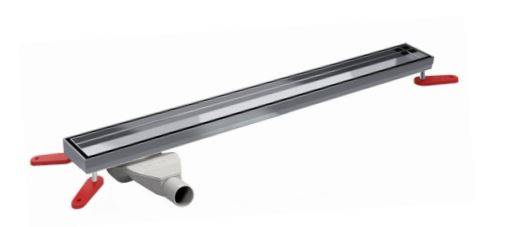

SharpDrain® Polished Concrete - Wet Room Drain

SharpDrain® Polished Concrete - Wet Room Drain

SharpDrain® Pro Linear Tile Insert/ Panel - Wet Room Drain

SharpDrain® Pro Linear Tile Insert/ Panel - Wet Room Drain

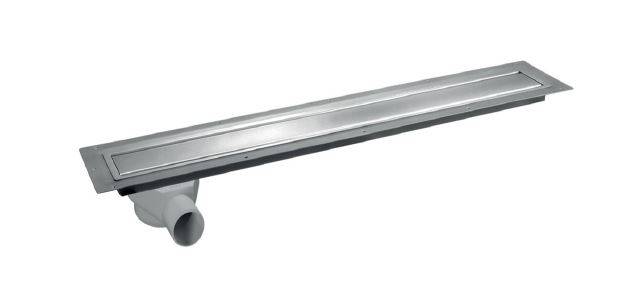

SharpDrain® Vinyl Linear - Wet Room Drain

SharpDrain® Vinyl Linear - Wet Room Drain

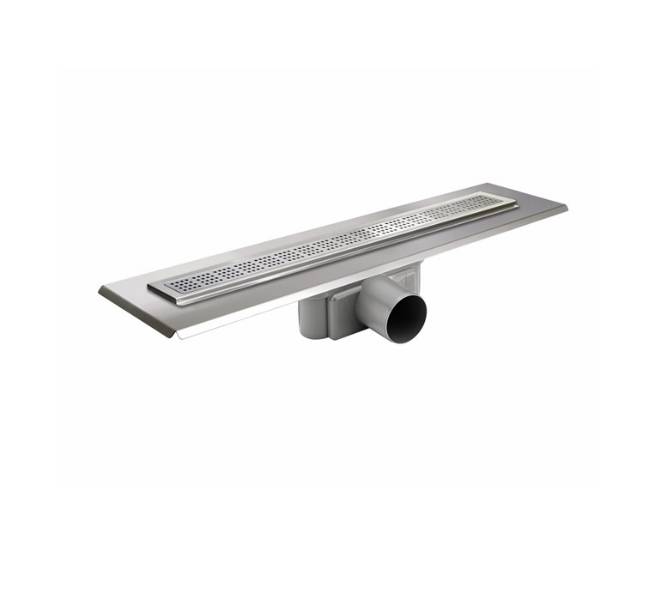

Unidrain 3004 Middle of the Floor Wet room Drain

Unidrain 3004 Middle of the Floor Wet room Drain

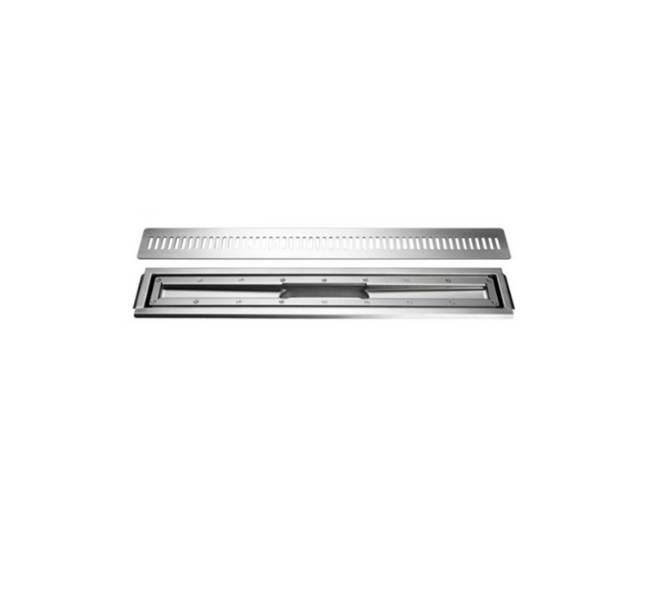

Unidrain Vinyl Floor Drain

Unidrain Vinyl Floor Drain

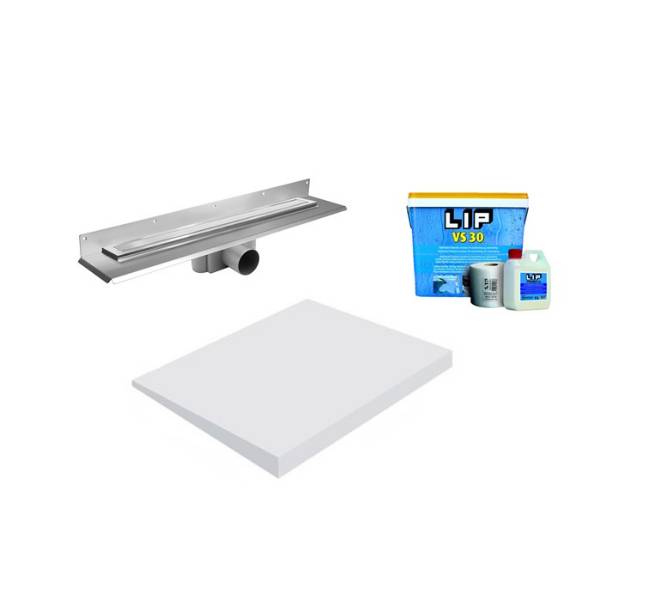

Unislope 1K Wetroom System - Wet Room Tray

Unislope 1K Wetroom System - Wet Room Tray

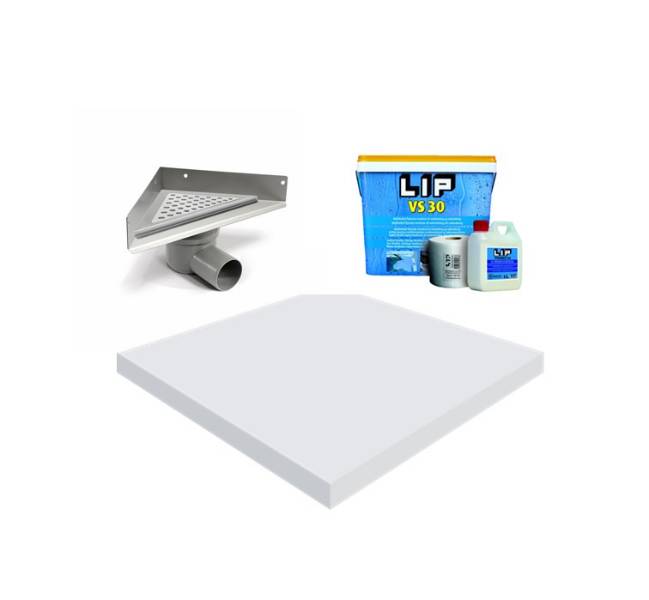

Unislope 2K Wetroom System

Unislope 2K Wetroom System

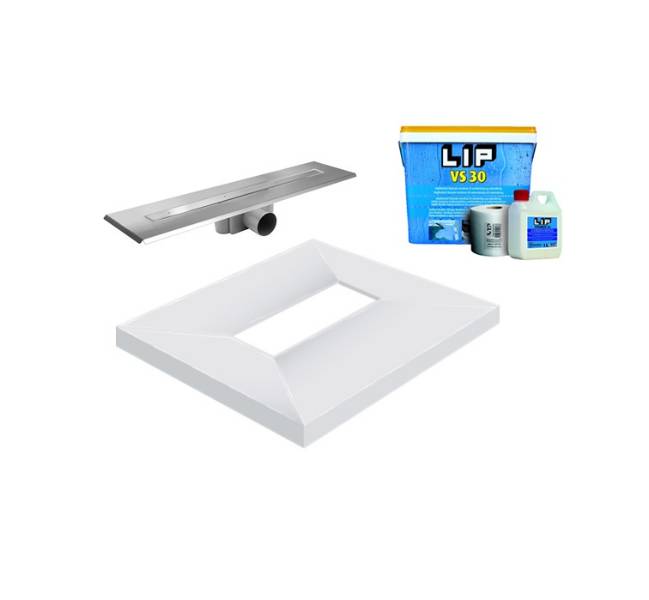

Unislope 4K Wetroom System
