SharpDrain® Polished Concrete - Wet Room Drain
Verified by manufacturer 2 months ago
SharpDrain® Polished Concrete (SDPC.0500)
SharpDrain® Polished Concrete (SDPC.0500)
A wet room drain designed for polished concrete floors.
Application
Suitable for wet rooms with low floor depths.
Description
SharpDrain® Polished Concrete is a wet room drain designed for polished concrete floors. It does not have a traditional wet room drain flange which allows for continuous concrete depth for greater strength. Concrete can be poured into the insert at a thickness of 25 mm to create a concrete finish. It is supplied with installation feet and a low profile outlet which can be rotated for easy installation.
Features and benefits:
- Supplied with a ten year guarantee.
- Installation feet included.
- Suitable for polished concrete flooring.
- Outlet can be rotated for easy installation.
General information
Color | Silver |
Finish | Brushed |
Material | Stainless steel Plastic |
Shape | Rectangle |
Length | 500 mm Guidance for specification option: 480 mm visual length. 700 mm Guidance for specification option: 680 mm visual length. |
Width | 83 mm |
Height | 100 mm Manufacturer guidanceDrain depth. |
Warranty description | Ten year |
Uniclass | |
CAWS | R11/315 Floor drains R11/5 Floor drains |
Specification data - Floor channels
Standard | To BS EN 1253. |
Body | |
Material | Stainless steel. |
Cover or grating | |
Cover or grating type | Solid covers. |
Material | Stainless steel.Guidance for specification option: Concrete can be poured into the insert at a thickness of 25 mm to create a concrete finish. |
Finish | Brushed. |
Integral accessories | Installation feet. |
Capacity | 48 L/min. |
Dimensions | 500 x 100 x 83 mm. Guidance for specification option: L x D x W. |
Outlet | Rotating low profile. |
Sustainability data
Material | Stainless steel Plastic |
Literature
SDPC.0500 Datasheet

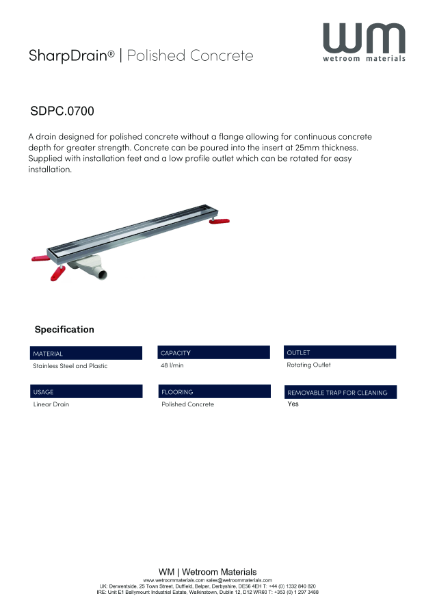

SDPC.0700 Datasheet
