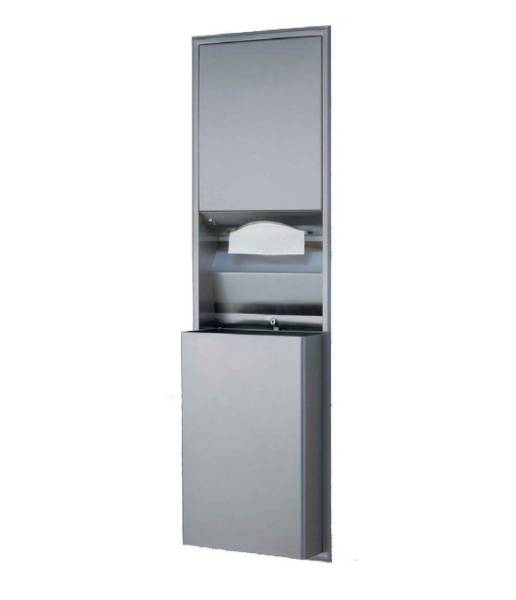

Semi-Recessed Convertible Paper Towel Dispenser/ Waste Receptacle B-3942
Verified by manufacturer 10 months ago
Semi-recessed folded paper towel dispenser with 12 gallon (45.5 L) waste bin.
Application
Recess mounted.
Description
Unit includes convertible folded paper towel module and 12 gallon waste receptacle.
Interchangeable with:
- 368-60 Interchangeable Receptacle, 18 gl. (68 L);
- 3974-250 Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light;
- 3961-50 “touch-free” Pull Towel Dispenser Module.
Features and benefits:
- Satin-finish stainless steel.
- Seamless bevelled flange.
- Dispenses 600 C-fold or 800 multi-fold towels.
- Removable waste receptacle locked into cabinet.
- Receptacle is 8″ (205 mm) deep with capacity of 12 gal. (45.5 L); extends 4 1/8″ (105 mm) from wall.
- Skirt for semi-recessing.
- Field conversion made easy without replacing existing cabinets in wall.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 1429 mm Guidance for specification option: Recess 406 x 1390 x 57 mm. |
Width | 443 mm |
Height | 105 mm |
Warranty description | Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Recess wall-mounted. |
Towels | |
Towel type | Folded. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Waste bin.Guidance for specification option: 45.5 L 3974-250 Convertible automatic universal roll paper towel dispenser module equipped with LED light.3961-50 Touch-free, pull towel dispenser module.3944-130 TowelMate®.3944-134 LinerMate®.368-60 Interchangeable receptacle. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

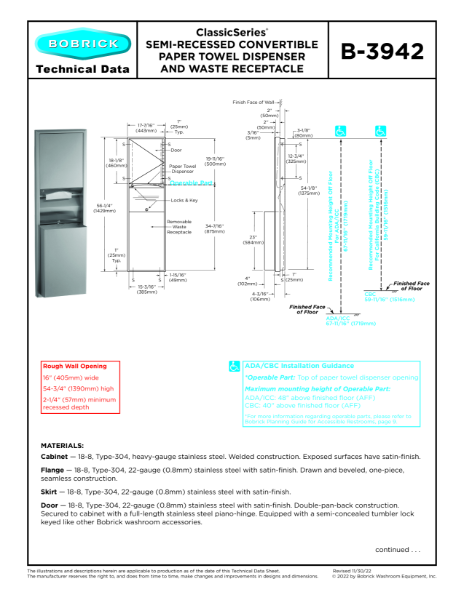

ClassicSeries® Semi-Recessed Convertible Paper Towel Dispenser and Waste Receptacle - B-3942

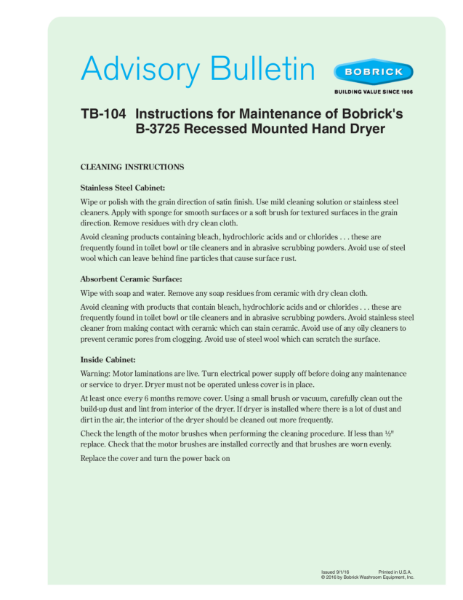

Advisory Bulletin TB-104 Instructions for Maintenance of Bobrick's B-3725 Recessed Mounted Hand Dryer

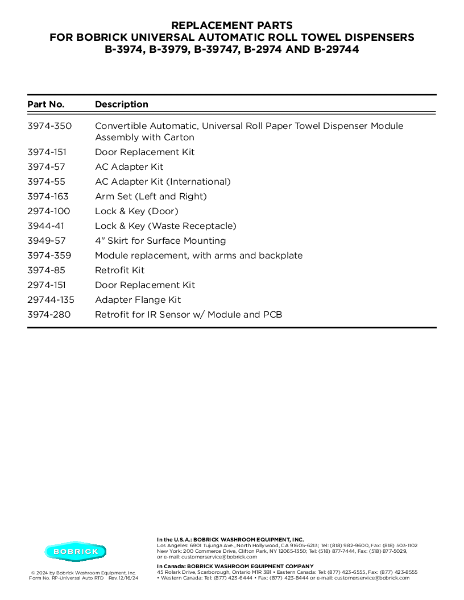

Replacement Parts for Bobrick Universal Automatic Roll Towel Dispensers - B-3974, B-39747, B-3979, B-2974 and B-29744
TB-88 Advisory Bulletin
