NBS Source

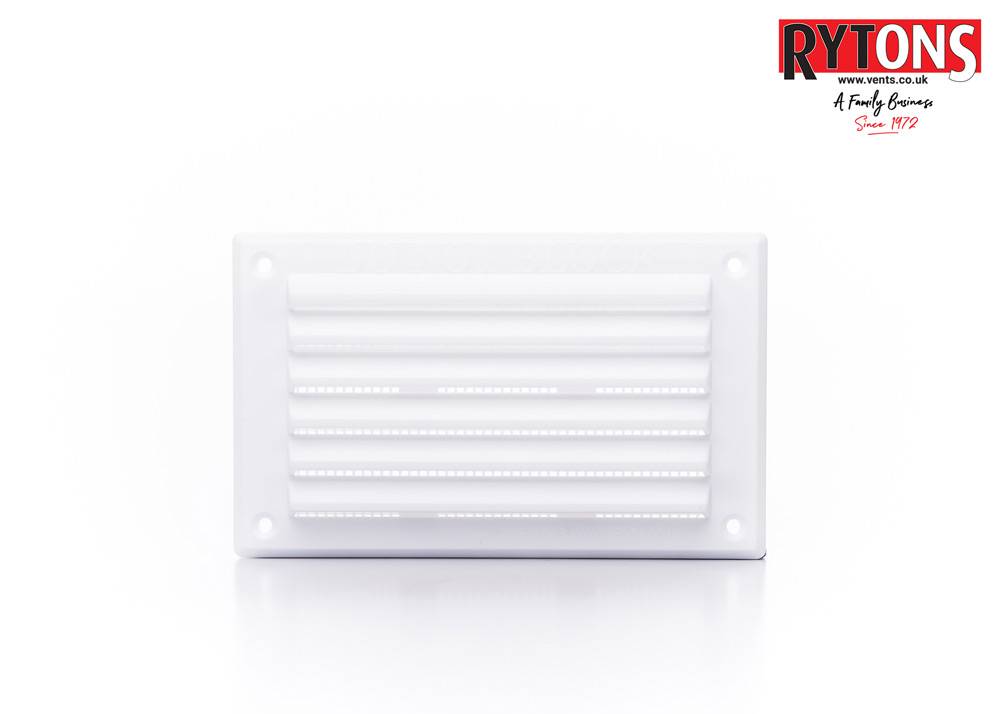

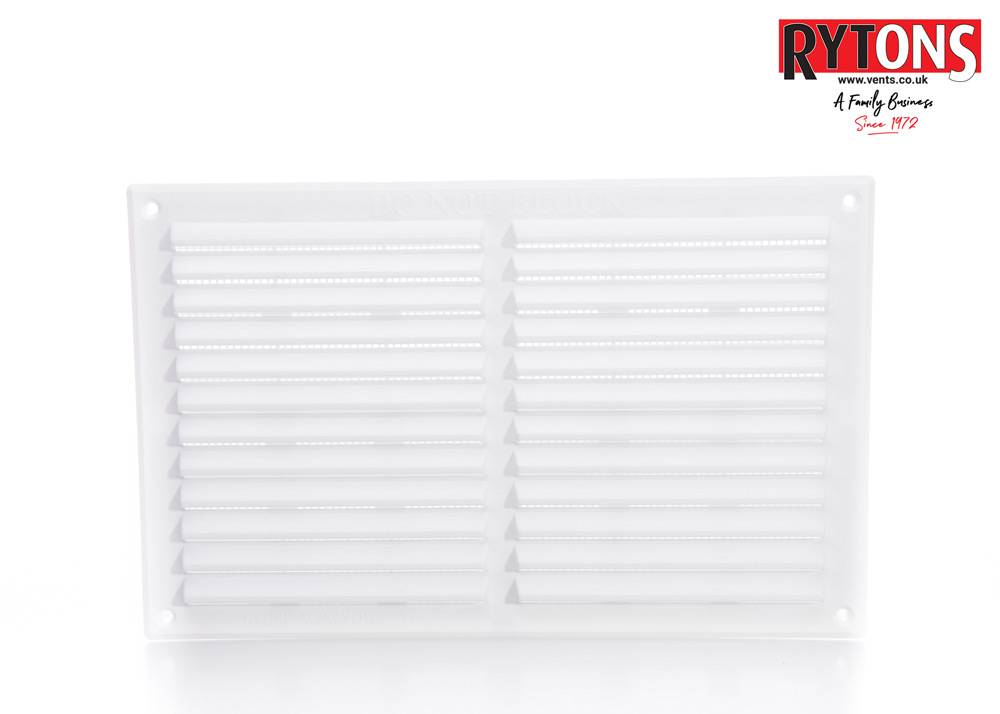

Rytons Plastic Louvre Ventilator with Flyscreen Range
Compare variants

Application

A range of plastic fixed open louvre grilles with detachable flyscreens, suitable for internal and external use.

Description

Plastic louvre grille with detachable flyscreen.


Features and benefits:

  • Flyscreen helps prevent the ingress of insects and spiders, as well as reducing light and draughts.
  • Fixed open louvres allow a high air flow.
  • Embossed with 'DO NOT BLOCK'.
  • UV-stabilized to slow down the effects of sunlight.
  • Made in Britain.

General information

Color

White

White flyscreen.

Beige

White flyscreen.

Black

White flyscreen.

Brown

White flyscreen.

Orange

White flyscreen.

Material

Plastic

UV-stabilized high-impact polystyrene.

Shape

Rectangle

Size

Varies with product reference.

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/17 Ventilation ducts in external walling

F30/171 Ventilation ducts in external walling

F30/165 Gratings/ ventilators in internal walling

F30/16 Gratings/ ventilators in internal walling

Product range

Rytons Louvre Ventilators

Specification data - Ventilation gratings Enhanced data

Material

Plastic.

UV-stabilized high-impact polystyrene.

Colour

Buff/ Sand.

Terracotta.

White.

Accessories

None.

LV74F louvre and spigot.

Use Rytons 6×6 Louvre Backplate with 97 mm dia. Spigot LV4BACKWH to connect to 100 mm dia. ducting.

Cavity liners.

Size: (overall length x height)

155 x 94 mm.

LV25F. To provide 2567 mm² (25.67 cm²) per unit free area.

Environmental information

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable
