Application

For background ventilation.


Description

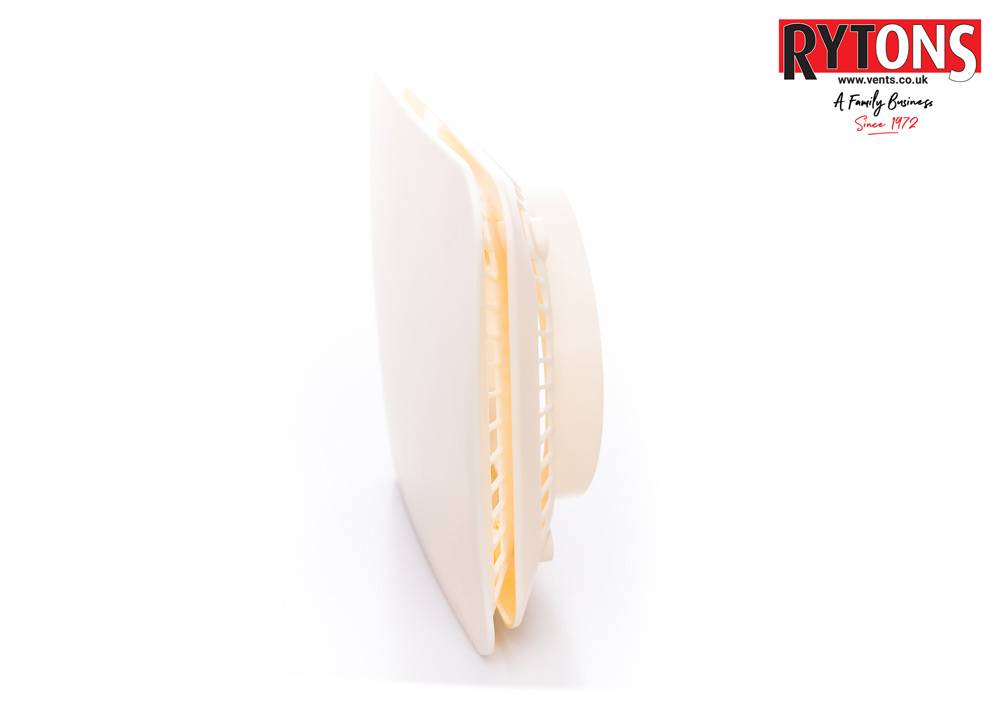

Plastic, square, adjustable ventilation panel.


Features and benefits:

  • Manually adjusted, allowing full control over the amount of ventilation let into the room.
  • Unique design disperses air evenly to reduce draughts.
  • End plate may be painted or wallpapered to match room décor.
  • Connects to Rytons 125 mm AirCore Tubes (AC10TUBE and AC7TUBE).

General information

Color

Cream

Guidance for specification option:

Magnolia (may be painted or wallpapered to match décor).


Material

Plastic

Guidance for specification option:

High impact styrene.

Size

172 x 172 x 122 mm

Guidance for specification option:

(l x h x dia; male spigot).

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/16 Gratings/ ventilators in internal walling

F30/165 Gratings/ ventilators in internal walling

U90/360 Air transfer grilles

U90/360 Air transfer grilles

U90/380 Room extract grilles

U90/380 Room extract grilles

U90/505 Supply air diffusers

U90/505 Supply air diffusers

Product range

Rytons Hit and Miss Ventilators

Specification data - Ventilation gratings

Work sizes

172 x 172 mm.

Material

Plastic.

Guidance for specification option:

High impact styrene.


Colour

Magnolia.

Guidance for specification option:

(May be painted or wallpapered to match décor).

Accessories

None.

AC-SCREWPACK.

Guidance for specification option:

Fixing screws.

None.

AC-SCREWPACK.

Guidance for specification option:

Fixing screws.

Free area

7000 mm².
