Application

For boiler, stove and fire ventilation.


Description

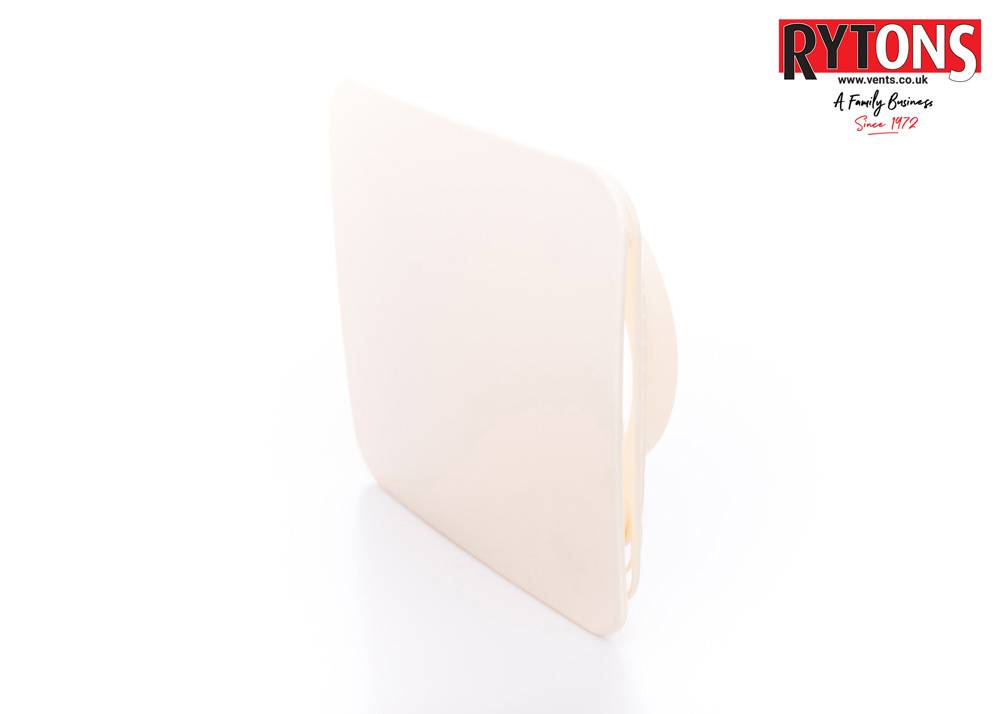

Plastic, square, fixed open louvre panel.


Features and benefits:

  • Unique design disperses air evenly into the room.
  • Face plate may be painted or wallpapered to match room décor.
  • Connects to Rytons 125 mm AirCore Tubes (AC10TUBE and AC7TUBE).

General information

Shape

Square

Color

Cream

Material

Plastic

Guidance for specification option:

High impact styrene.


Size

172 x 172 mm

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/16 Gratings/ ventilators in internal walling

F30/165 Gratings/ ventilators in internal walling

U90/360 Air transfer grilles

U90/360 Air transfer grilles

U90/380 Room extract grilles

U90/380 Room extract grilles

U90/505 Supply air diffusers

U90/510 External exhaust grilles

U90/505 Supply air diffusers

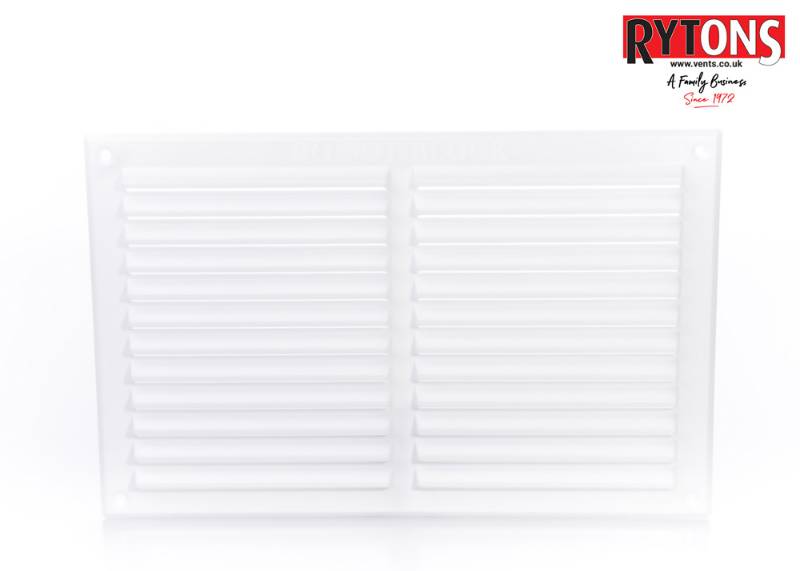

Product range

Rytons Louvre Ventilators

Specification data - Ventilation gratings

Work sizes

172 x 172 mm.

Material

Plastic.

Guidance for specification option:

High impact styrene.

Colour

Magnolia.

Guidance for specification option:

May be painted or wallpapered.

Accessories

None.

AC-SCREWPACK.

Guidance for specification option:

Fixing screws.

Free area

12 000 mm².
