Rytons Metal Louvre Ventilator Range

Verified by manufacturer 3 months ago

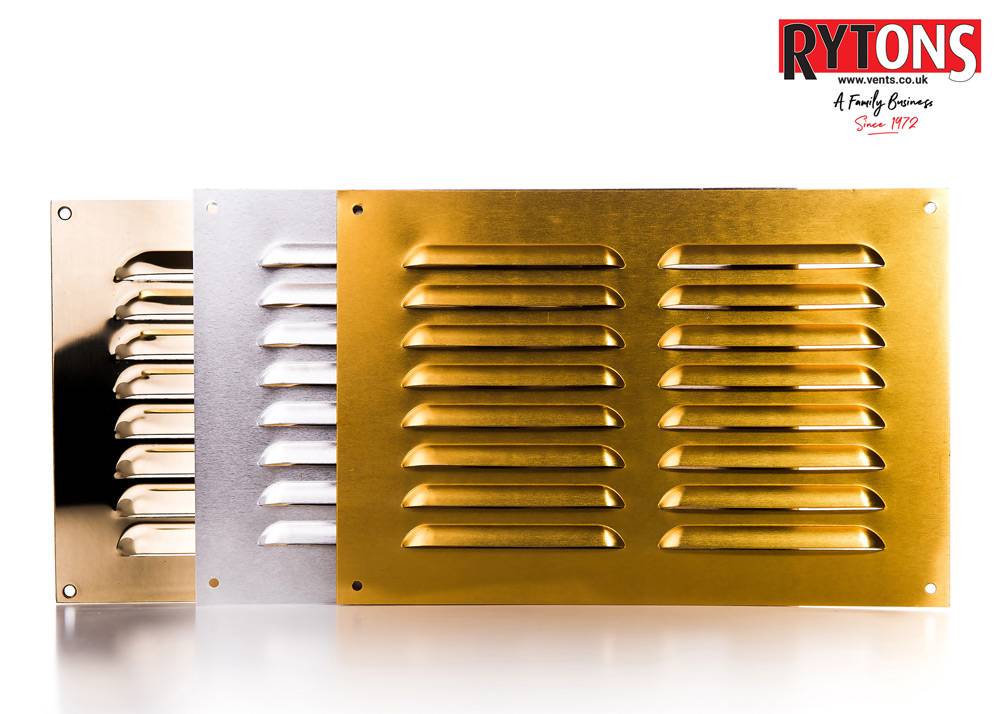

LV93ALUM – 9×3 Aluminium Louvre Ventilator

Rytons Building Products Ltd Variant:

Metal louvre ventilator.

Jump to:
+44 (0)1536 511874 Website

Application

A range of fixed open metal louvre ventilators for rooms and cupboards, suitable for internal and external use.

Description

Metal louvre ventilator.


Features and benefits:

  • Durable.
  • Slim.
  • Variety of finishes available.
  • Made in Britain.

General information

Finish

Powder coated

Guidance for specification option:

Powder-coating available in a range of colours and finishes through bespoke manufacturers service.

Material

Aluminium

Brass

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/171 Ventilation ducts in external walling

F30/17 Ventilation ducts in external walling

F30/165 Gratings/ ventilators in internal walling

F30/16 Gratings/ ventilators in internal walling

Product range

Rytons Louvre Ventilators

Specification data - Ventilation gratings

Work sizes

242 x 89 mm.

Guidance for specification option:

To provide 3300 mm² (33 cm²) per unit free area.

Material

Aluminium.

Guidance for specification option:

0.7–0.8 mm (22 gauge) aluminium with a melting point of 500°C.


Colour

Guidance for specification option:

Self-colour metal in a range of colours.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Recyclable
