Rytons Plastic Louvre Ventilator Range
Verified by manufacturer 3 months ago
LV47: 6x3
LV47: 6x3

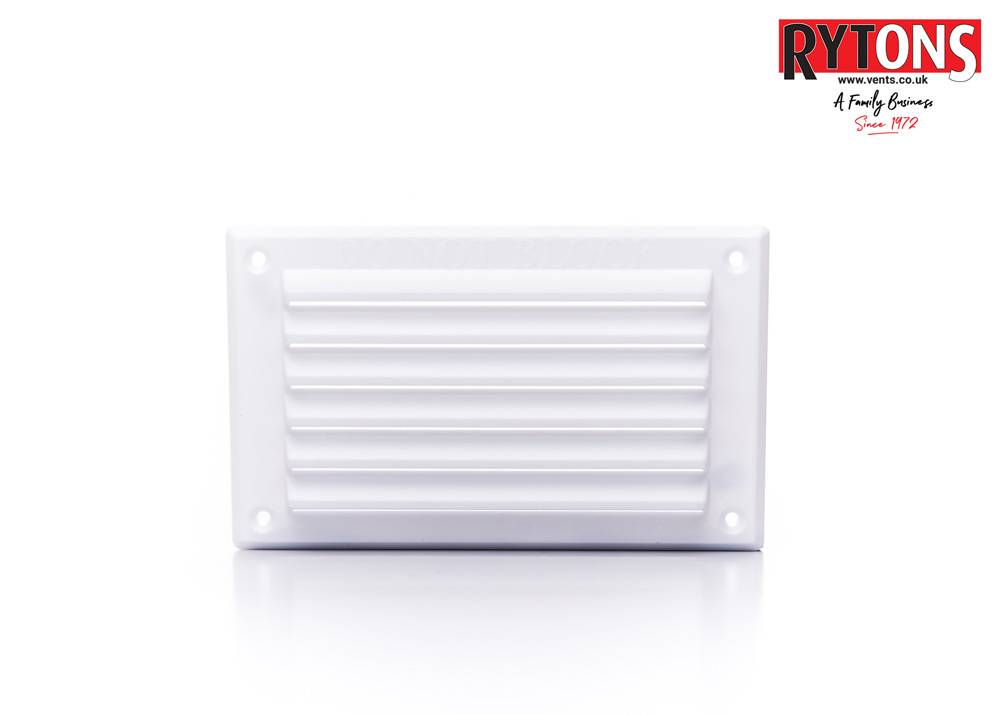

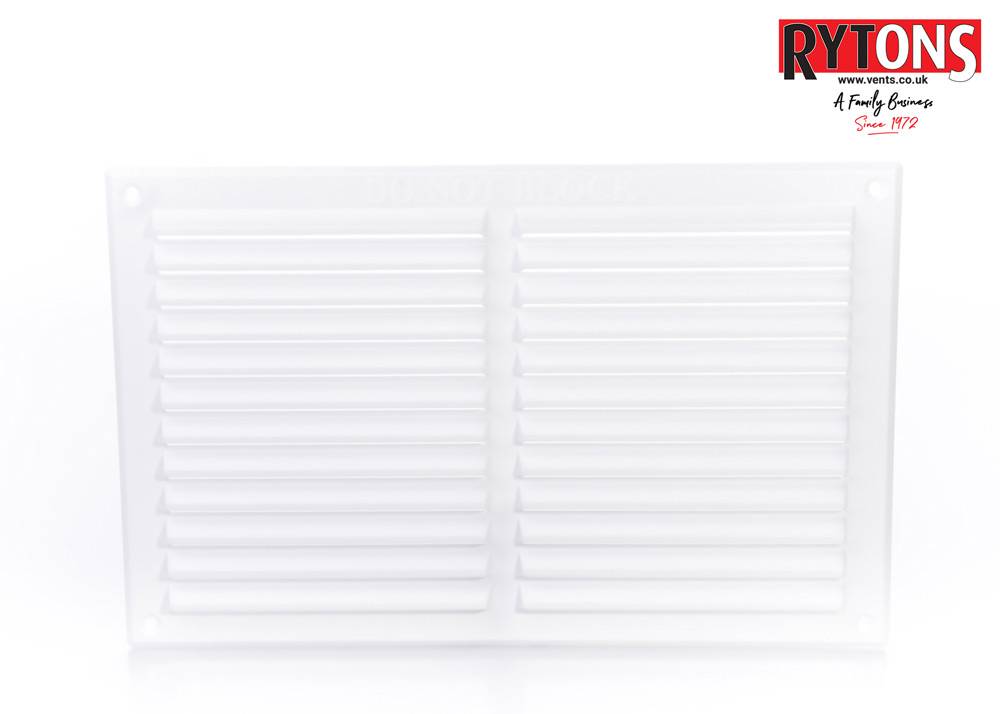

Plastic fixed open louvre grille.
Application
A range of plastic fixed open louvre ventilators suitable for internal and external use.
Description
Plastic fixed open louvre grille.
Features and benefits:
- Allow a high air flow.
- Embossed with 'DO NOT BLOCK'.
- UV-stabilized to slow down the effects of sunlight.
- Made in Britain.
General information
Color | Black Brown Red White Beige |
Material | Plastic Guidance for specification option: UV-stabilized high-impact polystyrene. |
Shape | Rectangle |
Size | Guidance for specification option: Varies with product reference. |
Uniclass | |
CAWS | F30/16 Gratings/ ventilators in internal walling F30/165 Gratings/ ventilators in internal walling F30/171 Ventilation ducts in external walling F30/17 Ventilation ducts in external walling |
Product range |
Specification data - Ventilation gratings
Material | Plastic.Guidance for specification option: UV-stabilized high-impact polystyrene. |
Colour | Buff/ Sand.Terracotta.White. |
Size: (overall length x height) | 155 x 94 mm. Guidance for specification option: LV47. To provide 4748 mm² (47.48 cm²) per unit free area. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
