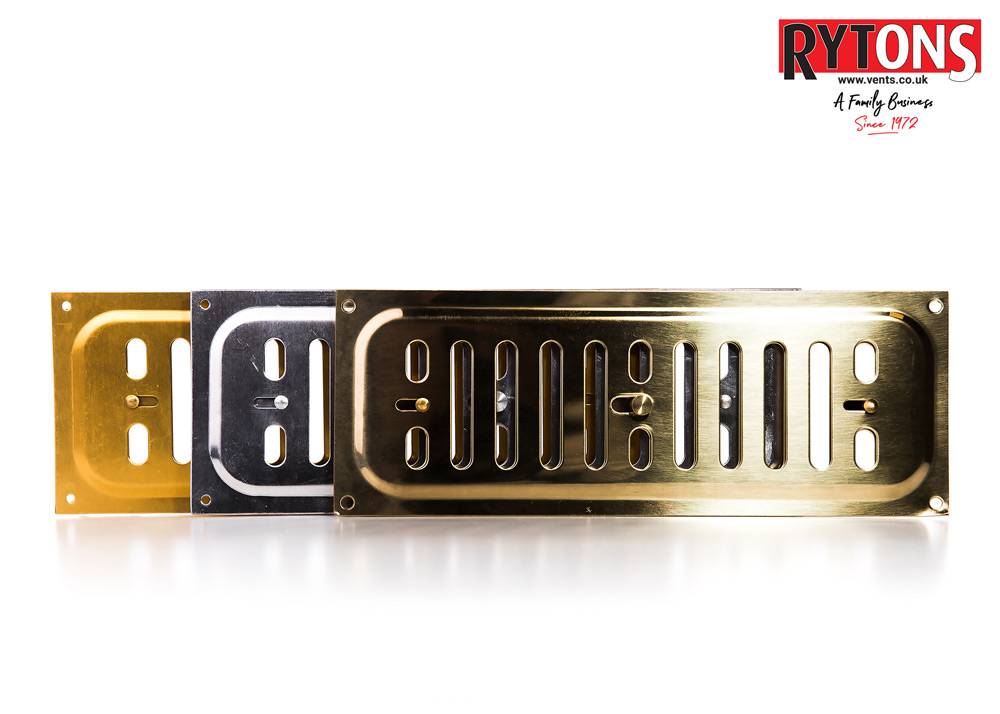

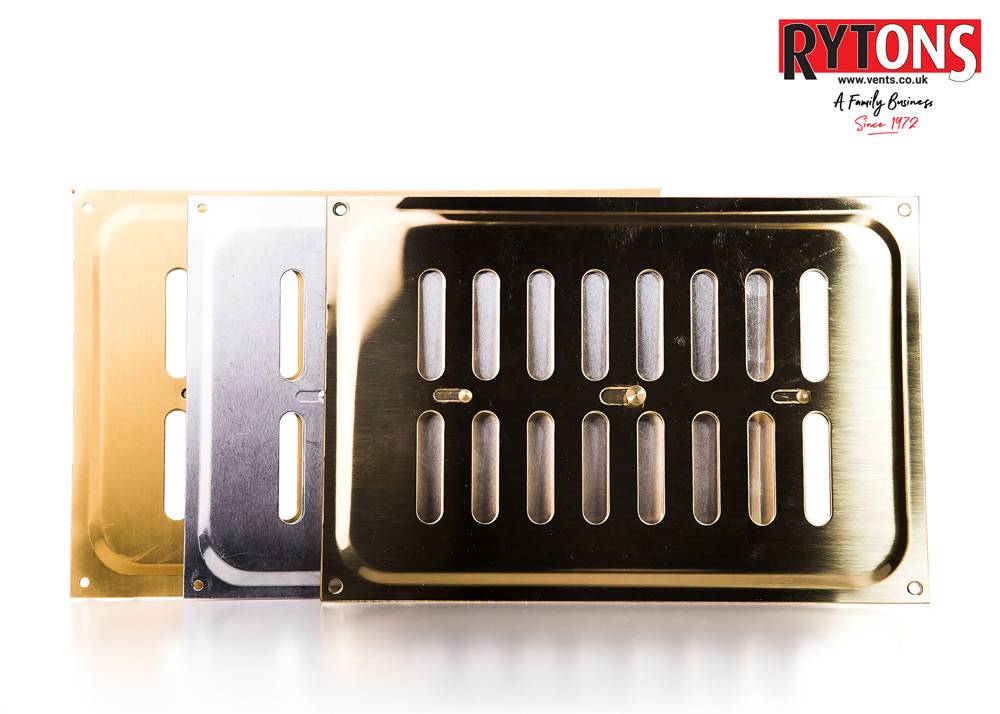

Rytons Metal Hit & Miss Ventilator Range

Verified by manufacturer 25 days ago

HM93ALUM – Rytons 9×3 Aluminium Hit & Miss Ventilator

Rytons Building Products Ltd Variant:

Metal 'hit and miss' grille.

Jump to:
+44 (0)1536 511874 Website

Application

Hit and Miss Ventilators must not be used to supply combustion and cooling air to boilers, stoves and fires.

Description

Metal 'hit and miss' grille.


Features and benefits:

  • Manually adjusted for controllable ventilation.
  • Durable and slim, with a variety of finishes available.


General information

Finish

Powder coated

Guidance for specification option:

Powder coating available in a range of colours and finishes using bespoke service.

Material

Aluminium

Guidance for specification option:

0.8 mm (20 gauge).

Brass

Guidance for specification option:

Anodized or polished.

Size

242 x 89 mm

Guidance for specification option:

Overall maximum length x height.

242 x 165 mm

Guidance for specification option:

Overall maximum length x height.

242 x 242 mm

Guidance for specification option:

Overall maximum length x height.

305 x 305 mm

Guidance for specification option:

Overall maximum length x height.

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/16 Gratings/ ventilators in internal walling

F30/165 Gratings/ ventilators in internal walling

Product range

Rytons Hit and Miss Ventilators

Specification data - Ventilation gratings

Work sizes

242 x 89 mm.

Material

Aluminium.

Colour

Guidance for specification option:

Self-colour aluminium or brass as standard.


Free area

3741 mm².

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom
