Application

For face fixing, manually adjusted to give the occupier full control over the amount of ventilation let into the internal space.

Description

Plastic, rectangular, grille ventilator, compliant with BS 5250.


Features and benefits:

  • Adjustable background ventilator for rooms.
  • Small space and cupboard ventilator.
  • Flush face, slim design and concealed fixings give a neat unobtrusive appearance.
  • Integral flyscreen helps prevent the ingress of insects and spiders as well as reducing light and draughts.
  • UV stabilized to slow down the effects of sunlight.

General information

Color

White

Material

Plastic

UV stabilized high impact polystyrene.

Size

155 x 95 mm

HM22F.


271 x 95 mm

HM43F.


271 x 171 mm

HM85F.


271 x 247 mm

HM123F.

Uniclass

Pr_30_59_96_93 Ventilation gratingsPrimary

CAWS

F30/16 Gratings/ ventilators in internal walling

F30/165 Gratings/ ventilators in internal walling

U90/360 Air transfer grilles

U90/360 Air transfer grilles

U90/380 Room extract grilles

U90/380 Room extract grilles

U90/505 Supply air diffusers

U90/505 Supply air diffusers

Product range

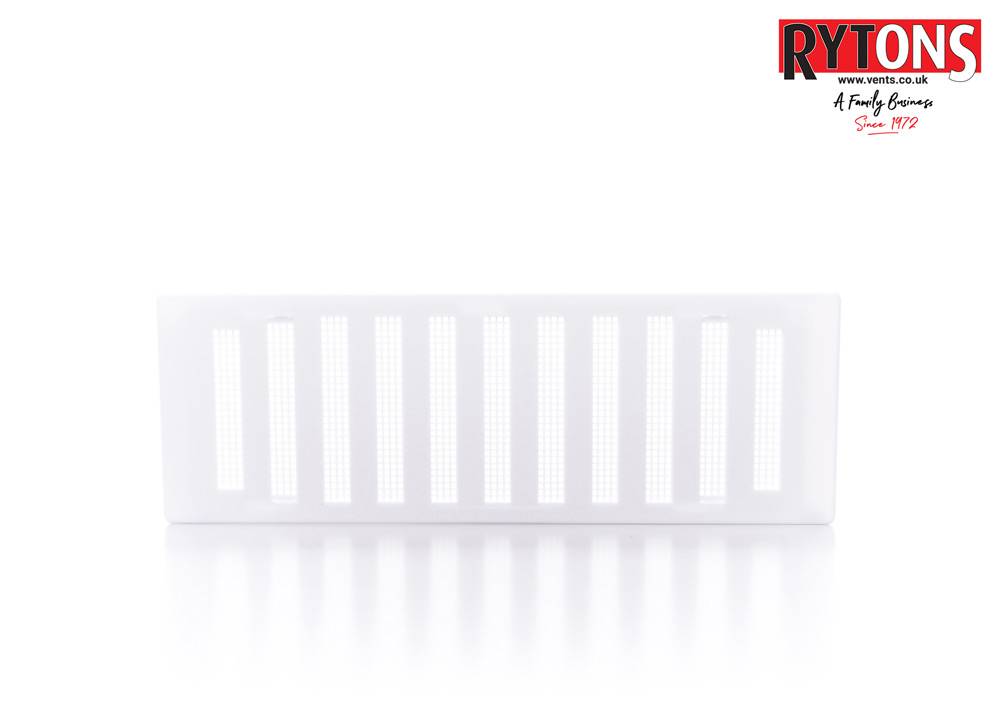

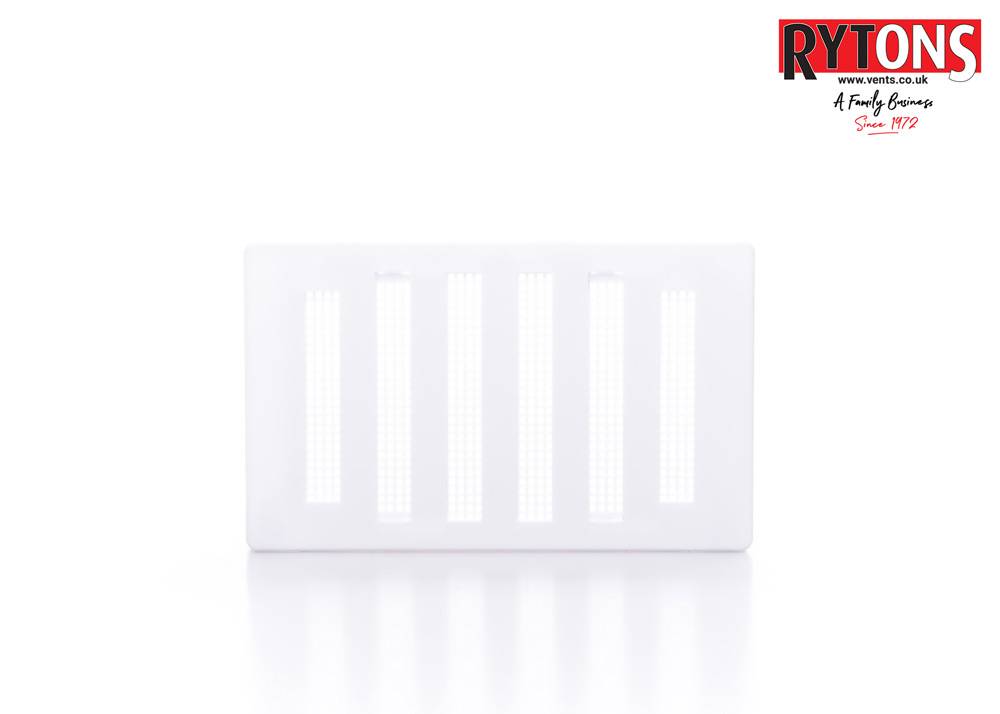

Rytons Hit and Miss Ventilators

Specification data - Ventilation gratings

Standard

BS 5250.

Work sizes

155 x 95 mm.

Material

Plastic.

UV stabilized high impact polystyrene.

Colour

White.

Free area

2182 mm².
