Rytons 6×6 Louvre & Backplate Set Range
Verified by manufacturer 5 days ago
RD4LVBG – Rytons 6×6 Louvre and 97 mm diameter backplate set (100 mm diameter range)
RD4LVBG – Rytons 6×6 Louvre and 97 mm diameter backplate set (100 mm diameter range)

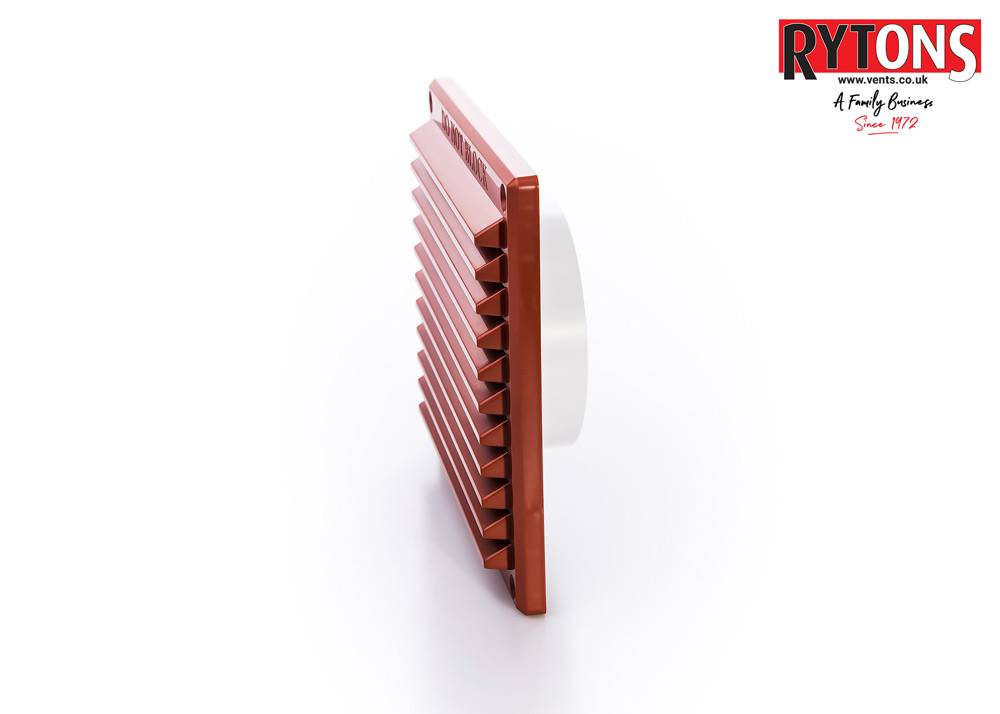

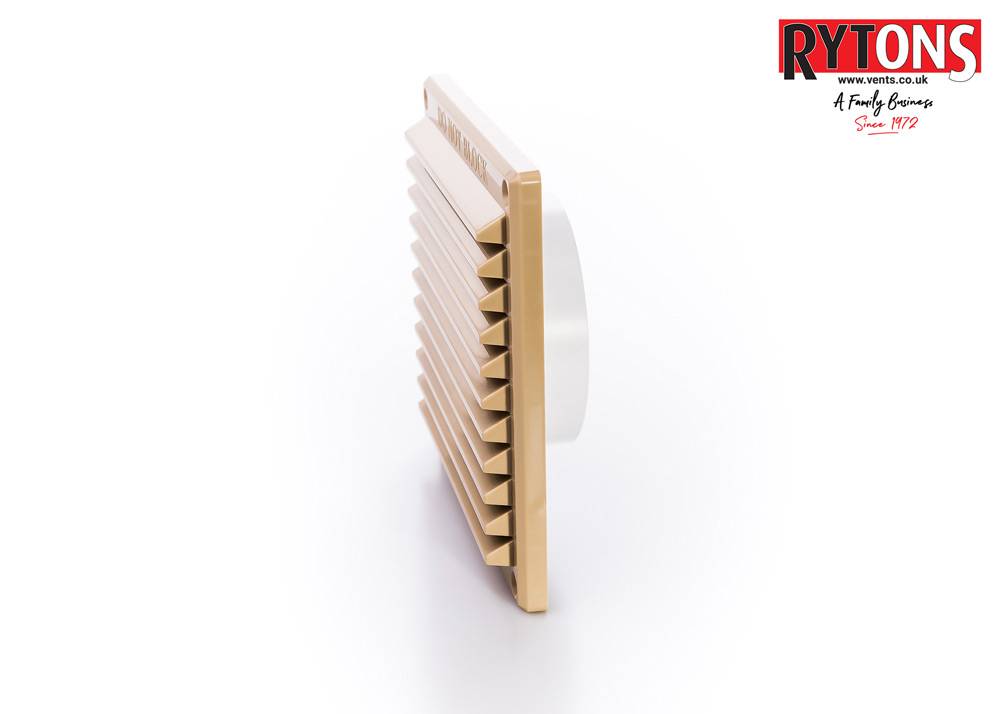

Plastic, low-profile fixed open louvre grille with a spigot for rigid pipe and flexible ducting.
Application
Suitable for internal and external use.
This item is a plastic component, and therefore not suitable for use within the external walls of high-rise buildings requiring non-combustible materials.
Description
Plastic, low-profile fixed open louvre grille with spigot for rigid pipe and flexible ducting.
Features and benefits:
- UV-stabilized to slow down the effects of sunlight.
- Made in Britain.
General information
Color | Black Brown Cream Orange White |
Material | Plastic Guidance for specification option:
|
Size | Guidance for specification option: (l x h; includes various sizes for diameter male spigot). |
Length | 166 mm |
Height | 160 mm |
Uniclass | |
CAWS | F30/171 Ventilation ducts in external walling F30/17 Ventilation ducts in external walling F30/16 Gratings/ ventilators in internal walling F30/165 Gratings/ ventilators in internal walling |
SKU Code | RD4LVBG, RD5LVBG, RD6LVBG |
Product range |
Specification data - Ventilation gratings
Material | Plastics. Guidance for specification option:
|
Colour | Bespoke. Guidance for specification option: Consult manufacturer for a range of colours available, including colour-matching. Black. Brown. Buff/ Sand. Terracotta. White. |
Accessories | Rytons Rigid Pipe 358 mm L. Guidance for specification option: RD435RND. Rytons Rigid Pipe 1 m L. Guidance for specification option: RD41RND. Rytons Rigid Pipe 1.5 m L. Guidance for specification option: RD415RND. Rytons Rigid Pipe 2 m L. Guidance for specification option: RD42RND. Rytons Threaded Hose Connector Female. Guidance for specification option: RD4HCF. Rytons PVC 100 mm Diameter RytHose Range. Rytons PVC 125 mm Diameter RytHose Range. Rytons Fire Resistant RytHose 100 mm diameter. Rytons Semi Rigid Aluminium RytHose 102 mm diameter. Guidance for specification option: FSRA41.5M. Rytons Semi Rigid Aluminium RytHose 127 mm diameter. Rytons Rigid Pipe 1 m L. Guidance for specification option: RD51RND. Rytons Fire Resistant RytHose. Guidance for specification option: FAD510M. Rytons Rigid Pipe 360 mm L. Guidance for specification option: RD636RND. Rytons PVC 150 mm Diameter RytHose Range. Rytons Fire Resistant RytHose 150 mm diameter. Guidance for specification option: FAD610M. Rytons Semi Rigid Aluminium RytHose 152 mm diameter. Guidance for specification option: FSRA61.5M. |
Free area | 7300 mm². |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | Recyclable |
