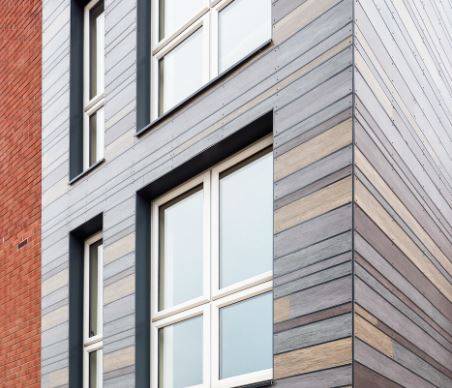

Rockpanel Mineral Fibre Cladding

Verified by manufacturer over a year ago

Rockpanel Lines - 8 mm

Taylor Maxwell Variant:

Prefabricated compressed mineral wool cladding boards with thermo-setting synthetic binders.

Jump to:
0203 794 9377 Website

Application

External façade installations.

Description

Prefabricated compressed mineral wool cladding boards with thermo-setting synthetic binders offer the longevity of stone and the added flexibility of being as easy to work with as wood, in one product. These distinctive properties result in highly durable, workable, and low maintenance cladding boards and are a direct alternative to fibre cement cladding panels.


In addition to the vast range of standard colours available (almost all RAL and NCS colours), these mineral fibre boards are also available in a range of special finishes such as Rockpanel Woods, Stone, Metallic and Chameleon - where the colour of the boards change depending on the viewers vantage point and the amount of natural light available. These flexible and robust boards can be applied easily and can even be shaped, curved and perforated.


The European Reaction to Fire classification system (Euro classes) of all Rockpanel products is based on testing with non-combustible mineral wool insulation. For high-rise buildings and high-risk buildings, Rockpanel recommends the application of non-combustible (Euroclass A1-A2) cladding and insulation.


Features and benefits:

  • High performance when assessed for reaction to fire.
  • Low calorific value, this means that they will hardly contribute to a fire when exposed.
  • Tested in accordance with the European harmonized technical specification (EAD 090001-00-0404) and are classified in accordance with EN 13501-1: Rockpanel Durable B-s2,dO (FS-Xtra (Option) A2-s1,dO).
  • Lightweight and can easily be cut to size on-site using traditional cutting tools and their edges do not require sealing.
  • Quick to install with screws, nails, or in some cases adhesives, requiring no special tooling, meaning construction and installation costs are kept to a minimum.
  • Independently certified for their environmental performance by the Building Research Establishment (BRE), complying with all requirements identified in the scheme document SD028.
  • The boards are amongst the best in their category with A+ and A ratings for various structures.
  • Easy to maintain, the surface resists sun, wind and rain and the freshness and radiance of the colours are apparent for decades.
  • CWCT tested, European Technical Approval (ETA) and fire testing to BS 8414-1 :2015 + A1:2017.

General information

Color

Other

Finish

Other

Material

Mineral wool

Timber

Steel

Aluminium

Shape

Other

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H20/150 Sheet cladding (attached to metal support systems)

H20/10 Sheet cladding

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation

Mineral wool slab insulation.

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Breather membrane

-

Material

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Fasteners

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Secondary support structure

Aluminium carrier rails.

Stainless steel carrier rails.

Timber carrier rails.

Cavity fire barriers

-

Horizontal

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Vertical

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Cladding panels

-

Material

Compressed rock fibre panels.

Panel joints

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Reveals

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

System accessories

Guidance for specification option:

Consult manufacturer and insert requirements or omit.

Panel Type

Rockpanel Lines.

Panel size

164 x 3050 mm.

Guidance for specification option:

Working width: 151—156 mm.

295 x 3050 mm.

Guidance for specification option:

Working width: 282—287 mm.

Manufacturer guidance

Standard dimensions.

Thickness

8 mm.

Fixing

Screws.

Guidance for specification option:

Visible fixing. Panels can be attached with screws (wooden or metal) to the support structure.

Rivets.

Guidance for specification option:

Visible fixing. Panels can be attached to the metal support structure using rivets.

Nails.

Guidance for specification option:

Semi-visible.

Mechanical fastening.

Guidance for specification option:

Invisible. Panels can be installed using an invisible mechanical fastening system, where the backs of the panels are fitted with fastening points, in which panel hooks are placed with a tension-free anchor.

Colour

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Density

To EN 323, 1050 kg/m³.

Manufacturer guidance

Average Density - Oven Dry (kg·m‾³).

Composition

Durable.

Colour stability

To ISO 105 A02, 3—4.

Guidance for specification option:

Or better.

Manufacturer guidance

5000 h.

Fire classification

To EN 13501-1, B-s2,d0.

Weight

8.4 kg/m².

Coefficient of thermal expansion

To EN 438:2, 10.5 x 10‾³ mm/m∙K.

Guidance for specification option:

Clause 17.

Coefficient of moisture expansion

To EN 438:2, 0.302 mm/n.

Guidance for specification option:

Clause 17.

BendingStrength

To EN 310 and EN 1058, 27 N/mm².

Modulus of elasticity

To EN 310, 4015 N/mm².

ThermalConductivity

To EN 10456, 0.37 W/m∙K.

Water vapour permeability

Guidance for specification option:

Not applicable, non ventilated.

Manufacturer guidance

Sd (at 23 °C and 85 % RF) Colours.

Sustainability data

Recyclability

Almost 100% recyclable
