Anvil Metal Cladding - Recessed Joint Fix
Verified by manufacturer 5 months ago

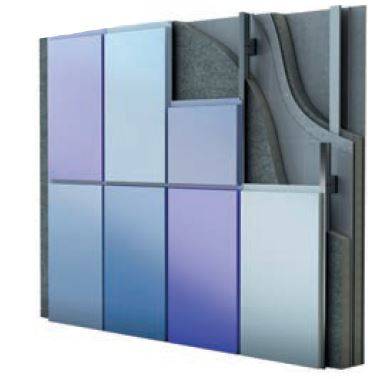

Metal cladding with a semi-concealed recessed joint fixed (RJF) system with an overlapping joint.
Application
External façade installations.
Description
Anvil is a range of aluminium rainscreen cladding panels that are attached using framing systems to the outer skin of the building construction. Anvil metal cladding panels can be manufactured to size and fabricated using aluminium, stainless steel, copper, Corten steel and zinc metals, which can be supplied in either an anodized, painted or mill finish.
Anvil metal cladding is available using a semi-concealed recessed joint fixed (RJF) system with an overlapping joint. To provide a consistent finish to the façade, coloured fixings are available to match the aluminium panels.
Features and benefits:
- Possible to perforate the faces of the cassettes, providing the option to generate unique and decorative visual effects.
- The panels can also be laid in a multi-directional, staggered pattern, allowing the construction of a highly creative aesthetic to suit individual project designs.
- Available in panel sizes up to 1.3 x 3.8 m.
- The standard joint width for this system is 20 mm.
- The RJF system is available with a PPC, anodized, natural metal or A1 pre-coated finish.
For samples, further details regarding the colours/ finishes available or technical details, please contact Taylor Maxwell.
General information
Color | Other |
Finish | Powder-coated Anodized Natural Coated |
Material | Aluminium Copper Cor-Ten Stainless steel Zinc |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Thermal insulation | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Breather membrane | |
Material | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Fasteners | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Secondary support structure | FloorSpan framing system.Guidance for specification option: FloorSpan is a aluminium rainscreen framing system.
Artus helping hand bracket cladding fixing systems.Guidance for specification option: Artus is a range of helping hand bracket cladding fixing systems used to support the rainscreen cladding system on a façade.
|
Cavity fire barriers | |
Horizontal | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Vertical | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Cladding panels | |
Material | Aluminium panels.Copper panels.Corten steel panels.Stainless steel panels.Zinc panels. |
Panel joints | Semi-concealed recessed joint fixed.Guidance for specification option: Overlapping, baffled joint. |
Reveals | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
System accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Joint width | 20 mm. Manufacturer guidanceMinimum joint width. |
Surface finish | Polyester powder-coated. Guidance for specification option: Insert colour requirements below. |
Colour | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Case studies
Kings Cairn
