Corium Brick Cladding - Brick Cladding System

Name: Corium Brick Cladding - Brick Cladding System
Brand: Taylor Maxwell
SKU: nLQRQ5d6CJbCVjT3mp1126

Verified by manufacturer 6 months ago

Glazed

Taylor Maxwell

Third party certifications:

BBA Agrément Certificate
Certificate type

Brick tile cladding system.

Jump to:

0203 794 9377 Website

Application

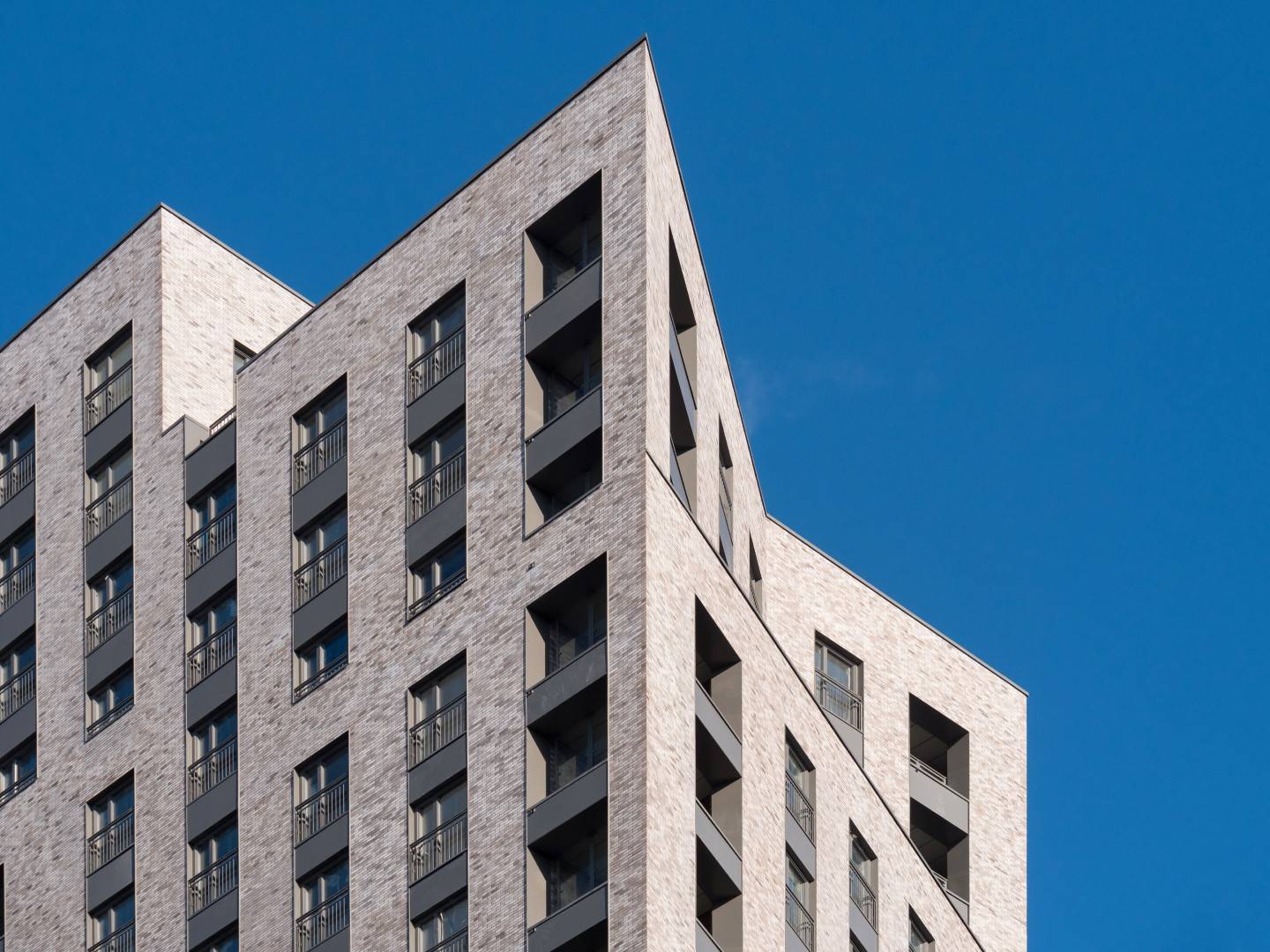

External façade installations. Suitable for use on a new building or refurbishment.

Description

The BBA certified Corium brick cladding system can be used on a new build or refurbishment. Corium is a tried and tested brick slip cladding system with main components that are “class A1 as defined by the National Building Regulations”.

If installed, used and maintained in accordance with the stipulations set out in the BBA certificate, Corium “can satisfy or contribute to satisfying the relevant requirements in the relation to NHBC Standards, Part 6 Superstructure (excluding roofs), Chapter 6.9 Curtain walling and cladding.

Features and benefits:

Over 2,500 brick tile finishes available with a range of colours and textures.
Unique colour blends tailored to specific project designs.
Variable tile height options of 50 mm, 65 mm, 140 mm and 215 mm.
A horizontal or vertical brick cladding wall appearance is achievable alongside soffits and around windows.
The cladding panels have a design life in excess of 35 years in accordance with section 10 of the BBA certificate.
There is no build limit with installations on projects in the UK up to 28 storeys as per section 6.2 of the BBA certificate - due consideration should still be given to the full certificate prior to design.
BBA approved and certified (19/5693).
Fire tested and approved in accordance with EN 13501-1 2007 + A1:2009. Test available on request
CWCT TN 76 - test methods for systemised building envelopes.
BRE - wind suction testing for European assessment document.
Corium tiles are produced as a finished product, using on average 75% less material than traditional brick.
Magnelis rails that tiles clip into do not contain any harmful elements and holds a full Environmental Product Declaration (EPD) compliant to EN 10346: 2015.
Magnelis rails reduce zinc runoff into soil compared to standard galvanized steel and is 100% recyclable.
System can be installed four times faster than traditional brickwork, reducing time required on site.

General information

Color	Other
Finish	Creased Dragfaced Sanded Smooth Other
Material	Brick Steel
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary
CAWS	H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Thermal insulation	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Breather membrane	-
Material	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Fasteners	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Secondary support structure	Magnelis steel carrier rails. Guidance for specification option: 0.7 mm thick Magnelis metallic coated steel (ZM 310 and ZM 430). Coated with a zinc-aluminium-magnesium alloy, manufactured to BS EN 10346 : 2015. The coating for Magnelis ZM 310 and ZM 430 steel is applied on both sides and is composed of zinc, 3.5% aluminium, 3% magnesium, with a coating weight of 310 and 430 g·m‾², and coating thicknesses of 25 and 35 μm respectively. Stainless steel carrier rails. Guidance for specification option: 0.55 mm thick stainless steel (grades 304 and 316).
Cavity fire barriers	-
Horizontal	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Vertical	Guidance for specification option: Consult manufacturer and insert requirements or omit.
Cladding panels	-
Material	Fired clay extruded brick tiles.
Panel joints	Movement joints. Guidance for specification option: To allow for horizontal movement, vertical expansion joints should be provided through tile, mortar and steel backing sections at a maximum of 12 m centres in the brick tile cladding. Horizontal expansion joints to allow for vertical movement should be provided at maximum 9 m centres. Joints should coincide with movement joints in the substrate wall and allow for the same degree of movement (see section 4.7 of the BBA Certificate).
Reveals	Guidance for specification option: Consult manufacturer and insert requirements or omit.
System accessories	Guidance for specification option: Consult manufacturer and insert requirements or omit.

Surface finish	Glazed.
Surface texture	Creased. Dragfaced. Sanded. Slate. Smooth.
Colour	Guidance for specification option: Consult manufacturer for options and insert requirements.
Height	50 mm. 57.7 mm. 65 mm. 92 mm. 140 mm. 215 mm. Show more Manufacturer guidance Brick height.
Length	215 mm. Other. Guidance for specification option: Other lengths are available on request. Manufacturer guidance Brick length.
Thickness	32 mm. Manufacturer guidance Brick thickness.
Wind resistance	2.40 kN·m‾².
Fire resistance	Class A1.
Mortar	Parex Historic Mortar KL. Guidance for specification option: Hydrated lime, sand and ground granulated blast furnace slag mortar. Manufactured to BS EN 998-2: 2016. 15 Parex mortar colours available, consult manufacturer and insert requirements.
