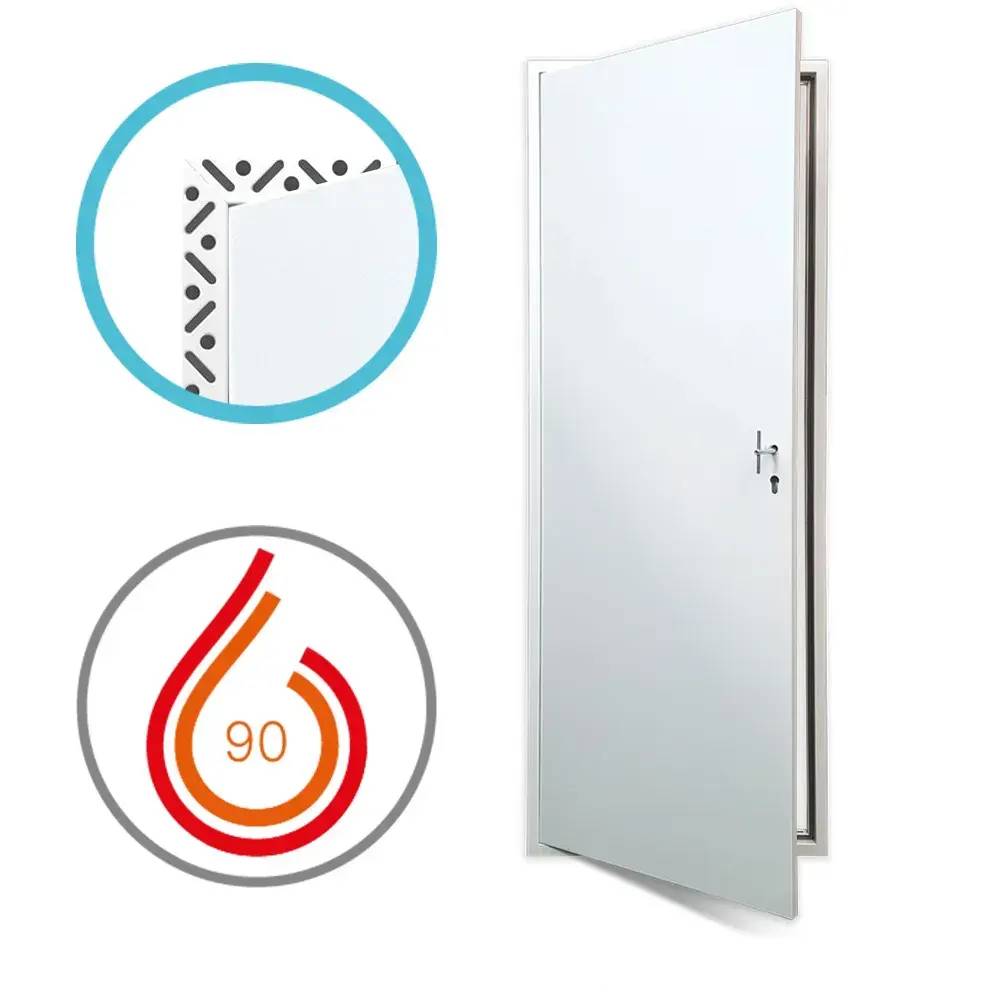

Riser Door Fire Rated 1.5 Hours Both Sides
Verified by manufacturer 4 months ago

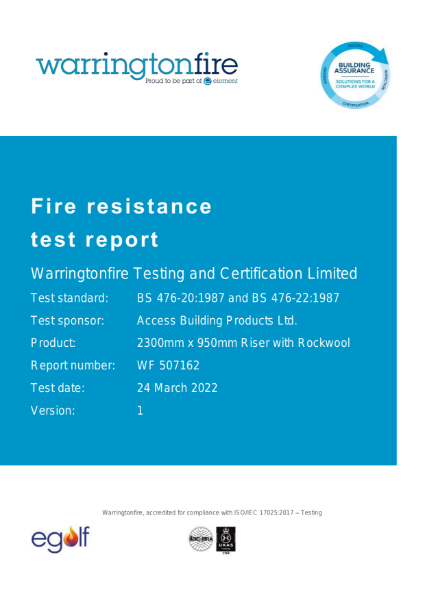

Warringtonfire
Certificate type
Riser door access panel, fire rated from both sides to 90 minutes for wall use.
Application
Suitable for wall use.
Description
Riser door access panel, fire rated from both sides to 90 minutes for wall use.
Features and benefits:
- Available in sizes up to H: 2300 x W: 2100 mm (double door) and H: 2300 x W 950 mm (single door).
- Available in picture or beaded frame.
- Achieves a sound reduction of 36 dB in accordance with BS EN ISO 10140-2.
- Fire rated for 1.5 hours on both sides - tested according to BS 476: Part 22.
- Meets the requirements of Part B Building Regulations.
- Smoke test compliant.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel Mineral wool |
Shape | Square Rectangle |
Length | 2300 mm Guidance for specification option: Maximum length. Bespoke Guidance for specification option: Made to order. |
Width | 950 mm Guidance for specification option: Maximum width single door. 2100 mm Guidance for specification option: Maximum width double door. Bespoke Guidance for specification option: Made to order. |
Height | 78 mm |
Warranty description | Two year |
Uniclass | |
CAWS | K20/360 Access panels K10/430 Access panels L20/55 Doorsets L20/480 Doorsets |
Specification data - Access panels
Fire performance | |
Fire resistance | 90 minutes to BS 476-22. |
Position | Wall-mounted. |
Size | Guidance for specification option: Made to measure. Consult manufacturer and insert requirements.
Manufacturer guidanceWhen selecting the access panel, please add 10 mm to the size when creating the structural opening. E.g. an access panel size of 1500 x 900 mm would fit a structural opening of 1510 x 910 mm. |
Frame | Exposed picture frame type.Bead for taping and jointing. |
Panel | |
Material | Steel.Guidance for specification option: Zintec steel. |
Integral finish | Powder-coated. |
Latch or lock type | Budget lock.Guidance for specification option: Equipped with an 8 mm square insert and can be opened using a metal T-key. Tamper proof lock.Guidance for specification option: Features a castellated insert and can be opened with a uniquely shaped metal key. Manufacturer guidanceThe lock operates with a 90-degree turn and provides three locking points between the frame and the door. |
Operation | Zintec steel piano hinge, outward opening. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Colour | Pure white RAL 9010. |
Depth | 80 mm. |
Insulation | Mineral wool insulation. |
Sound reduction | To BS EN ISO 10140-2, 36 dB. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature
Duplex 90 Brochure

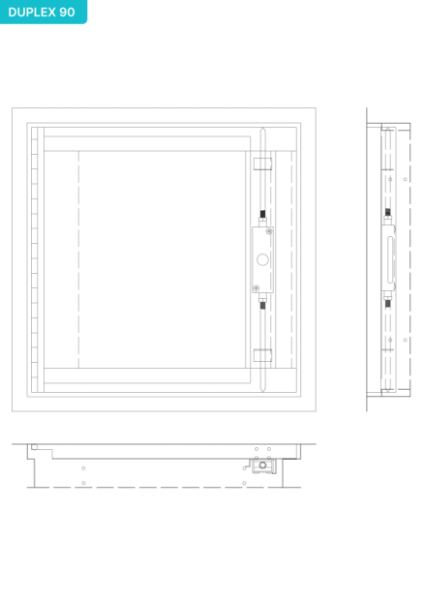

Duplex 90 Tech
