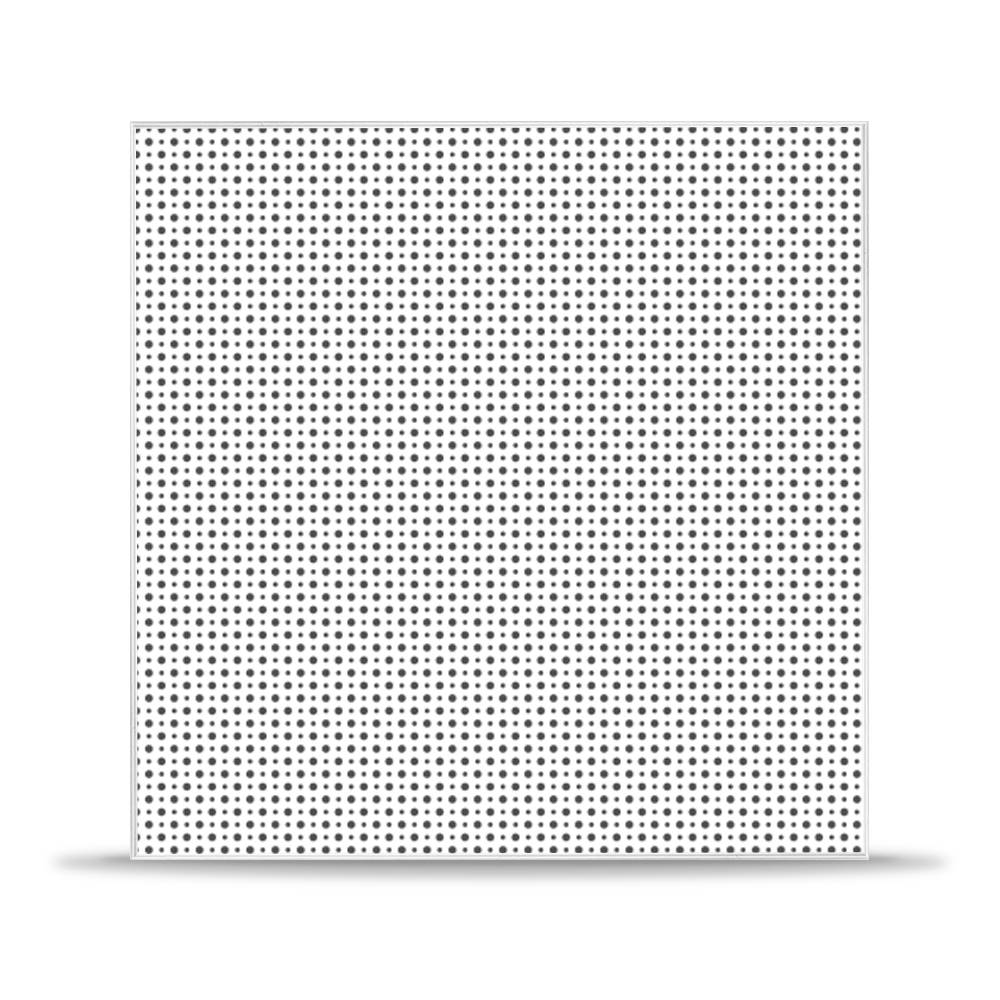

Rigitone / Quattro Acoustic Ceiling Access Panel
Verified by manufacturer 4 months ago

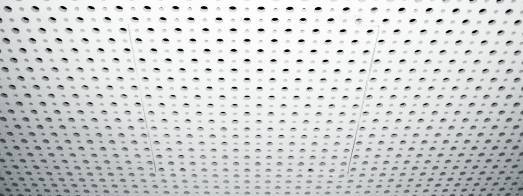

Ceiling access panels to house either Rigitone or Quattro acoustic board. Access panel to allow access to building services without disrupting the aesthetics of a Rigitone or Quattro acoustic ceiling
Application
Ceiling mounted access panel suitable for use with either the Rigitone or Quattro acoustic board.
Description
Range of ceiling access panels to suit either the Rigitone or Quattro acoustic board.
Features and benefits:
- Exposed edge frame.
- Metal door tray to accept the board inlay.
- Touch catch locks or budget lock available.
- Depth 35 mm.
General information
Material | Metal |
Shape | Square Rectangle |
Length | 1200 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Made to order. |
Width | 600 mm Guidance for specification option: Maximum. Bespoke Guidance for specification option: Made to order. |
Height | 35 mm |
Warranty description | Two year |
Uniclass | |
CAWS | K40/280 Access units K10/50 Suspended ceiling system on metal framing K10/430 Access panels |
Specification data - Access panels
Position | Ceiling-mounted. |
Size | Guidance for specification option: Made to order, maximum size 1200 x 600 mm. Consult manufacturer and insert requirements. |
Frame | Exposed picture frame type. |
Panel | |
Material | Metal. |
Latch or lock type | Touch catch.Budget lock. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Depth | 35 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

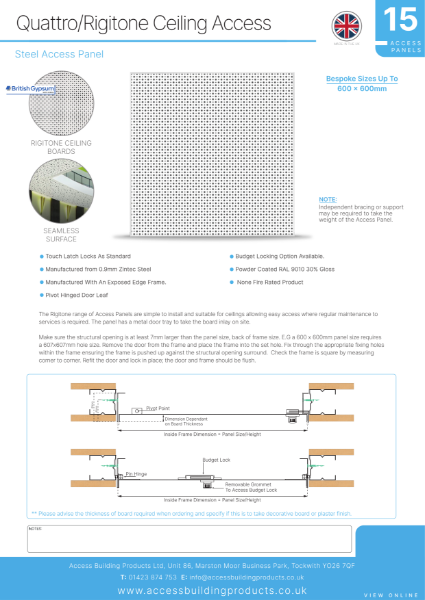

QUATTRO RIGITONE Brochure
