Recessed Paper Towel Dispenser/ Waste Receptacle with TowelMate and LinerMate B-4369

Verified by manufacturer 11 months ago

Bobrick Washroom Equipment Ltd

Recessed folded paper towel dispenser with 3 gallon (11.3 L) waste bin.

Jump to:
+44 (0)20 8366 1771 Website

Application

Recess mounted.

Description

Features and benefits:

  • Unit equipped with TowelMate and LinerMate.
  • Satin-finish stainless steel.
  • Flush tumbler lock.
  • Dispenses 350 C-fold or 475 multi-fold towels.
  • Waste receptacle has 3.0 gal. (11.3 L) capacity; projects 2-1/2″ (65 mm) from wall.
  • Removable front panel for cleaning.

General information

Color

Silver

Finish

Satin

Material

Stainless steel

Shape

Rectangle

Length

710 mm

Guidance for specification option:

Recess 290 x 675 x 100 mm.

Width

325 mm

Height

165 mm

Warranty description

One year

Guidance for specification option:

Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase.

Uniclass

Pr_40_70_22_62 Paper towel dispensersPrimary

CAWS

N13/59 Paper towel dispensers

N13/442 Paper towel dispensers

Specification data - Paper towel dispensers

Form

Recess wall-mounted.

Towels

-

Towel type

Folded.

Materials

-

Body

Stainless steel.

Finish and colour

Satin polished.

Operation

Pull-out.

Integral accessories

Waste bin.

Guidance for specification option:

11.3 L

4369-134 LinerMate®.

369-130 TowelMate®.

Sustainability data

Country of material origin

Canada

Recyclability

-

Manufacturer guidance

Metals widely recycled

BIM objects

Platform Compatible Version
Revit
-

1

Literature

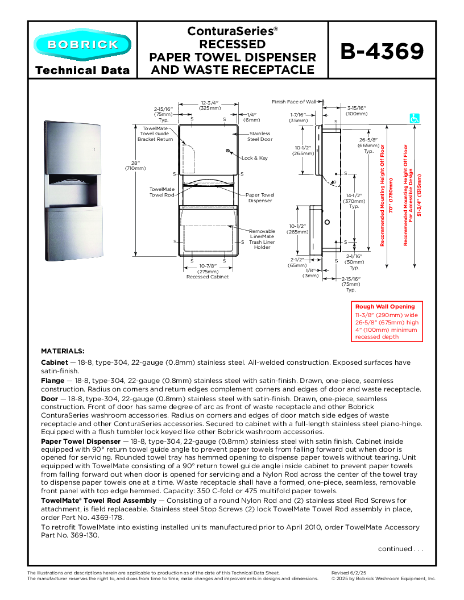

ConturaSeries® Recessed Paper Towel Dispenser and Waste Receptacle - B-4369

ConturaSeries® Recessed Paper Towel Dispenser and Waste Receptacle - B-4369

Washroom Accessories

Washroom Accessories

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance

TowelMate and LinerMate Accessories

TowelMate and LinerMate Accessories

TB-88 Advisory Bulletin

TB-88 Advisory Bulletin
