Recessed Paper Towel Dispenser/ Waste Receptacle B-369
Verified by manufacturer 10 months ago
Recessed folded paper towel dispenser with 2 gallon (7.6 L) waste bin.
Application
Recess mounted.
Description
Features and benefits:
- Satin-finish stainless steel.
- Seamless bevelled flange.
- Dispenses 350 C-fold or 475 multifold towels.
- Knob-latch retains door.
- Removable waste container has 2 gal. (7.6 L) capacity.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 710 mm Guidance for specification option: Recess 320 x 675 x 100 mm. |
Width | 355 mm |
Height | 105 mm |
Warranty description | Guidance for specification option: Bobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Recess wall-mounted. |
Towels | |
Towel type | Folded. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Integral accessories | Waste bin.Guidance for specification option: 7.6 L 369-130 TowelMate®. |
Sustainability data
Country of material origin | Canada |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

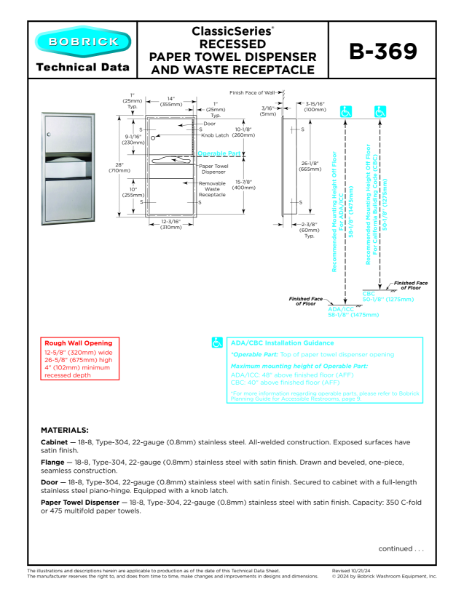

ClassicSeries® Recessed Paper Towel Dispenser and Waste Receptacle - B-369
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
TB-88 Advisory Bulletin
Case studies
Assima Tower
