Recessed Paper Towel Dispenser B-318
Verified by manufacturer 11 months ago
Recessed paper towel dispenser with towel cabinet concealed in the wall.
Application
Recess mounted.
Description
Features and benefits:
- Satin-finish stainless steel.
- Dispenses 600 C-fold or 800 multi-fold towels.
- Towels load into bottom of cabinet concealed behind wall or mirror; only the towel tray is visible.
- Rough Wall Opening: 305 x 465 mm to accept cabinet height, plus 150 mm min. clearance required space below towel tray. 115 mm min. depth.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 455 mm Guidance for specification option: 150mm clearance below dispenser required to access towels. |
Width | 320 mm |
Height | 110 mm |
Warranty description | Manufacturer guidanceBobrick washroom accessories are warranted to be free from defects in workmanship and material under normal usage service for one year from the date of purchase. (Refer to Bobrick Advisory Bulletin TB-21, Effective Ways to Clean Stainless Steel.) |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers |
Specification data - Paper towel dispensers
Form | Recess wall-mounted. |
Towels | |
Towel type | Folded. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin polished. |
Operation | Pull-out. |
Sustainability data
Country of material origin | Mexico |
Recyclability | Manufacturer guidanceMetals widely recycled |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature

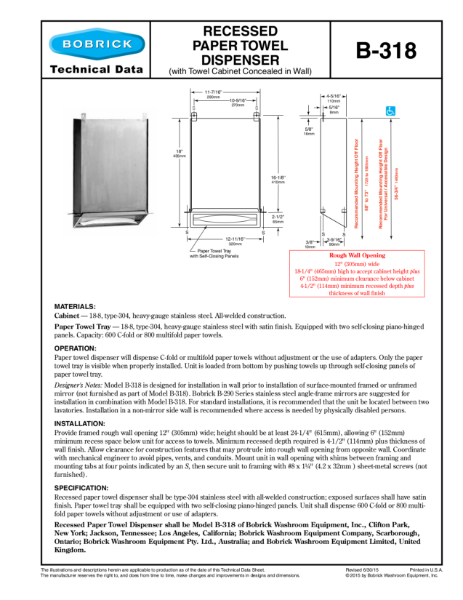

Recessed Paper Towel Dispenser (with Towel Cabinet Concealed in Wall) - B318
Washroom Accessories
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
TB-88 Advisory Bulletin
TrimLineSeries™ Brochure
