Recessed Automatic Universal Roll Towel Dispenser/Waste Bin B-39747
Verified by manufacturer 10 months ago
Unit includes convertible automatic universal, roll paper towel dispenser with a light that directs users to towel activation zone and 68.1 L (18-gallon) waste bin.
Application
Recessed wall-mounted for washroom applications.
Description
Unit includes convertible automatic universal, roll paper towel dispenser with intuitive, patron-friendly light that directs users to towel activation zone and 68.1 L (18-gallon) waste bin. Satin-finish stainless steel. Seamless bevelled flange. Dispenses universal, 38 to 51 mm (1-1/2″ to 2″) diameter core, up to 205 mm (8″) wide, up to 205 mm (8″) diameter rolls, 244 m (800 ft) long, plus 90 mm (3-1/2″) diameter stub roll with automatic transfer. Removable waste bin is locked into cabinet. Battery requirements: Four Alkaline “D” Cells (not included). Field conversion made easy without replacing existing cabinets in wall.
Interchangeable with:
366-60 Interchangeable Receptacle, 27.2 L (6-gal.).
367-60 Interchangeable Receptacle, 45.5 L (12-gal.).
368-60 Interchangeable Receptacle, 68.1 L (18-gal.).
3961-50 “Touch-free” Pull Towel Dispenser Module.
3944-152 Folded Towel Dispenser Module.
General information
Color | Silver |
Finish | Satin |
Material | Stainless steel |
Shape | Rectangle |
Length | 305 mm |
Width | 435 mm |
Height | 1420 mm |
Warranty description | One year |
Uniclass | |
CAWS | N13/59 Paper towel dispensers N13/442 Paper towel dispensers N13/441 Paper roll dispensers |
Specification data - Paper roll dispensers
Form | Wall-mounted, recessed. |
Roll width | 205 mm. |
Materials | |
Body | Stainless steel. |
Finish and colour | Satin-finish. |
Operation | Automatic. |
Integral accessories | LED light and waste bin.Guidance for specification option: 18-gal. (68.0 L) waste bin. |
Accessories | None. 3944-152 Folded towel dispenser module. 3961-50 Mechanical (non-automatic) universal touch-free roll towel dispenser module. 366-60 6-gallon (27.2 L) waste receptacle. 367-60 12-gallon (45.5 L) waste receptacle. |
Sustainability data
Country of product manufacture | United States |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Literature
Advisory Bulletin TB-21 Stainless Steel Cleaning and Maintenance
AutoRoll Dispenser Series

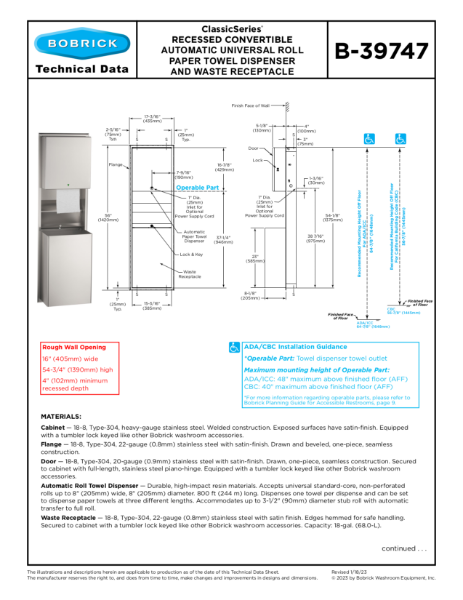

ClassicSeries® Recessed Convertible Automatic Universal Roll Paper Towel Dispenser and Waste Receptacle - B-39747

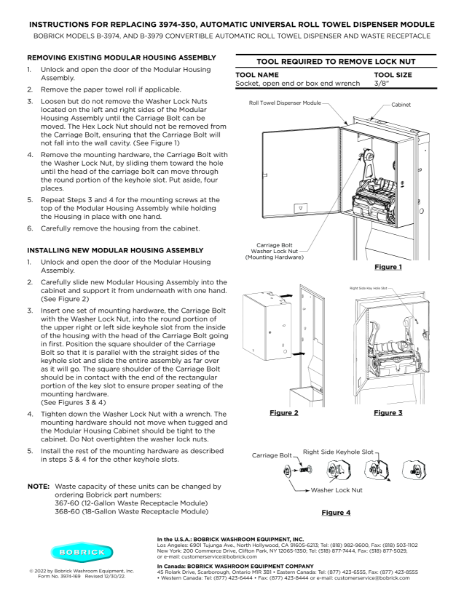

Installation Instructions B-3974
