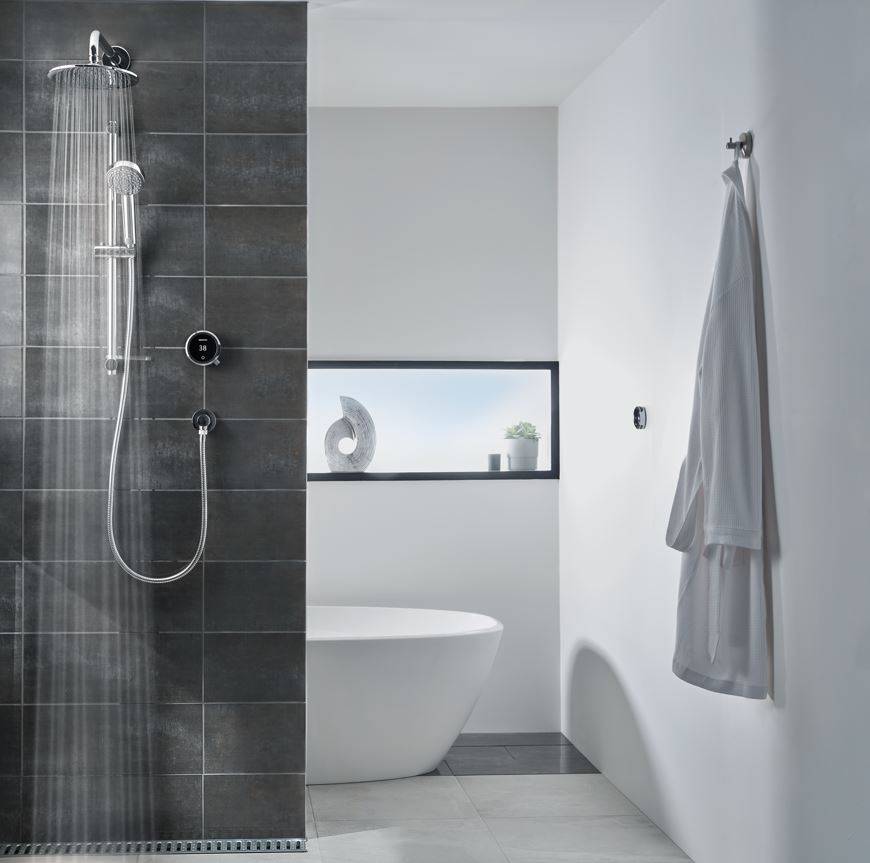

Quartz Touch Smart Divert Concealed Shower With Adjustable And Fixed Wall Heads

Verified by manufacturer 6 months ago

QZST.A1.BV.DVFW.20

Aqualisa Products Ltd Variant:

Built-in dual outlet smart shower with wall outlet for adjustable handset and wall fixed drencher head.

Jump to:
BOS
+44 (0)1959 560000 Website

Application

Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.

Description

Fixed and adjustable showerheads.


Features and benefits:

  • 105 mm showerhead diameter with 4 spray patterns (230 mm fixed head).
  • Proximity sensor (to wake controller up).
  • Large rotary temperature ring.
  • Digital display system.
  • Unique lever control.
  • User definable shower profiles/ experiences (available via the Aqualisa app).
  • Warm and ready indicator.
  • Optical on/ off switch.
  • Magnetically damped lever.
  • Aqualisa SmartValve™.
  • Adjustable up to maximum centres of 657 mm.
  • Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
  • Optional wireless rechargeable remote control (separate product).
  • Digital diverter technology.
  • CE marked.
  • Five-year guarantee.

General information

Color

Silver

Finish

Chrome

Material

Metal

Plastic

Glass

Shape

Circle

Length

320 mm

Height

700 mm

Warranty description

Five year

Two year

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Approvals

CE marked and BEAB approval mark.

Form

Touch Smart divert concealed shower.

Materials

-

Body

Metal and plastics.

Finish and colour

Chrome plated.

Flow rate (maximum)

8-16 L/min.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Cold inlet temperature 1˚C (minimum) and 15˚C (maximum).

Hot inlet temperature 65˚C (maximum).

Pressure

1—7 bar.

Shower head

105 mm (adjustable head), 230 mm (fixed head).

Controller

98 x 98 x 34 mm.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Centres

48 mm.

Manufacturer guidance

Valve inlet centres.

System

HP, combi system.

HoseLength

1500 mm.

Sustainability data

Country of material origin

Malaysia

Country of product manufacture

Malaysia

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1
