Mian Round Bar Valve (Cool Touch)

Name: Mian Round Bar Valve (Cool Touch)
Brand: Aqualisa Products Ltd
SKU: o6tN4opr9fabnmrXFCbwmS

Verified by manufacturer 19 days ago

Aqualisa Products Ltd

Third party certifications:

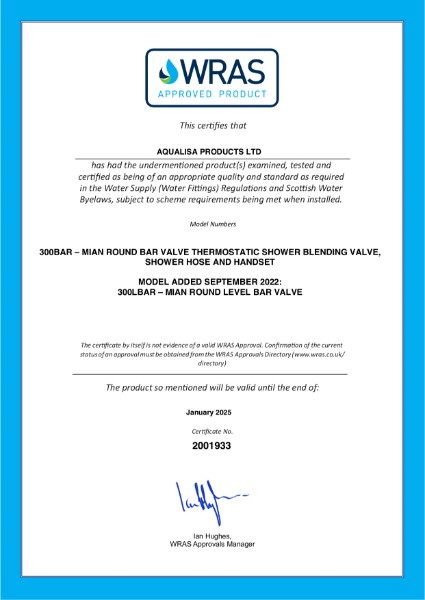

WRAS
Certificate type

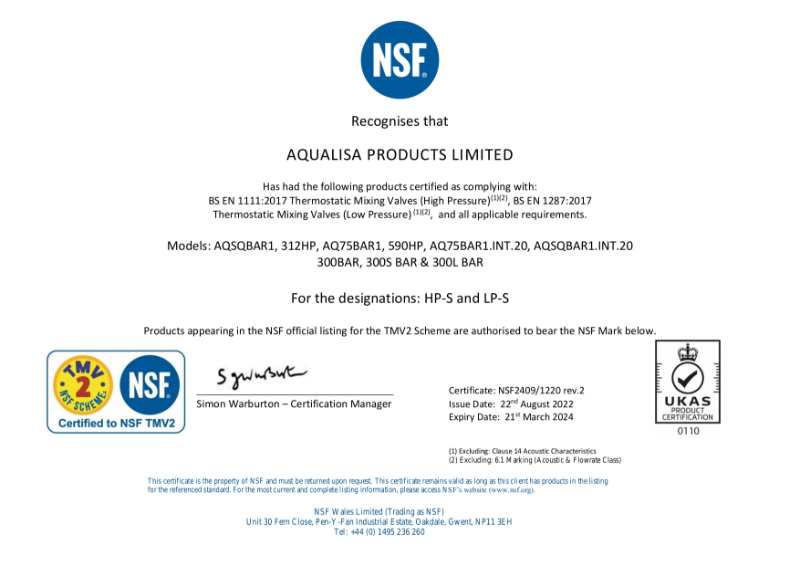

NSF International
Certificate type

Mian round bar valve (cool touch).

Jump to:

+44 (0)1959 560000 Website

Application

Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.

Description

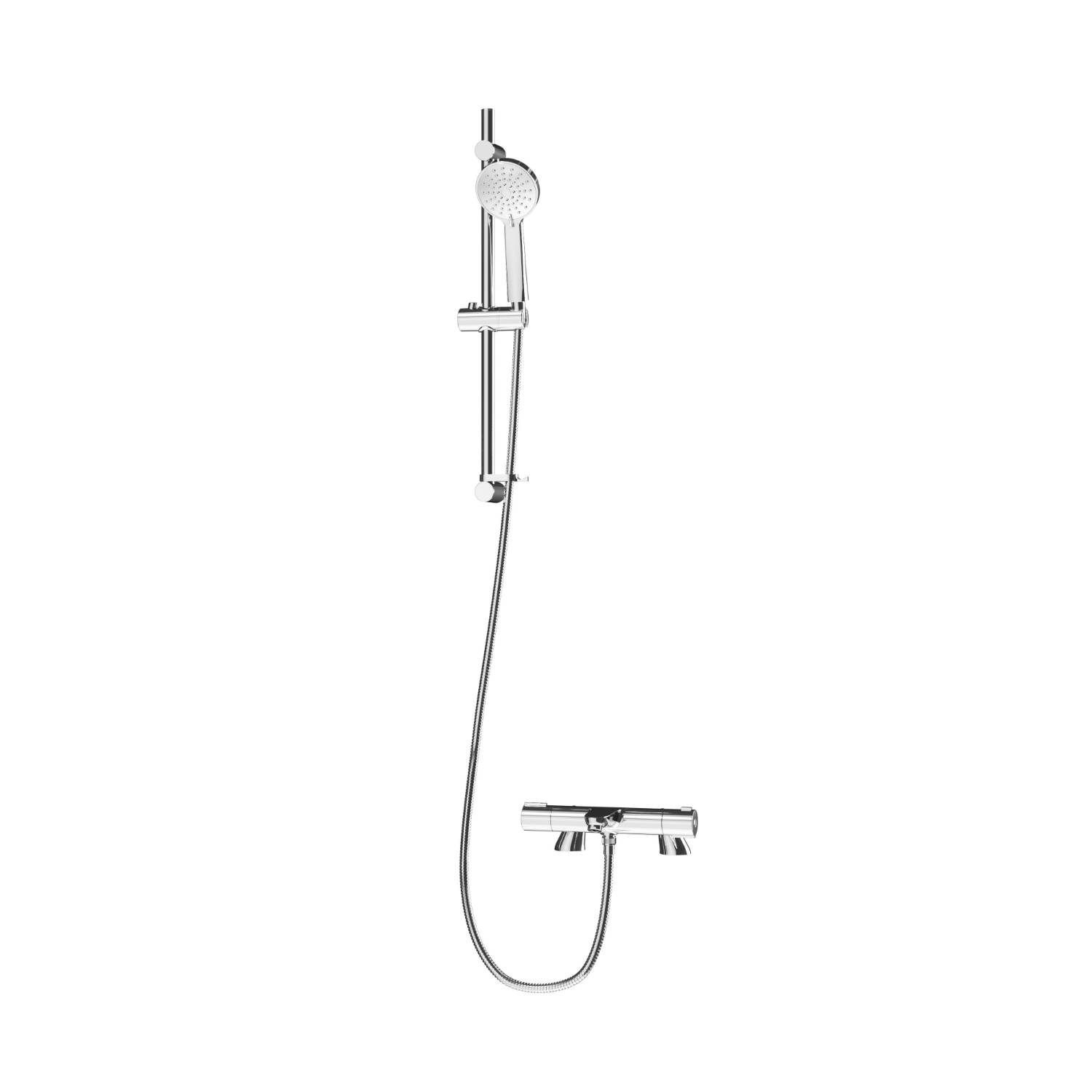

A conventional, high quality bar mixer valve with handset and slide rail for fixed position or handheld showering. Easy to install with the added assurance of safe water and surface temperatures.

Features and benefits:

Cool touch valve for added safety.

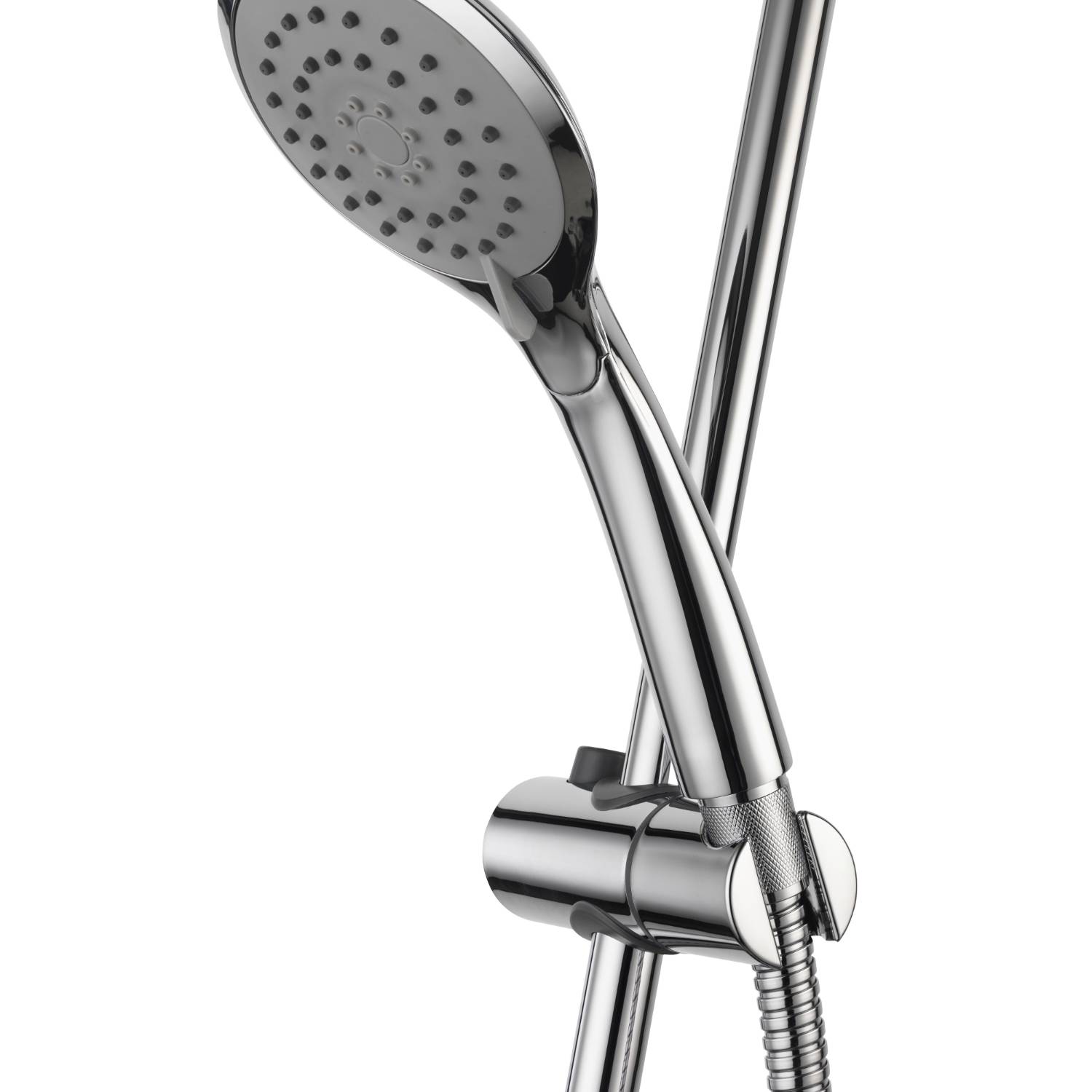

110 mm three spray handset with rub clean nozzles.
Push button handset holder.
Temperature override button.
Soap dish.
Suits all UK water systems.
Five year guarantee.

General information

Color	Silver
Finish	Chrome
Material	Brass Metal Plastic
Shape	Other
Length	1500 mm Manufacturer guidance Hose length.
Width	110 mm Manufacturer guidance Handset width.
Height	660 mm Manufacturer guidance Rail height.
Warranty description	Five year Guidance for specification option: Valve guarantee. Two year Guidance for specification option: Kit guarantee.

Uniclass	Pr_40_20_87_75 Shower fittings packagePrimary
CAWS	N13/375 Shower units N13/40 Shower units N13/42 Shower mixer valves

Specification data - Shower fittings package

Form	Wall-mounted thermostatic shower mixer valve with handset and slide rail.
Materials	-
Body	Brass.
Finish and colour	Gloss chrome-plated.
Flow rate (maximum)	16.71 L/min at 5 bar. Guidance for specification option: Minimum - 2.09 L/min at 0.15 bar.
Water supply temperature (maximum)	65°C. Guidance for specification option: Minimum - 10°C.
Integral accessories	Guidance for specification option: Consult manufacturer and insert requirements.

System	Gravity. Boosted gravity. Combi. Balanced high pressure.
HoseLength	1500 mm.
Hose	Stainless steel.
Length	660 mm. Manufacturer guidance Rail length.
Rail width	19 mm.
Shower head	110 mm. Manufacturer guidance Handset width.
Spray Patterns	Three.
Controller	281 x 98 x 60 mm. Manufacturer guidance Controller / Valve Unit (W x D x H).
Control	Bar valve.
Weight	1.8440 kg.
Pressure	0.15—5 bar.
InletConnectionSize	3/4" threaded.
OutletConnectionSize	1/2" Thread.
Position	Rear. Manufacturer guidance Water entry point.
Divert	No.
Power Levels	One.
