Mian Square Bar Valve (Cool Touch)
Verified by manufacturer 6 months ago
WRAS
Certificate type
NSF International
Certificate type
Mian square bar valve (cool touch).
Application
Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.
Description
This square bar mixer valve with an adjustable square handset and slide rail, is a stylish design alternative for modern shower installations. It's reliable and easy to install with the added assurance of safe water and surface temperatures.
Features and benefits:
- Cool touch valve for added safety.

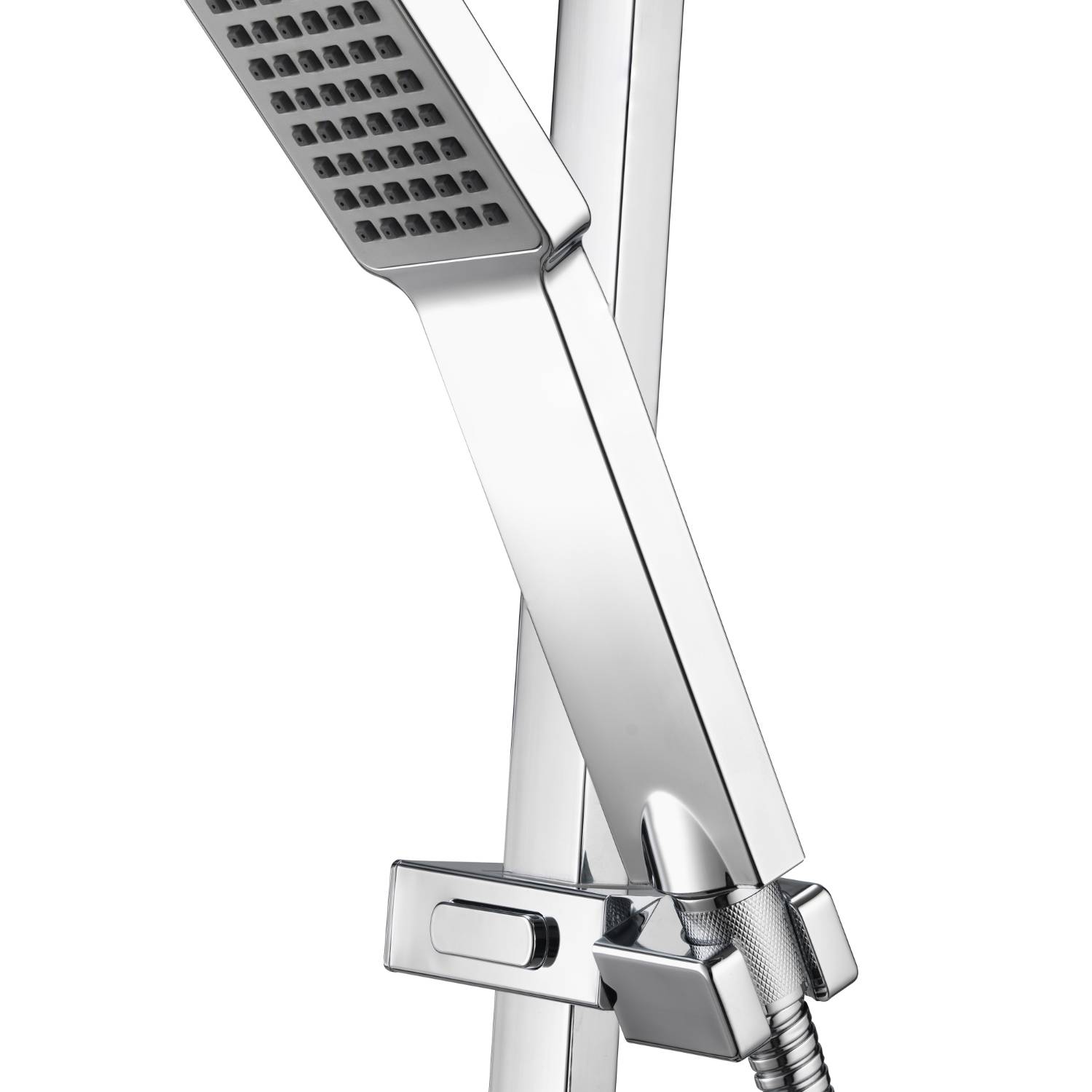

- 65 mm one spray handset with rub clean nozzles.
- Push button handset holder.
- Temperature override button.
- Suits all UK water systems.
- Five year guarantee.
General information
Color | Silver |
Finish | Chrome |
Material | Brass Metal Plastic |
Shape | Other |
Length | 1500 mm Manufacturer guidanceHose length. |
Width | 65 mm Manufacturer guidanceHandset width. |
Height | 656 mm Manufacturer guidanceRail height. |
Warranty description | Five year Guidance for specification option: Valve guarantee. Two year Guidance for specification option: Kit guarantee. |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/41 Shower heads N13/375 Shower units N13/40 Shower units |
Specification data - Shower fittings package

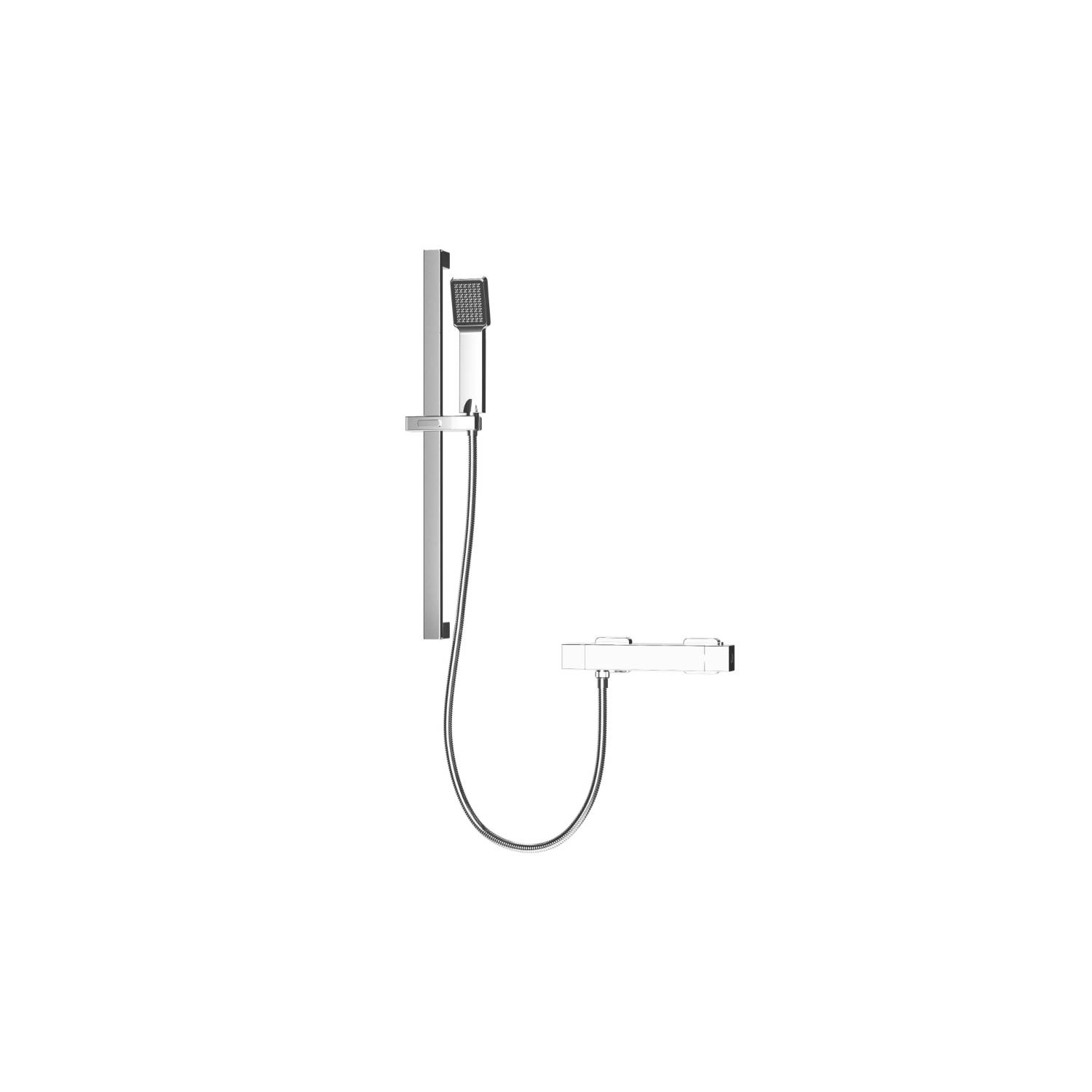

Form | Wall-mounted shower mixer valve, flexible hose, spray handset and sliding rail kit. |
Materials | |
Body | Brass. |
Finish and colour | Gloss chrome-plated. |
Flow rate (maximum) | 20.33 L/min at 5 bar.Guidance for specification option: Minimum 2.45 L/min at 0.1 bar. |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum - 10°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
System | Gravity. Boosted gravity. Combi. Balanced high pressure. |
HoseLength | 1500 mm. |
Hose | Stainless steel. |
Length | 656 mm. Manufacturer guidanceRail length. |
Rail width | 30 x 15 mm. |
Shower head | 65 mm. Manufacturer guidanceHandset width. |
Spray Patterns | One. |
Controller | 281 x 98 x 59 mm. Manufacturer guidanceController / Valve Unit (W x D x H). |
Control | Bar valve. |
Weight | 2.1705 kg. |
Pressure | 0.1—5 bar. |
InletConnectionSize | 3/4" threaded. |
OutletConnectionSize | 1/2" thread. |
Position | Rear. |
Divert | No. |
Power Levels | One. |
Sustainability data
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Third party certifications
WRAS

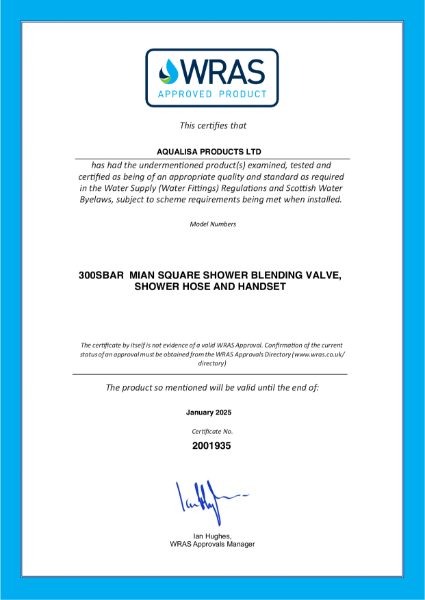

300SBAR WRAS Approval Certificate
NSF International
NSF2409
Literature
300SBAR Data Sheet
