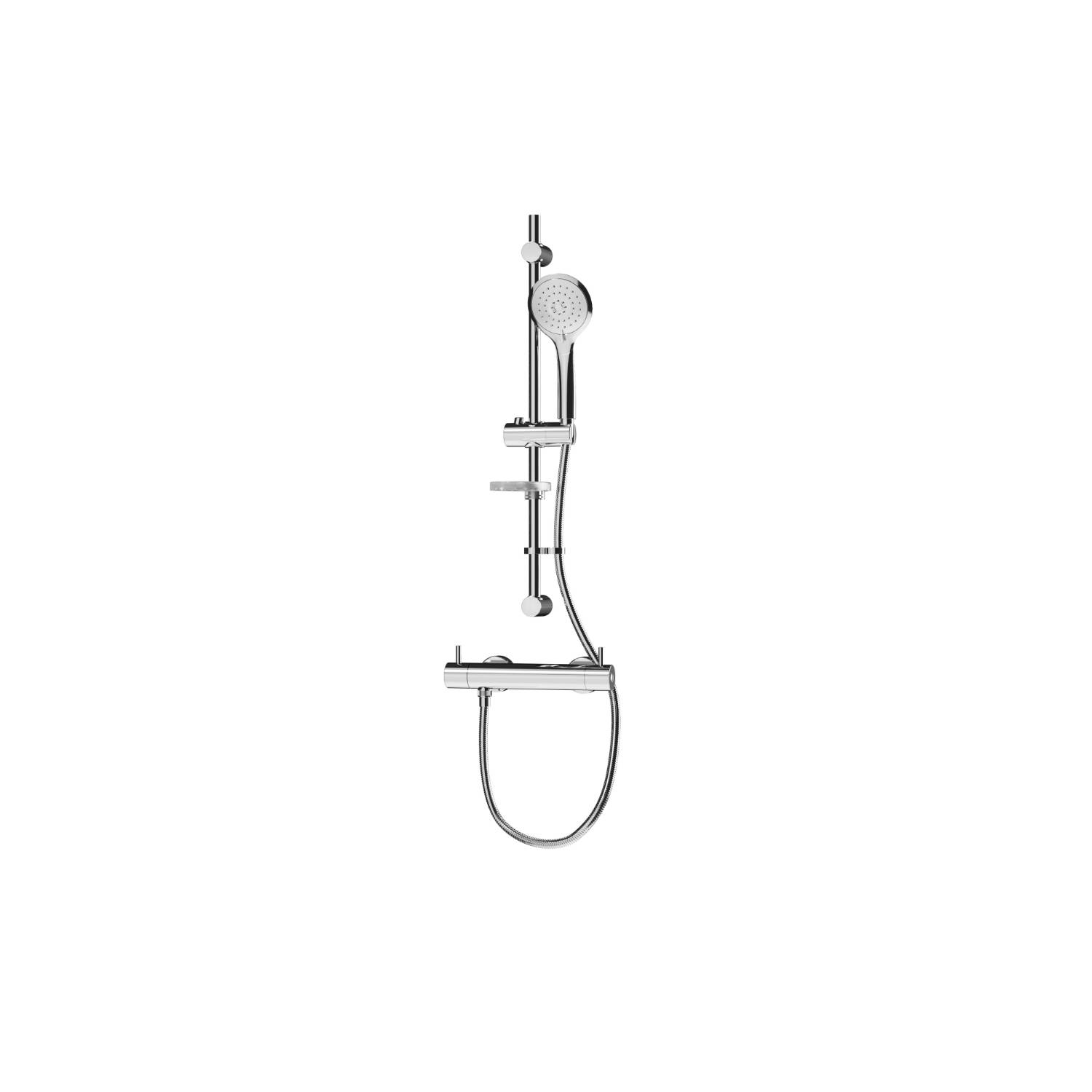

Mian Round Lever Bar Valve (Cool Touch)

Verified by manufacturer 3 days ago

Aqualisa Products Ltd Third party certifications:
  • WRAS

    WRAS

    Certificate type

  • NSF International

    NSF International

    Certificate type

Mian round lever bar valve.

Jump to:
+44 (0)1959 560000 Website

Application

Compatible with gravity, boosted gravity, combi and balanced high pressure water systems.

Description

Pin lever controls for both temperature and flow, make this style of bar mixer valve an suitable solution where easy operation and safety assurance are priority requirements.


Features and benefits:

  • Cool touch valve for added safety.
  • 110 mm three spray handset with rub clean nozzles.
  • Push button handset holder.
  • Temperature override button.
  • Soap dish.
  • Suits all UK water systems.
  • Five year guarantee.

General information

Color

Silver

Finish

Chrome

Material

Brass

Metal

Plastic

Shape

Other

Length

1500 mm

Manufacturer guidance

Hose length.

Width

110 mm

Manufacturer guidance

Handset width.

Height

660 mm

Manufacturer guidance

Rail height.

Warranty description

Five year

Guidance for specification option:

Valve guarantee.

Two year

Guidance for specification option:

Kit guarantee.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/42 Shower mixer valves

N13/40 Shower units

N13/375 Shower units

Specification data - Shower fittings package

Form

Wall-mounted thermostatic shower mixer valve with handset and slide rail.

Materials

-

Body

Brass.

Finish and colour

Gloss chrome-plated.

Flow rate (maximum)

16.71 L/min at 5 bar.

Guidance for specification option:

Minimum - 2.09 L/min at 0.15 bar.

Water supply temperature (maximum)

65°C.

Integral accessories

Guidance for specification option:

Consult manufacturer and insert requirements.

System

Gravity.


Boosted gravity.

Combi.

Balanced high pressure.

HoseLength

1500 mm.

Hose

Stainless steel.

Length

660 mm.

Manufacturer guidance

Rail length.

Rail width

19 mm.

Shower head

110 mm.

Manufacturer guidance

Handset width.

Spray Patterns

Three.

Controller

281 x 98 x 60 mm.

Manufacturer guidance

Controller / Valve Unit (W x D x H).

Control

Bar valve.

Weight

1.8395 kg.

Pressure

0.15—5 bar.

InletConnectionSize

3/4" threaded.

OutletConnectionSize

1/2" thread.

Position

Rear.

Manufacturer guidance

Water entry point.

Divert

No.

Power Levels

One.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Third party certifications

WRAS

WRAS

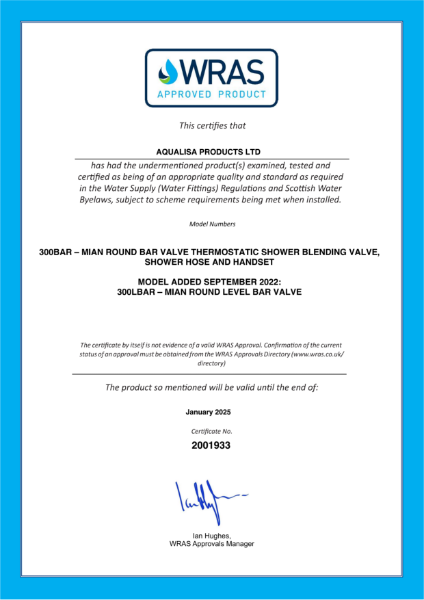

300LBAR WRAS Approval Certificate

NSF International

NSF International

NSF2409

Literature

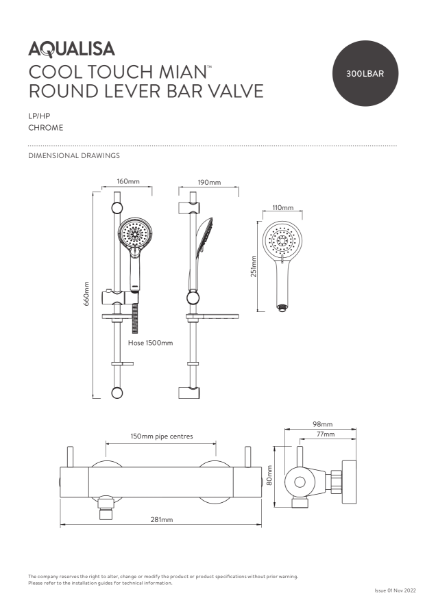

300LBAR Data Sheet

300LBAR Data Sheet
