Mian Single Outlet Concealed Mixer Valve
Verified by manufacturer 6 months ago
SDCV.TRM1.OVL
SDCV.TRM1.OVL
The striking new Mian range from Aqualisa offers a robust and reliable choice of dual control thermostatic mixer valves.
Application
Suitable for all approved UK water systems.
Description
The striking new Mian range from Aqualisa offers a robust and reliable choice of dual control thermostatic mixer valves, suitable for all approved UK water systems and with a five year parts and labour guarantee.
Features and benefits:
- Sculptured one piece brass body with 5 year guarantee (parts and labour).
- Thermo safe for safe and reliable temperatures.
- Separate On/Off flow and temperature control.
- Suitable for all approved UK water systems.
- Supplied with mortar guard and all pipework connections.
- Concealing depth from min 69 mm to max 90 mm and fully serviceable from the front.
General information
Color | Silver |
Finish | Chrome |
Material | Brass Metal Plastic |
Shape | Square Oval Round Rectangle |
Size | 200 x 130 x 77.5 mm Guidance for specification option: NominalHeight 200 NominalLength 77.5 NominalWidth 130 Manufacturer guidanceNominalHeight 200 NominalLength 77.5 NominalWidth 130 |
Warranty description | Five year |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/41 Shower heads N13/40 Shower units N13/375 Shower units |
Product range |
Specification data - Shower fittings package

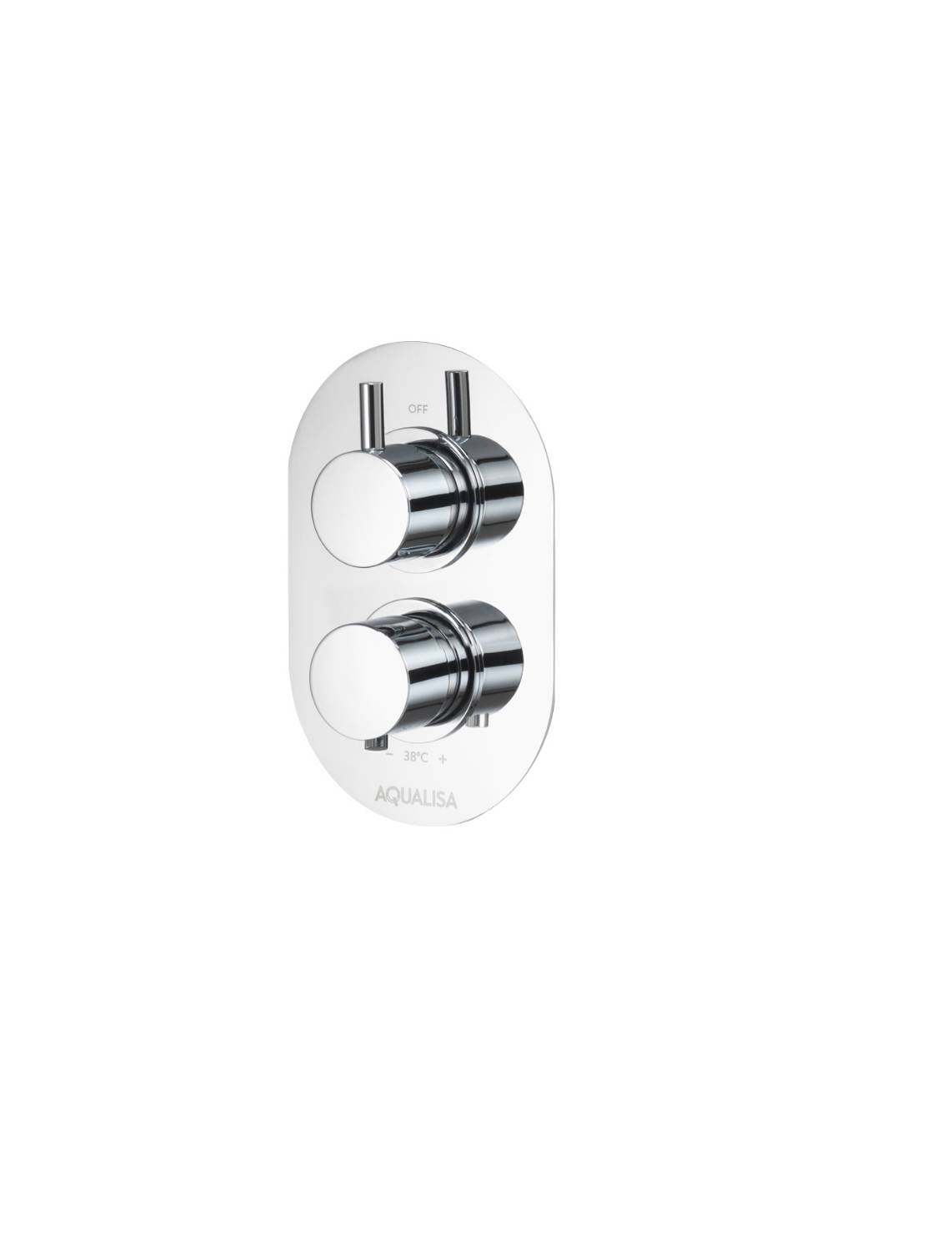

Form | Valve with oval wall plate with round dials (single outlet). |
Materials | |
Body | Brass. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 36.76 L/min. |
Water supply temperature (maximum) | 65°C. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
