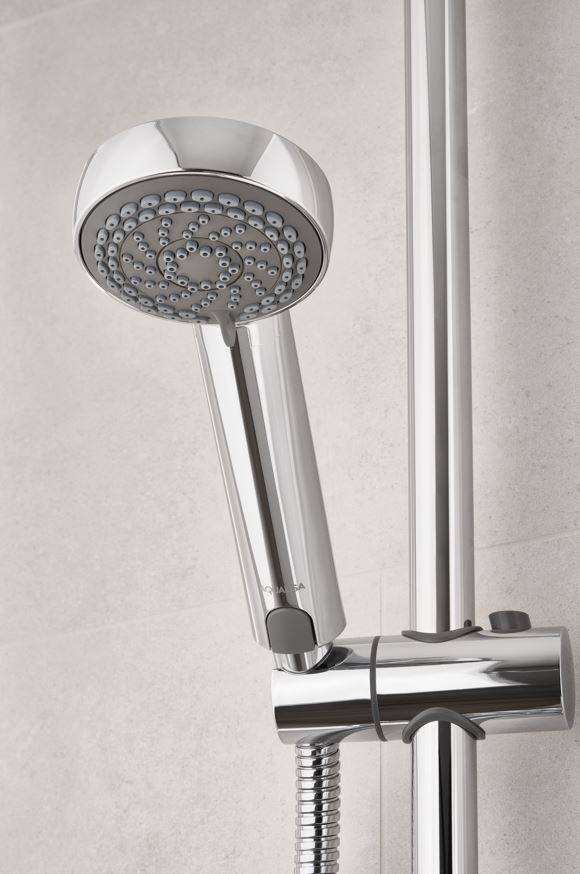

Quartz Blue Smart Divert Concealed Shower Adjustable With Wall Fixed Head

Verified by manufacturer 6 months ago

QZSB.A1.BV.DVFW.20

Aqualisa Products Ltd Variant:
Third party certifications:
  • BEAB

    BEAB

    Certificate type

  • WRAS

    WRAS

    Certificate type

Built-in dual outlet smart shower with wall outlet for adjustable handset and wall fixed drencher head.

Jump to:
BOS
+44 (0)1959 560000 Website

Application

Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath. Water system requirements: HP, combi and boosted gravity.

Description

Fixed wall and adjustable showerheads. It must be sited no higher than the base level of the cold water system (for gravity systems).


Features and benefits:

  • 90 mm showerhead diameter (200 mm fixed head).
  • Harmony handset with 4 spray patterns including eco spray.
  • Adjustable up to maximum centres of 657 mm.
  • LED display shows when the desired shower temperature has been reached.
  • Wifi, Mobile App, Google Home & Amazon Alexa enabled to allow you to control your shower remotely.
  • Mutliple showers can be controlled from one app.
  • Easy to use button, one touch divert control.
  • Glide temperature control for safe thermostatic showering with adjustable maximum temperature.
  • Timer feature allows you to set your shower duration.
  • Optional eco mode on the Smart valve which can be selected for water saving up to 33%.
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.


General information

Color

Silver

Finish

Chrome

Material

Metal

Plastic

Shape

Circle

Length

315 mm

Height

700 mm

Warranty description

Five year

Guidance for specification option:

Shower unit.

Two year

Guidance for specification option:

Shower head and kit.

Uniclass

Pr_40_20_87_75 Shower fittings packagePrimary

CAWS

N13/375 Shower units

N13/40 Shower units

Product range

Smart Digital Showers

Specification data - Shower fittings package

Approvals

CE marking, BEAB.

Form

Dual outlet concealed shower head.

Materials

-

Body

Metal and plastic.

Finish and colour

Chrome plated.

Flow rate (maximum)

10–16 L/min.

Water supply temperature (maximum)

65°C.

Guidance for specification option:

Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).

Pressure

1 - 7 bar.

Shower head

500 x 200 x 163 mm.

Guidance for specification option:

L x W x H.

Controller

72 x 72 x 36 mm.

InletConnectionSize

15 mm push fit.

OutletConnectionSize

15 mm push fit.

Centres

48 mm.

Manufacturer guidance

Valve inlet centres.

Position

Hot right, cold left.

System

HP, combi system.

HoseDiameter

90 mm.

Sustainability data

Country of material origin

Malaysia

Guidance for specification option:

Also United Kingdom.

Country of product manufacture

Malaysia

Guidance for specification option:

Also United Kingdom.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

BEAB

BEAB

E1197 Issue 11 QZSB.A1.BV.DVBTX.20, QZSB.A1.BV.DVFW.20

BEAB

BEAB

22368 Issue 3 QZSB.A2.BV.DVBTX.20, QZSB.A2.BV.DVFW.20

BEAB

BEAB

E11500 Issue 12 QZSB.A2.BV.DVBTX.20, QZSB.A2.BV.DVFW.20

WRAS

WRAS

WRAS Approval Certificate 2203037 - 704415 Smart Valve

WRAS

WRAS

Aqualisa Smart Valve_Approved Aqualisa_Certificate_2209016

WRAS

WRAS

Aqualisa WRAS Approval Certificate 2211904

WRAS

WRAS

ISD, OPQ,QZST,UTQ-Aqualisa Packed Product Approval-2211907-Certificate
