Pedestal for Paving and Decking - WB 7 mm PVC Pad

Verified by manufacturer 5 months ago

Wallbarn Ltd Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

7mm high PVC disc for use with paving slabs and timber decking

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

PVC discs designed for areas with restricted height thresholds to raise paving or decking off the surface but still offer sufficient drainage.

Description

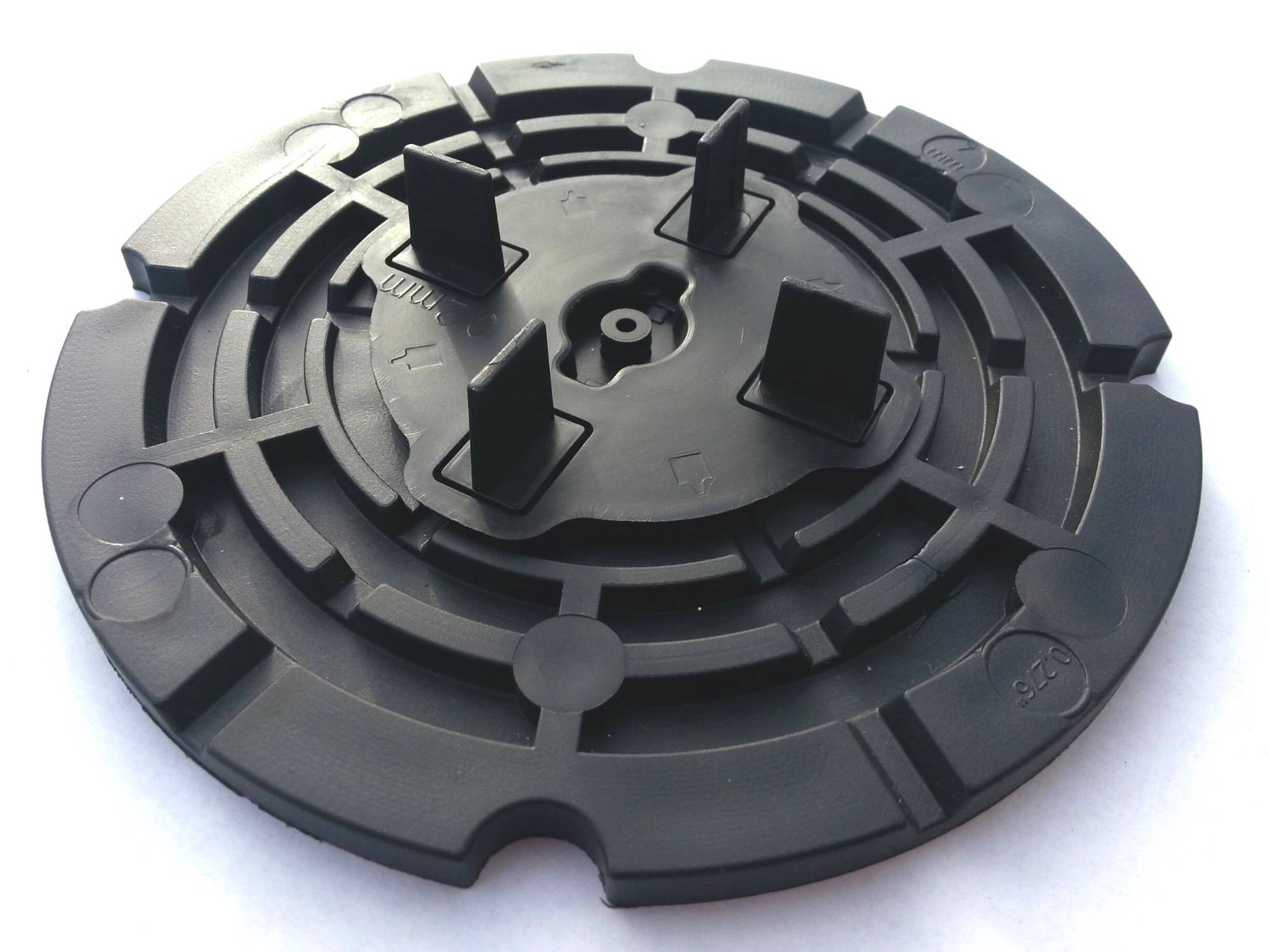

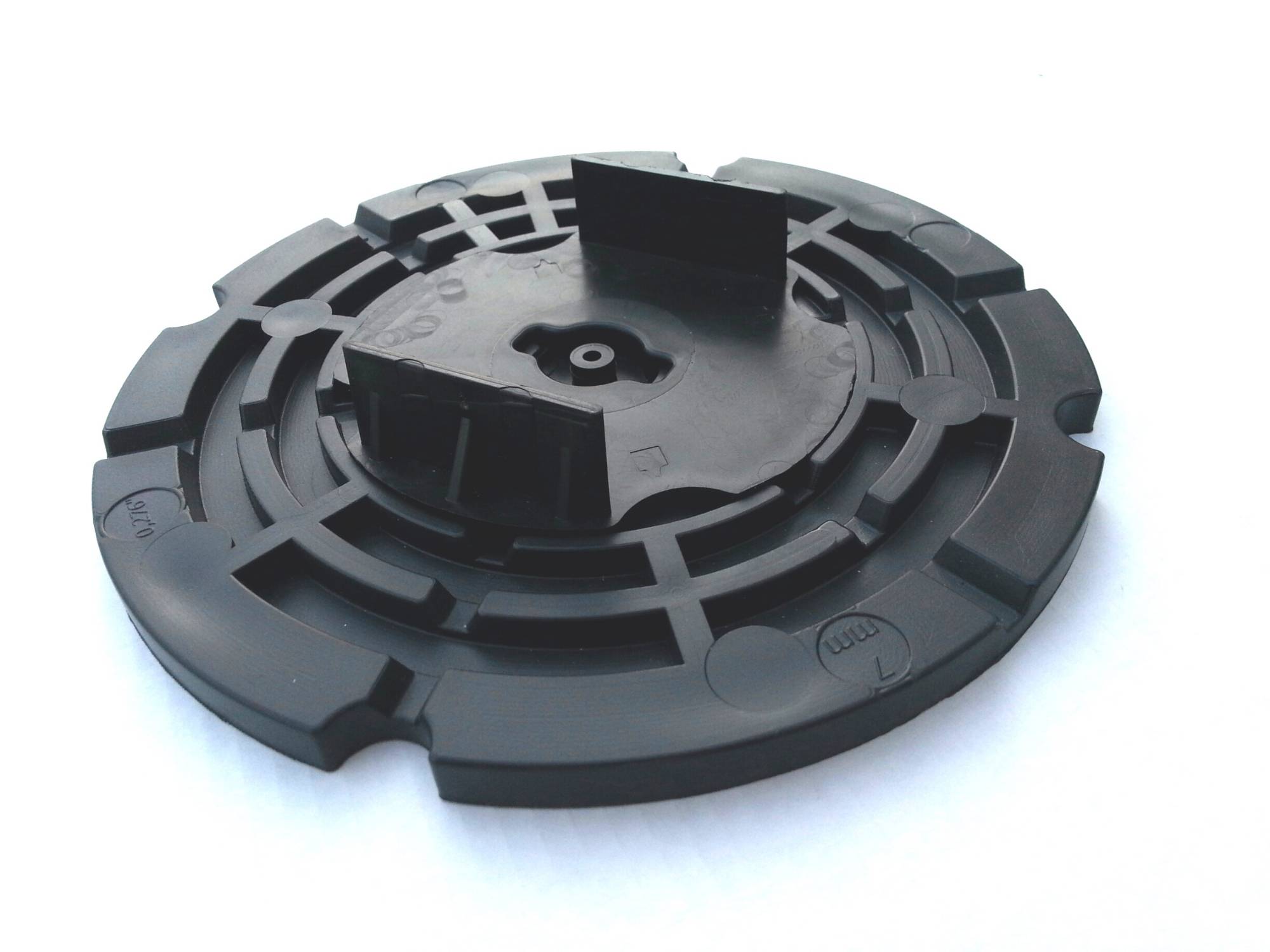

Polyvinyl chloride (PVC) disc for use with paving slabs and timber decking complete with integrated spacing lugs.


Features and benefits:

  • The pad will lift paving off the surface by 7 mm, making it suitable for retro-fit projects and areas with very low height thresholds.
  • The upper surface of the pad contains drainage channels which run out to the edges of the circular disc, meaning that rainwater will drain off the upper surface of the disc effectively.
  • The plastic positioning lugs are incorporated into the pad as they plug into a small hole in the centre of the pad or disc.
  • Paving or decking for very tight height thresholds possible.
  • Correct positioning of paving slabs hold them securely in place.
  • Uniform spacing between paving.
  • Gives separation of paving slabs from the base structure.
  • Accommodates water drainage below the paving level.
  • Sound insulation.
  • Resistant to extreme hot and cold weather conditions.
  • Tough flexible material.
  • Labour saving and cost saving.
  • Clean and tidy, avoids the need for sand and cement.
  • Easy maintenance, inspection and repair.
  • Can support 800 kg loads.

General information

Color

Black

Finish

Matt

Material

Polyvinyl chloride

Guidance for specification option:

 PVC.

Shape

Circle

Length

150 mm

Width

150 mm

Height

7 mm

Warranty description

15 year

Guidance for specification option:

Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms & conditions of supply.

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Product range

Substructure for Paving and Decking Systems
Pedestals for Paving and Decking

Specification data - Decking and paving pedestals

Pedestal type

Non-adjustable.

Grade

800 kg.

Material

PVC.

Execution

Installing decking and paving pedestals.

Lug width

Manufacturer's standard.

Guidance for specification option:

TD decking head only.

10 x 2 mm.

Guidance for specification option:

Standard, paving heads only.

10 x 4 mm.

Guidance for specification option:

Standard, paving heads only.

20 x 2 mm.

Guidance for specification option:

Standard, paving heads only.

20 x 4 mm.

Guidance for specification option:

Standard, paving heads only.

Show more

Headpiece dimension

D headpiece - Two lugs, 14 mm high, 60 mm apart.

TD Plus headpiece with fixing points.

Drainage holes

Six.

Head diameter

150 mm.

Height:

7 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

3

Revit
-

3

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Brochure - Plastic Pedestals Overview

Brochure - Plastic Pedestals Overview

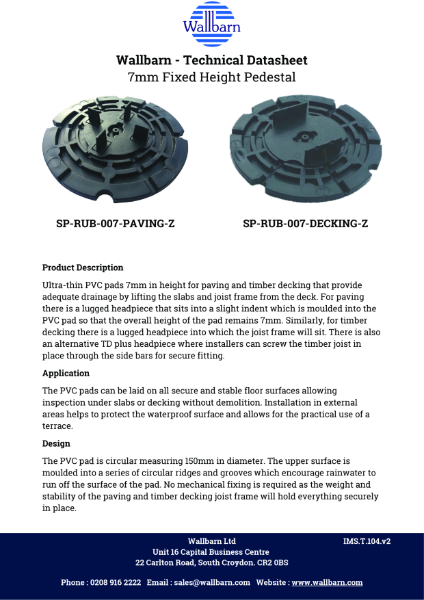

Datasheet - 7mm PVC pad for Paving and Decking

Datasheet - 7mm PVC pad for Paving and Decking

O & M Manual - Fixed Height Pedestals (Non Fire Rated)

O & M Manual - Fixed Height Pedestals (Non Fire Rated)

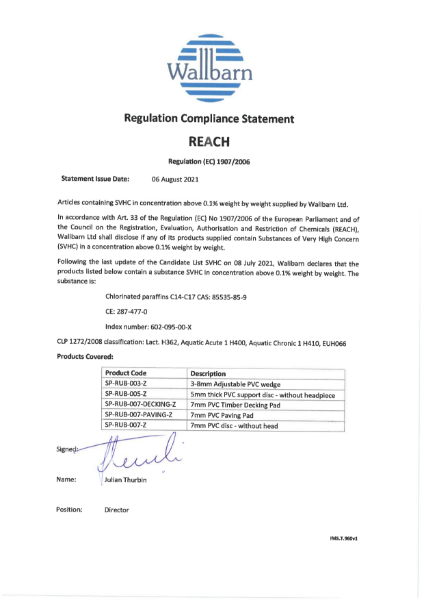

Datasheet - PVC Pad REACH statement (3-8mm, 5mm & 7mm)
