Adjustable Pedestal for Paving - WB Minipad

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Lower height pedestals for paving covering heights from 10mm to 40mm

Jump to:
+44 (0)20 8916 2222 Website

Application

  • Headpieces available for timber decking or paving.
  • Not suitable for projects that need to meet Class A specification (see our Wallbarn's fire rated pedestals/products).

Description

Smaller height pedestals, suitable for suspended paving systems.


Features and benefits:

  • Headpieces available for timber decking or paving.
  • Four lugs on headpiece for positioning slabs.
  • Manufactured from virgin fibre polypropylene, supplied as a mounted unit in boxes together.
  • Normal weight tolerance: 683 kg; break point: 1171 kg.
  • Temperature tolerance: +75°C to -40°C.
  • Adjustable height range from 10 mm to 40 mm.
  • Suitable for overlaying and very tight height clearances where a fall is still required.
  • Very small, irregular or multiple changes in height can be accommodated using the twist mechanism on the stem.
  • All the timber is raised off the deck, avoiding damage to the membrane and keeping all timber out of standing water.
  • The weight of the paving slab or tile holds the whole system in place.

General information

Color

Black

Finish

Matt

Material

Polypropylene

Shape

Circle

Length

150 mm

Width

150 mm

Height

Bespoke

Manufacturer guidance

10-25mm; 22-30mm; 28-40mm

Warranty description

15 year

Guidance for specification option:

Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms and conditions of supply.

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Product range

Substructure for Paving and Decking Systems
Pedestals for Paving and Decking

Specification data - Decking and paving pedestals

Pedestal type

Adjustable.

Grade

683 kg.

Guidance for specification option:

Loading.

Material

Polypropylene.

Height adjustment range

Minipad 10 (with one extension plate): 10–20 mm.

Minipad 10-25 (with two extension plates): 10–25 mm.

Minipad 22: 22–30 mm.

Minipad 28: 28–40 mm.

TD Minipad 10 (with one extension plate): 10–20 mm.

Show more

Lugs

Manufacturer's standard.

Guidance for specification option:

TD decking heads only: Two lugs, 14 x 2 mm, 60 mm apart.

10 x 2 mm.

Guidance for specification option:

Standard, paving heads only.

10 x 4 mm.

Guidance for specification option:

Standard, paving heads only.

20 x 2 mm.

Guidance for specification option:

Standard, paving heads only.

20 x 4 mm.

Guidance for specification option:

Standard, paving heads only.

Show more

Slope correctors

Not required.

Required.

Guidance for specification option:

Consult manufacturer's literature and insert requirements.

Dimensions

Head diameter: 150 mm; Base plate diameter: 150 mm; Base plate diameter: 150 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy

Material

Polypropylene

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %

Third party certifications

BIM objects

Platform Compatible Version
IFC
-

8

Revit
-

8

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001

Literature

Brochure - Plastic Pedestals Overview

Brochure - Plastic Pedestals Overview

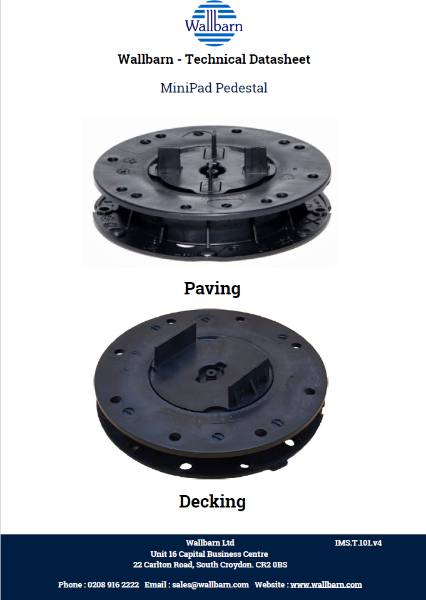

Datasheet - MiniPad Adjustable Pedestals
