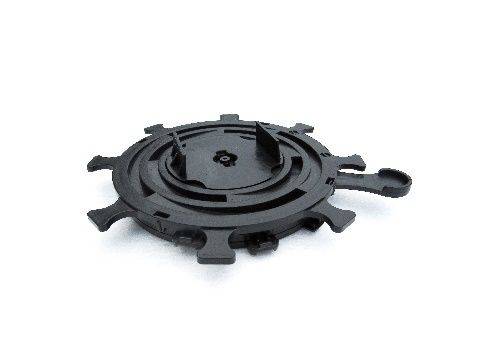

Adjustable Pedestal for Decking - WB Minipad (TD)
Verified by manufacturer 5 months ago
ISO 9001 Quality Management
Certificate type
Adjustable low height pedestals covering 10mm to 40mm
Application
Joist rests between cradle headpiece without need for mechanical fixings.
Description
Special smaller height pedestals, suitable for suspended decking systems.
Features and benefits:
- Headpieces available for timber decking or paving.
- Manufactured from virgin fibre polypropylene, supplied as a mounted unit in boxes together.
- Normal weight tolerance: 683 kg; break point: 1171 kg.
- Temperature tolerance: +75°C to -40°C.
- Adjustable height from 10 to 40 mm.
- Suitable for overlaying and very tight height clearances where a fall is still required.
- Very small, irregular or multiple changes in height can be accommodated using the twist mechanism on the stem.
- All the timber is raised off the deck, avoiding damage to the membrane and keeping all timber out of standing water.
- The weight of the paving slab or tile holds the whole system in place.
General information
Color | Black |
Finish | Matt |
Material | Polypropylene |
Shape | Other |
Length | 150 mm |
Width | 150 mm |
Height | Bespoke Manufacturer guidance1-25mm, 22-30mm, 37-40mm |
Warranty description | 15 year Guidance for specification option: Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms and conditions of supply. |
Uniclass | |
CAWS | J21/467 Support system for precast concrete paving slabs J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J31/80 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q37/460 Support pedestals Q55/110 Deck Q55/395 Support pedestals |
Product range |
Specification data - Decking and paving pedestals
Pedestal type | Adjustable. |
Grade | 683 kg.Guidance for specification option: Loading. |
Material | Polypropylene. |
Height adjustment range | Minipad 10 (with one extension plate): 10–20 mm. Minipad 10-25 (with two extension plates): 10–25 mm. Minipad 22: 22–30 mm. Minipad 28: 28–40 mm. TD Minipad 10 (with one extension plate): 10–20 mm. |
Lugs | Manufacturer's standard. Guidance for specification option: TD decking heads only: Two lugs, 14 x 2 mm, 60 mm apart. 10 x 2 mm. Guidance for specification option: Standard, paving heads only. 10 x 4 mm. Guidance for specification option: Standard, paving heads only. 20 x 2 mm. Guidance for specification option: Standard, paving heads only. 20 x 4 mm. Guidance for specification option: Standard, paving heads only. |
Slope correctors | Not required. Required. Guidance for specification option: Consult manufacturer's literature and insert requirements. |
Dimensions | Head diameter: 150 mm; Base plate diameter: 150 mm; Side bar height: 40 mm. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Italy |
Country of product manufacture | Italy |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 25 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 8 |
 IFC | - | 8 |
Third party certifications
ISO 9001 Quality Management
ISO 9001
Literature
Brochure - Plastic Pedestals Overview

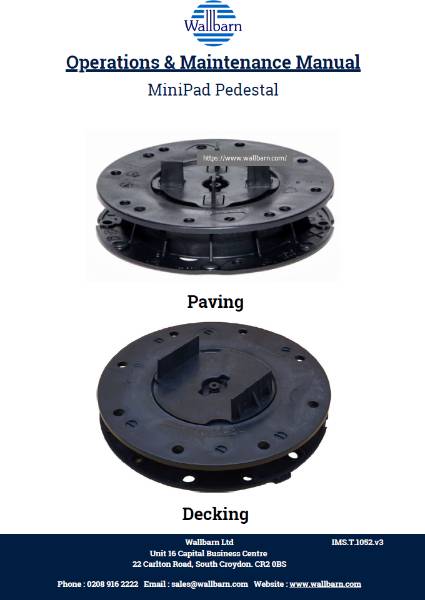

O & M Manual - MiniPad Adjustable Pedestals

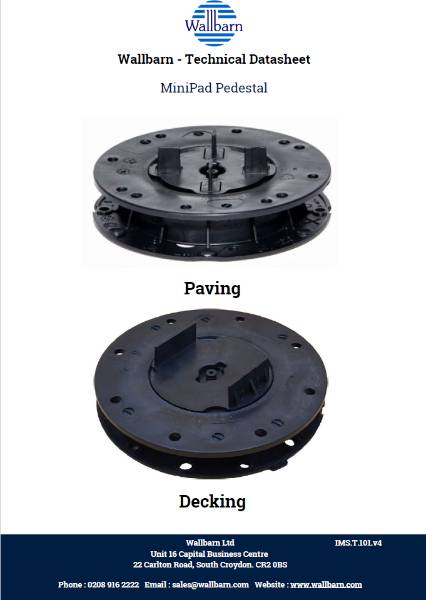

Datasheet - MiniPad Adjustable Pedestals
