Pedestal for Paving - 9mm Rubber Pad

Verified by manufacturer 2 months ago

Wallbarn Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

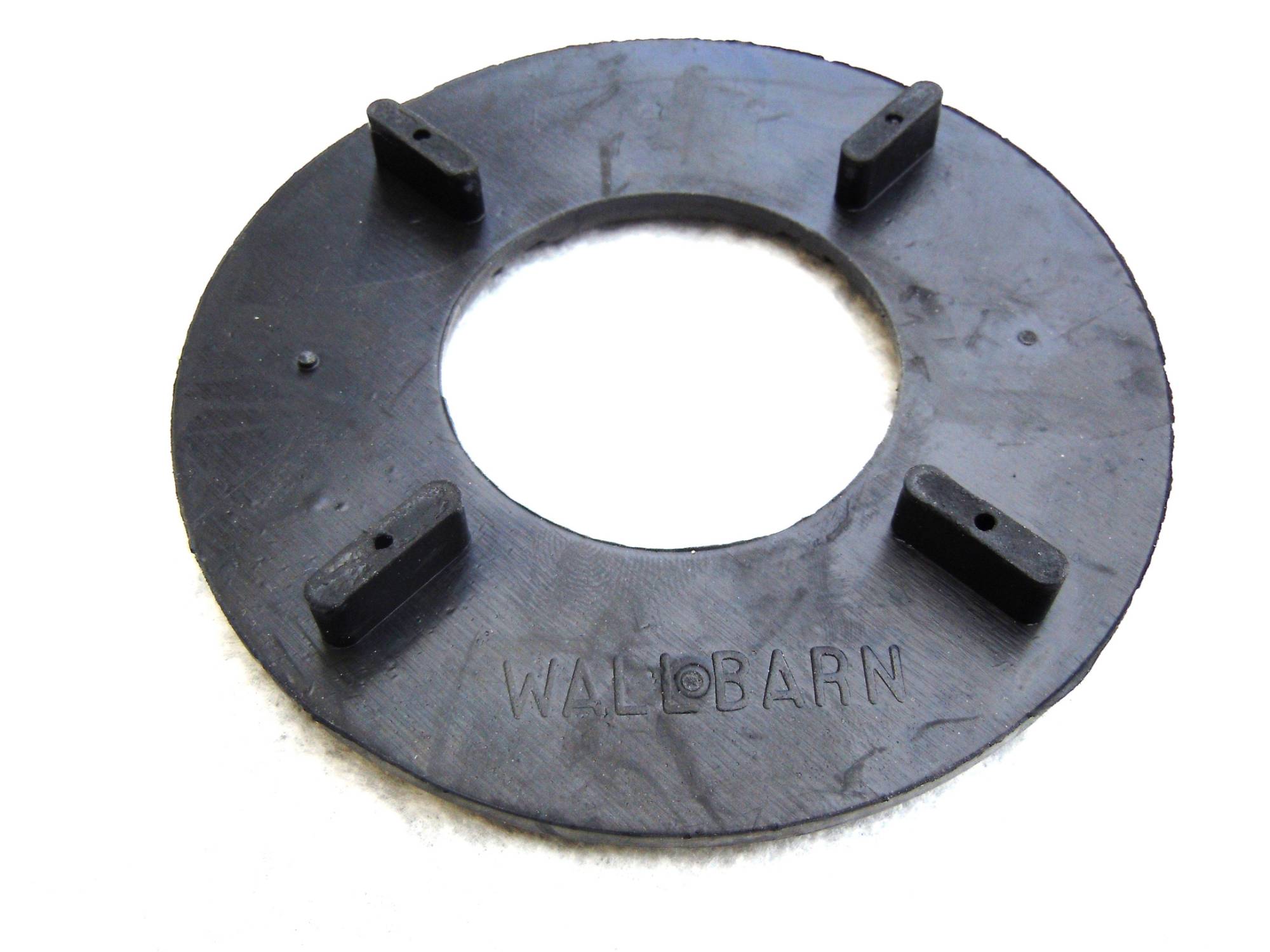

Rubber compound ring-shaped paving pad at 9mm height

Jump to:
BOS
+44 (0)20 8916 2222 Website

Application

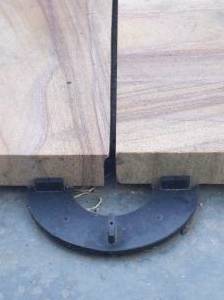

To raise paving slabs off the deck to improve drainage and prevent damage to membranes. Suitable for softer membranes such as single ply, built-up and hot melt membranes, and asphalt.

Description

Rubber discs designed for areas with restricted height thresholds to raise paving off the surface but still offer sufficient drainage. Soft, flexible material with rounded to edges to prevent point loading and digging into sub-surface.


Features and benefits:

  • Tough and flexible.
  • Very high weight tolerance.
  • Offers superior sound and vibration qualities, particularly suitable for residential applications.
  • Good levels of elasticity and will not slip on the surface beneath during installation.
  • Soft profile, rounded edges and flexible makeup will not dig into surface.
  • Anti-vibration properties.

General information

Color

Black

Finish

Matt

Material

Rubber

Shape

Circle

Length

120 mm

Width

120 mm

Height

9 mm

Warranty description

15 year

Guidance for specification option:

Limited warranty for temperature and weight tolerance if installed for the correct purpose and within the recommended guidelines - see Wallbarn terms & conditions of supply.

Uniclass

Pr_20_85_47_22 Decking and paving pedestalsPrimary

CAWS

J21/467 Support system for precast concrete paving slabs

J21/85 Precast concrete paving slabs

J31/370 Precast concrete paving slabs

J31/375 Paving tiles

J31/377 Support system for paving slabs or tiles

J31/80 Precast concrete paving slabs

J41/467 Support system for precast concrete paving slabs

J41/90 Precast concrete paving slabs

J42/467 Support system for precast concrete paving slabs

Q37/460 Support pedestals

Q55/110 Deck

Q55/395 Support pedestals

Product range

Pedestals for Paving and Decking

Specification data - Decking and paving pedestals

Pedestal type

Non-adjustable.

Grade

8000 kg.

Material

Flexible, high quality synthetic rubber compound.

Accessories

Not required.

2.5 mm shock absorbing rubber shim.

3–8 mm wedge shim beneath pad.

1 mm levelling shim.

2 mm levelling shim.

3 mm levelling shim.

Dimensions

Height: 9 mm; Head diameter: 120 mm; Lug width: 5 mm; Lug height: 9 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

China

Country of product manufacture

China

Material

Rubber

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

30 %

Third party certifications
