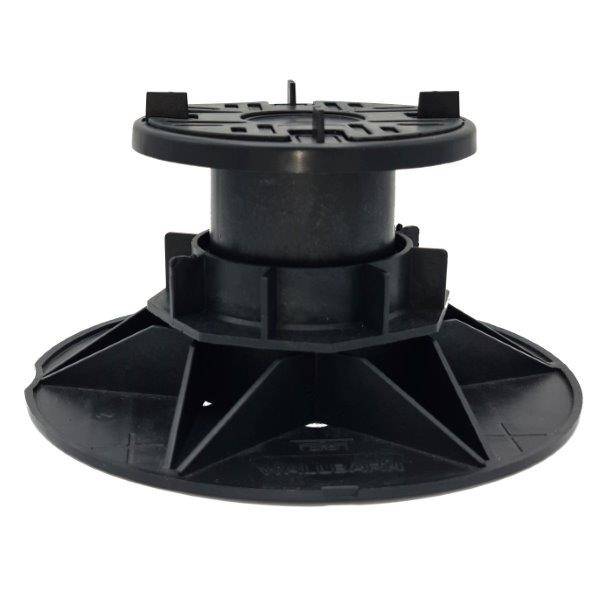

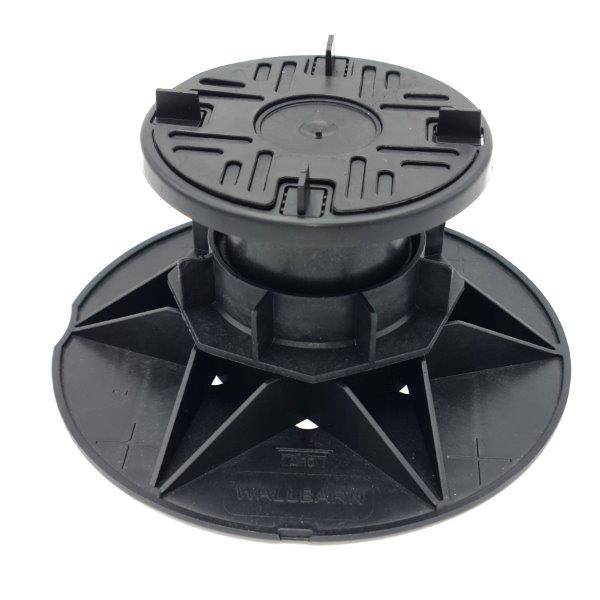

Adjustable Pedestal for Paving and Decking - WB Universal

Name: Adjustable Pedestal for Paving and Decking - WB Universal
Brand: Wallbarn Ltd
SKU: 8daQKyoQjksNbffxFE7H2y

Verified by manufacturer 5 months ago

Third party certifications:

Pedestal covering Heights from 35 to 380mm

Jump to:

Application

Adjustable pedestal supports for paving and decking with integrated acoustic shim.
Not suitable for projects that need to meet Class A specification (see our other fire rated pedestals/products)

Adjustable height pedestal with telescopic stem for for suspended paving or decking systems.

Features and benefits:

Universal headpiece which can hold slabs and timber joists.
One headpiece can be used for both suspended paving and decking systems.
Integrated shim on headpiece to improve grip and provide sound and vibration properties.
Suspended system - no mechanical fixings are required.
Headpiece lugs positions corners of paving slabs between them and can also house a joist framework which in turn supports deckboards.
Virgin fibre polypropylene injection moulded pedestals without fillers.
Integrated acoustic shim pre-fitted to headpiece.
For use with concrete flags, natural stone slabs, porcelain tiles, timber tiles, aluminium decking, timber decking and composite decking systems.
Superior strength: normal weight tolerance: 683 kg; break point: 1171 kg.
Temperature tolerance: +75°C to -40°C.
Improves the drainage and ventilates the structural decks.
Cleaner, faster installation of paving or decking on structural decks.
Paving / decking is raised out of standing water meaning less slip hazards.
Telescopic threads mean very small, irregular or multiple changes in height can be accommodated by twisting the stem.
Suspended, open joint system. Tiles or decking can be lifted at any time without major disruption.

Color	Black
Finish	Matt
Material	Polypropylene
Shape	Circle
Length	200 mm
Width	200 mm
Height	Bespoke Manufacturer guidance 35-50mm, 50-70mm, 65-100mm, 95-130mm, 125-160mm, 155-190mm, 185-220mm, 85-135mm, 125-215mm, 210-380mm
Warranty description	15 year Guidance for specification option: Limited warranty

Uniclass	Pr_20_85_47_22 Decking and paving pedestalsPrimary
CAWS	J21/467 Support system for precast concrete paving slabs J21/85 Precast concrete paving slabs J31/370 Precast concrete paving slabs J31/375 Paving tiles J31/377 Support system for paving slabs or tiles J31/80 Precast concrete paving slabs J41/467 Support system for precast concrete paving slabs J41/90 Precast concrete paving slabs J42/467 Support system for precast concrete paving slabs Q37/460 Support pedestals Q55/110 Deck Q55/395 Support pedestals

Product range	Substructure for Paving and Decking Systems Pedestals for Paving and Decking

Pedestal type	Adjustable.
Grade	683 kg per unit. Guidance for specification option: Break point: 1171 kg.
Material	Polypropylene.
Adjustment	35–50 mm. 50–70 mm. 65–100 mm. 95–130 mm. 125–160 mm. 155–190 mm. 185–220 mm. 210–245 mm. 240–275 mm. 270–305 mm. 330–365 mm. 85–135 mm. 125–215 mm. 210–380 mm.
Accessories	Not required. Metal plate for edging and paving up to walls. 150 mm diameter baseplates. Guidance for specification option: For paving up to the upstand or edge. Flat headed supports. Guidance for specification option: Headpieces without positioning lugs for placing beneath the centre of thinner tiles. Slope corrector angle, 1 %. Slope corrector angle, 2 %. Slope corrector angle, 3 %.

Dimensions	Head diameter: 120mm; Base plate diameter: 200 mm standard; Lug height: 10 mm.
Support	Flat headed supports. Guidance for specification option: For paving and natural stone where support is required beneath the centre of the slab. Two lugged headpieces also available for paving up to the edge, contact manufacturer for more information.
Temperature	Temperature tolerance: +75°C to -40°C.

Contains Red List materials	No
Country of material origin	Italy
Country of product manufacture	Italy
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
