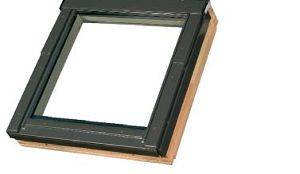

Natural Pine Centre Pivot Roof Window (FTP-V)

Verified by manufacturer 2 months ago

Fakro GB Ltd

Centre pivoting with handle placed at the bottom, top-safe anti-burglary system and semi automatic air vent.

Jump to:
+44 (0)1283 554755 Website

Application

Suitable for roofs of 15–90º pitch.

Description

Centre pivot roof window with handle placed at the bottom, top-safe anti-burglary system and semi automatic air vent.


Features and benefits:

  • V40P air inlet gives airflow of 20–49 m³/ hour. Sash rotates through 180º to allow for cleaning.
  • Manufactured in vacuum impregnated close grained redwood.
  • Available in finishes that include natural pine, white acrylic lacquer and white polyurethane lacquer which is recommended for use in areas of high humidity.
  • Installed U value of 1.2 W/m²K overall (1.0 W/m²K glass).
  • Also available in triple glazed with an installed U value of 0.97 W/m²K overall (0.5 W/m²K glass).
  • Standard internal frames and sashes are finished as detailed above, but can be finished with lacquer from the Lazurite range which includes afromosia, light oak, mahogany, teak or walnut.
  • Alternatively they can be painted using most solid colours from the RAL spectrum.

General information

Color

White

Beige

Brown

Clear

Other

Finish

Acrylic

Material

Wood

Timber

Shape

Rectangle

Warranty description

Ten year

Guidance for specification option:

For windows.

20 year

Guidance for specification option:

For glazing.

Uniclass

Pr_30_59_98_97 Wood frame roof window unitsPrimary

CAWS

L10/46 Roof windows

L10/480 Roof windows

Specification data - Wood frame roof window units

Product performance

-

Whole window U-value

Guidance for specification option:

Glazing U-value: 1.0 W/m²K.

Whole window U-value: 1.2 W/m²K.

Manufacturer guidance

for standard glazing (Insulated, P2):

Frame

-

Finish as delivered

Water based acrylic lacquer, clear pine.

Guidance for specification option:

FTP-V and FTP-V Electro, standard finish P2 or P5 anti burglary glazing.

Water based acrylic lacquer, afromosia.

Guidance for specification option:

FTW-V and FTW-V Electro.

Water based acrylic lacquer, light oak.

Guidance for specification option:

FTW-V and FTW-V Electro.

Water based acrylic lacquer, mahogany.

Guidance for specification option:

FTW-V and FTW-V Electro.

Water based acrylic lacquer, teak.

Guidance for specification option:

FTW-V and FTW-V Electro.

Water based acrylic lacquer, walnut.

Guidance for specification option:

FTW-V and FTW-V Electro.

Painted, RAL.

Guidance for specification option:

Insert RAL colour reference, FTP-V and FTP-V Electro.

Polyurethane varnish, white.

Guidance for specification option:

White, FTU-V and FTU-V Electro. P2 or P5 anti burglary glazing.

Manufacturer guidance

Internal frame and sash:

Ventilator

V40P semi automatic air vent.

Guidance for specification option:

V40P air inlet gives air flow of 20–49 m³/ hour. Sash rotates through 180º to allow for cleaning.

Glazing or infill

-

Composition

Insulated, laminated glass inner - P2.

Guidance for specification option:

  • Anti-burglary as standard.
  • 4 mm toughened glass outer, 16 mm argon filled cavity, 4 mm toughened glass inner with low e coating facing into cavity.

Insulated, acoustic glass inner - R1.

Guidance for specification option:

  • 6 mm toughened glass outer, 12 mm krypton filled cavity, 6.6 mm laminated glass inner with sound proofing epoxy resin between the two sheets and low e coating facing into the cavity.
  • Airborne sound reduction, R1: 41 dB.

Insulated, obscured glass outer - O2.

Guidance for specification option:

4 mm toughened glass outer with embossed pattern, 14 mm argon filled cavity, 6.6 mm laminated inner pane with low e coating facing into cavity.

Insulated, reflective glass outer - H.

Guidance for specification option:

4 mm toughened glass outer, 15 mm argon filled cavity, 6.8 mm laminated inner pane with a 1.52 mm layer of PVB (Polyvinyl butyral) between and with low e coating facing into cavity.

Insulated, security glazing - P4.

Guidance for specification option:

  • 4 mm tinted, toughened glass outer, 14 mm argon filled cavity, 6.6 mm laminated inner pane with low e coating facing into cavity.
  • Tints: Blue W2, brown W4, grey W6, green W8.

Insert tint.

Insulated, triple glazed - P5.

Guidance for specification option:

4 mm toughened glass, 10 mm argon filled cavity, 4 mm toughened middle pane, 8 mm argon filled cavity, 6.6 mm laminated inner pane with low e coating facing into the cavity.

Insulated, tinted glass outer - W.

Guidance for specification option:

  • 4 mm tinted, toughened glass outer, 14 mm argon filled cavity, 6.6 mm laminated inner pane with low e coating facing into cavity.
  • Tints: Blue W2, brown W4, grey W6, green W8.

Insert tint.

Operation

-

Type

Electronic Z-Wave with remote control.

Guidance for specification option:

As standard.

Electronic Z-Wave with wall switch.

Manual.

Rain sensor.

Guidance for specification option:

Requires electronic operation.

Smoke ventilation system.

Guidance for specification option:

Size 10 - 1140 x 1180 mm.

Wind sensor.

Guidance for specification option:

Requires electronic operation.

Accessories

Not required.

Control rod, ZST.

Guidance for specification option:

Manual operation of internal blinds.

Control rod, ZSZ.

Guidance for specification option:

Manual operation of external awning blinds.

Insect screen, AMS.

Guidance for specification option:

Glass fibre netting screen on aluminium runners.

Window lock, ZBL.

Window opening restrictor, ZBB.

External cladding

Aluminium, polyester powder coated, RAL 7022.

Guidance for specification option:

Brown as standard.

Aluminium, polyester powder coated, RAL.

Guidance for specification option:

Insert RAL colour reference.

Copper.

Titanium zinc.

Window

01.

Guidance for specification option:

550 x 780 mm.

02.

Guidance for specification option:

550 x 980 mm.

03.

Guidance for specification option:

660 x 980 mm.

04.

Guidance for specification option:

660 x 1180 mm.

05.

Guidance for specification option:

780 x 980 mm.

Show more

Manufacturer guidance

Number/ Size:

Roof window code

FNP.

Guidance for specification option:

Non-opening available in all sizes to order.

FTP.

Guidance for specification option:

Non vented - for use in air tight construction.

FTP-V.

Guidance for specification option:

Vented, natural pine lacquer. Standard product.

FTW-V.

Guidance for specification option:

Vented, white acrylic lacquer. Standard product.

FTW-V Z-Wave Electric.

Show more

Flashing

EEJ.

Guidance for specification option:

Sheet metal roofing for recessed application. Please state metal type/manufacturer.

EEV.

Guidance for specification option:

Sheet metal roofing. Please state metal type/manufacturer.

EFW.

Guidance for specification option:

Flat roof kerb upstand & claddings.

EHA.

Guidance for specification option:

Profiled roof coverings up to 90 mm deep. To suit roof pitch 10-75° raises rear of window 10°.

EHN.

Guidance for specification option:

Profiled roof coverings up to 90 mm deep.

Show more

Manufacturer guidance

Flashing:

Flashings are coded for applications as follows:

– First letter:

E: Single window flashing.

– Second letter:

Denotes the compatible roof covering.

  • E: For Zinc or similar standing seam roof covering.
  • H: For high profile interlocking roof coverings up to 90 mm deep.
  • L: For non interlocking slates up to 8 mm thick.
  • P: For non interlocking plain peg tiles.
  • S: For thin sheet/roofing felt/flat metal sheet roof covering.
  • Z: For profiled interlocking roof covering up to 45 mm deep.

– Third letter:

Denotes the position of the roof window in relation to the roof.

  • A: Roof window up to 10° out of plane of roof. 15–90° pitches. A special application for use in low pitch roofs below 15° (consult Fakro Technical for further details).
  • J: Recessed style applications sitting the window 30 mm below the standard plane. 20–90° pitches.
  • N: Placing the window 30 mm above standard plane to accommodate high profile roof covering 15–90° pitches.
  • T: Insulated flashing for roof windows. 15–90° pitches.
  • V: Placing the window at standard plane. 15–90° pitches, except for EPV which is limited to 25–90° pitches.
  • W: For flat roof applications 15° out of plane of roof: flat roofs 0–15° pitches.


Specialized flashings are available for horizontal and vertical window groups and combinations as well as windows installed on either side of the ridge. Consult Fakro for guidance and availability.

Material and finish

Aluminium with polyester varnish, RAL 7022.

Guidance for specification option:

Brown as standard.

Aluminium with polyester varnish, RAL.

Guidance for specification option:

Insert RAL colour reference.

Blind

Not required.

AJP.

Guidance for specification option:

Venetian blind. Insert colour reference.

AJP-B.

Guidance for specification option:

Venetian blind with remote adjustment of angle of slats. Insert colour reference.

AJP-E.

Guidance for specification option:

Venetian blind with electronic operation. Insert colour reference.

AMZ.

Guidance for specification option:

External awning blind with manual operation. Insert colour reference.

Show more

Manufacturer guidance

Consult Fakro for availability of fabrics and colours; insert colour reference where necessary. Sample swatches are available.


External roller shutters are supplied in dark or light grey.

Other requirements

Not required.

Air-permeable underfelt collar, XDP.

Guidance for specification option:

Collar for sealing the window frame to the roofing underlay.

Airtight flashing, XDS.

Guidance for specification option:

Polyethylene membrane for joining the vapour control layer in the roof construction to the window frame. Supplied with single and double sided adhesive tapes.


Duet slat, XSP.

Guidance for specification option:

  • Pine slats for internal finishing of junctions between vertically joined roof windows.
  • Lacquered pine finish.

Duet slat, XSW.

Guidance for specification option:

  • Pine slats for internal finishing of junctions between vertically joined roof windows.
  • White finish.

Show more

Manufacturer guidance


Duet slats:

Insulation band, XWT:

Internal lining, XLW:

Sustainability data

Contains Red List materials

No

Country of material origin

Poland

Country of product manufacture

Poland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

61.3 kg CO₂ eq/kg

Self declared

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

56 %
