Verified by manufacturer 2 months ago
300SSC

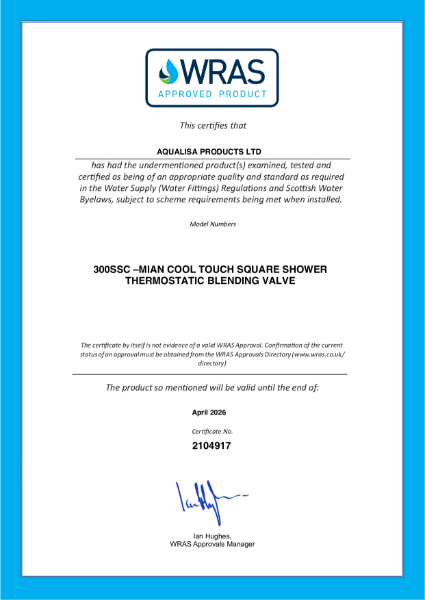

WRAS
Certificate type

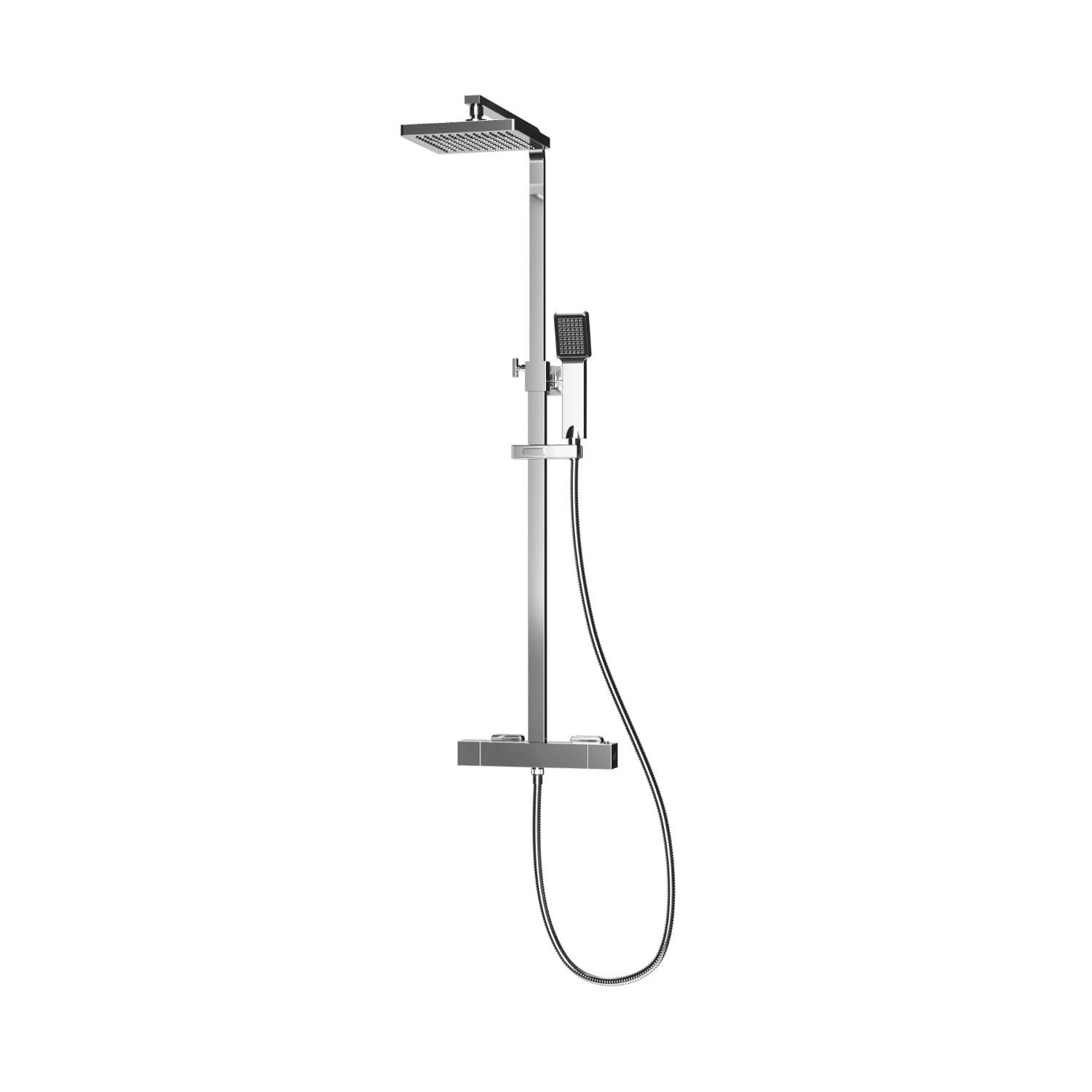

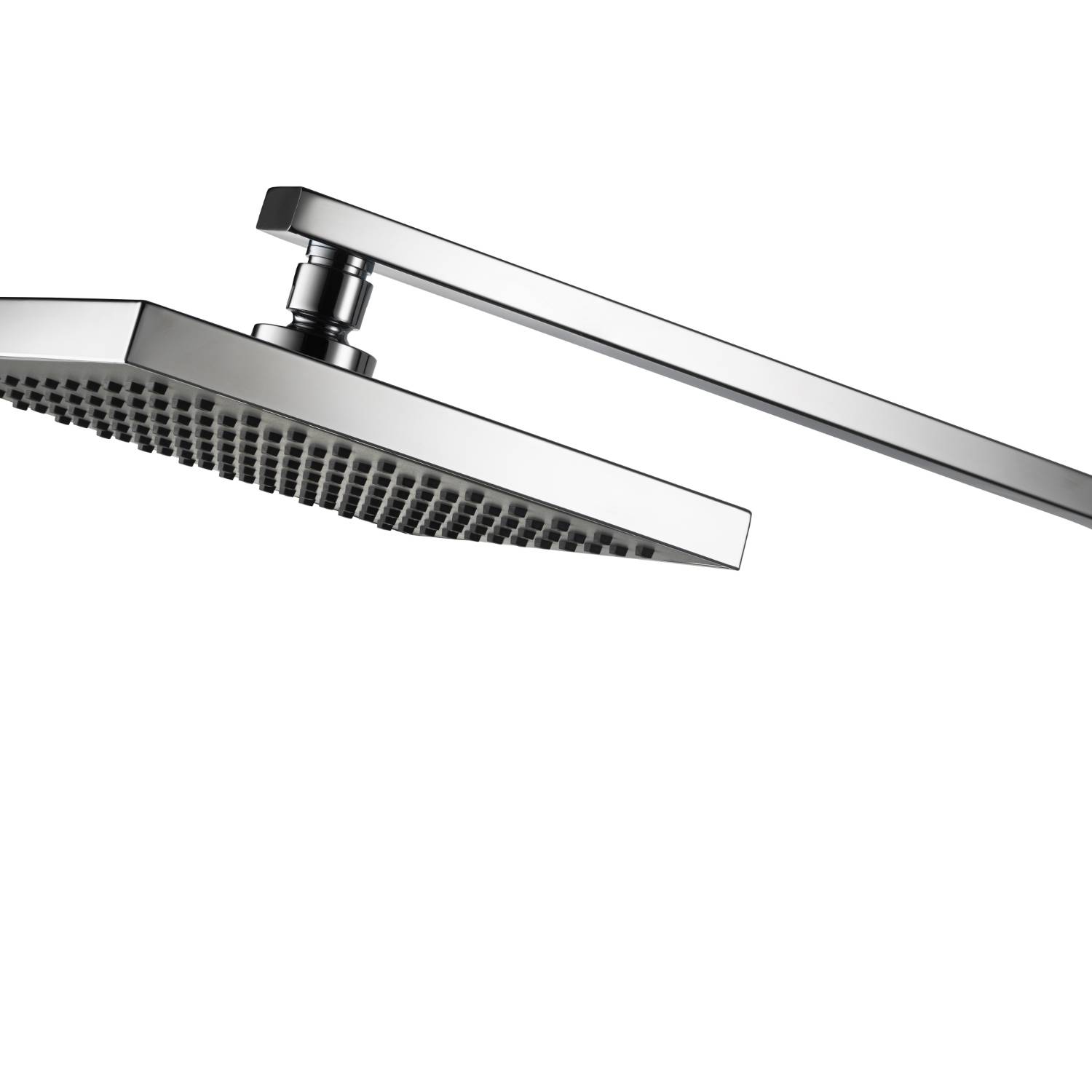

Mian square shower column (cool touch) + Eco version
Suitable for high pressure systems only.
A contemporary square dual outlet bar mixer valve for a choice of shower experiences that’s suitable for multi-use family bathrooms. The one-spray adjustable handset easily diverts to the generous overhead drencher.
Features and benefits:
- 300SSC and 300SSCECO.23:
- 300SSCECO.23 only:
Color | Silver |
Finish | Chrome |
Material | Brass Metal Plastic |
Shape | Other |
Length | 1500 mm Manufacturer guidanceHose length. |
Width | 65 mm Guidance for specification option: Handset width. 200 mm Guidance for specification option: Fixed shower head width. |
Height | 1180 mm Guidance for specification option: 805—1180 mm. Manufacturer guidanceRail height. |
Warranty description | Five year Guidance for specification option: Valve guarantee. Two year Guidance for specification option: Kit guarantee. |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/41 Shower heads N13/375 Shower units N13/40 Shower units |
Form | Wall-mounted shower mixer valve, flexible hose, spray handset and overhead drencher. |
Materials | |
Body | Brass. |
Finish and colour | Gloss chrome-plated. |
Flow rate (maximum) | 16.53 L/min at 5 bar (handset); 8.32 L/min at 5 bar (fixed head).Guidance for specification option: Minimum 7.18 L/min at 1 bar (handset); 5.13 L/min at 1 bar (fixed head). |
Water supply temperature (maximum) | 65°C.Guidance for specification option: Minimum - 10°C. |
Integral accessories | Guidance for specification option: Consult manufacturer and insert requirements. |
System | High pressure systems. |
HoseLength | 1500 mm. |
Hose | Stainless steel. |
Length | 805—1180 mm. Manufacturer guidanceRail length. |
Rail width | 30 x 18 mm and 26 x 14 mm. |
Shower head | 65 mm (handset); 200 mm (fixed head). |
Spray Patterns | One. |
Arm length | 360 mm. Manufacturer guidanceFixed head arm length. |
Controller | 288 x 93.5 x 59 mm. Manufacturer guidanceController / Valve Unit (W x D x H). |
Control | Bar valve. |
Weight | 4.0930 kg. |
Pressure | 1—5 bar. |
InletConnectionSize | 3/4" threaded. |
OutletConnectionSize | 1/2" threaded. |
Position | Rear. Manufacturer guidanceWater entry point. |
Divert | Yes. |
Power Levels | One. |
Contains Red List materials | No |
Country of material origin | China |
Country of product manufacture | China |
Material | Brass Metal Plastic |
