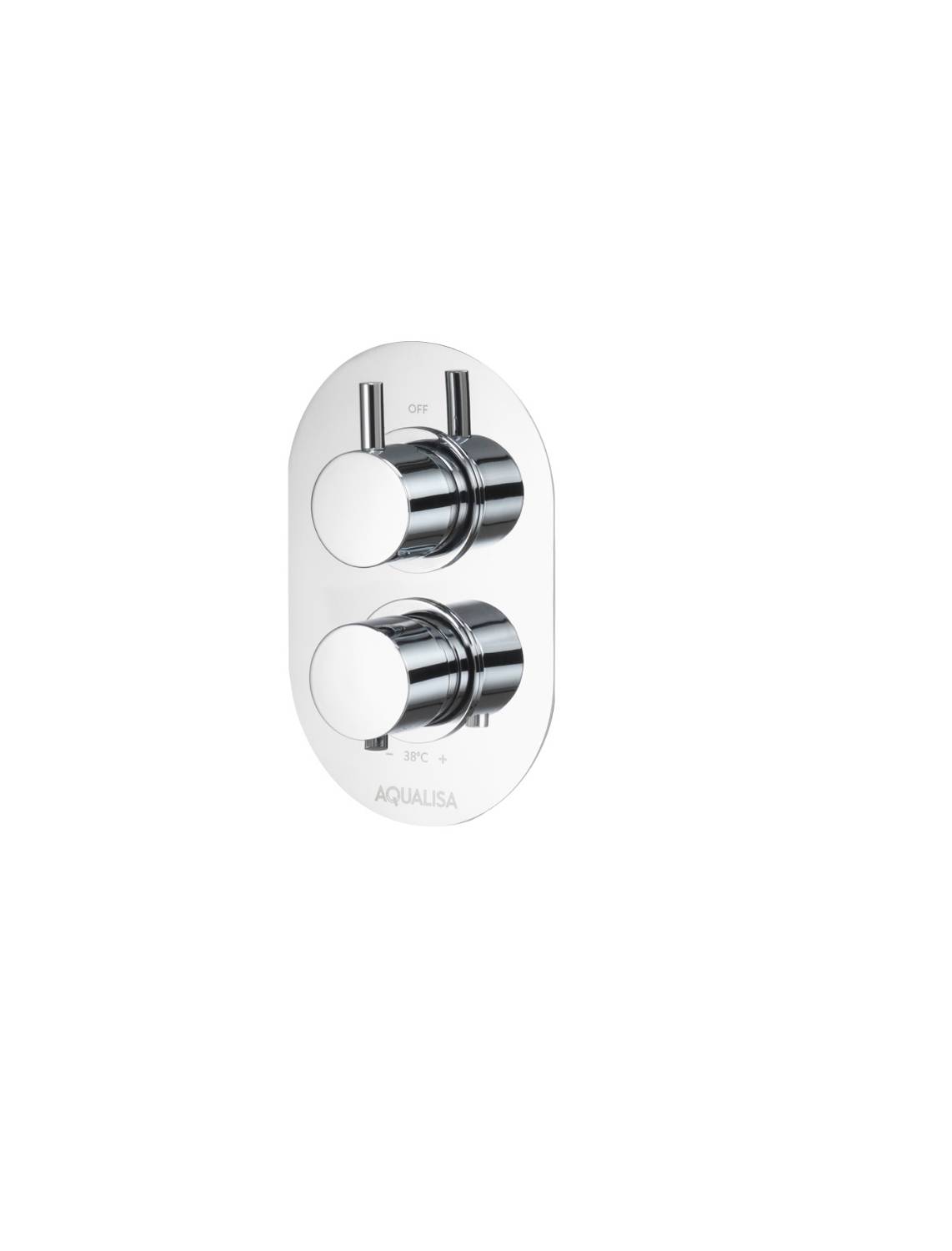

Mian Dual Outlet Concealed Mixer Valve
Verified by manufacturer 6 months ago
SDCV.TRM2.RND
SDCV.TRM2.RND
The striking new Mian range from Aqualisa offers a robust and reliable choice of dual control thermostatic mixer valves. Choice of three trims available.
Application
Suitable for all approved UK water systems.
Description
A robust and reliable choice of dual control thermostatic mixer valves, suitable for all approved UK water systems.
Features and benefits:
- Sculptured one piece brass body with five year guarantee (parts and labour).
- Thermo safe for safe and reliable temperatures.
- Separate On/ Off divert and temperature control.
- Suitable for all approved UK water systems.
- Supplied with mortar guard and all pipework connections.
- Concealing depth from min 69 mm to max 90 mm and fully serviceable from the front.
General information
Color | Silver |
Finish | Chrome |
Material | Brass Metal Plastic |
Shape | Oval Square Round Rectangle |
Size | 200 x 130 x 77.5 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/42 Shower mixer valves N13/375 Shower units N13/41 Shower heads N13/40 Shower units |
Product range |
Specification data - Shower fittings package
Form | Valve with rectangular wall plate with round dials (dual outlet). |
Materials | |
Body | Brass, metal and plastic. |
Finish and colour | Chrome plated. |
Flow rate (maximum) | 35.68 L/min. |
Water supply temperature (maximum) | 65°C. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
