Mechanically Fixed System With PIR Insulation Board - RENOLIT ALKORPLAN F

Name: Mechanically Fixed System With PIR Insulation Board - RENOLIT ALKORPLAN F
Brand: RENOLIT UK Ltd
SKU: ZNnHgWgMjkxmrDbNoUJGB

Verified by manufacturer 5 months ago

RENOLIT ALKORPLAN F 35176 - 1.5 mm Thick

RENOLIT UK Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type

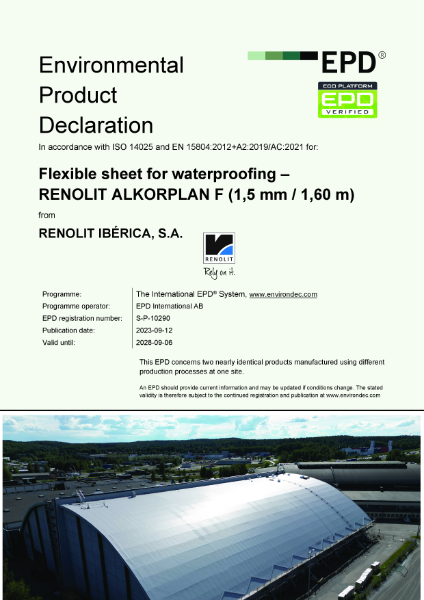

EPD
Certificate type

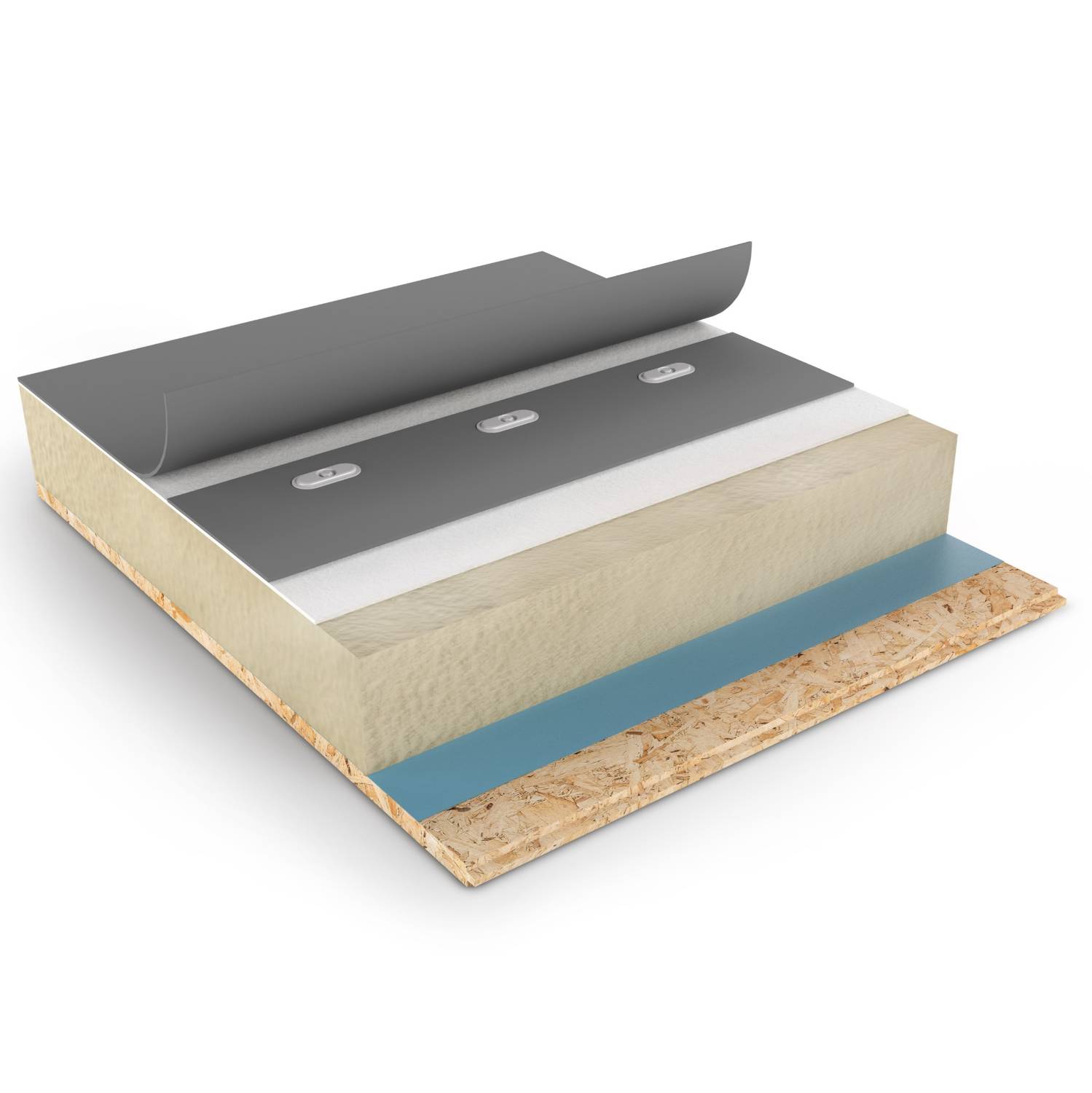

Mechanically Fixed, single layer warm roof covering system.

Jump to:

BOS

+44 (0)1670 718283 Website

Application

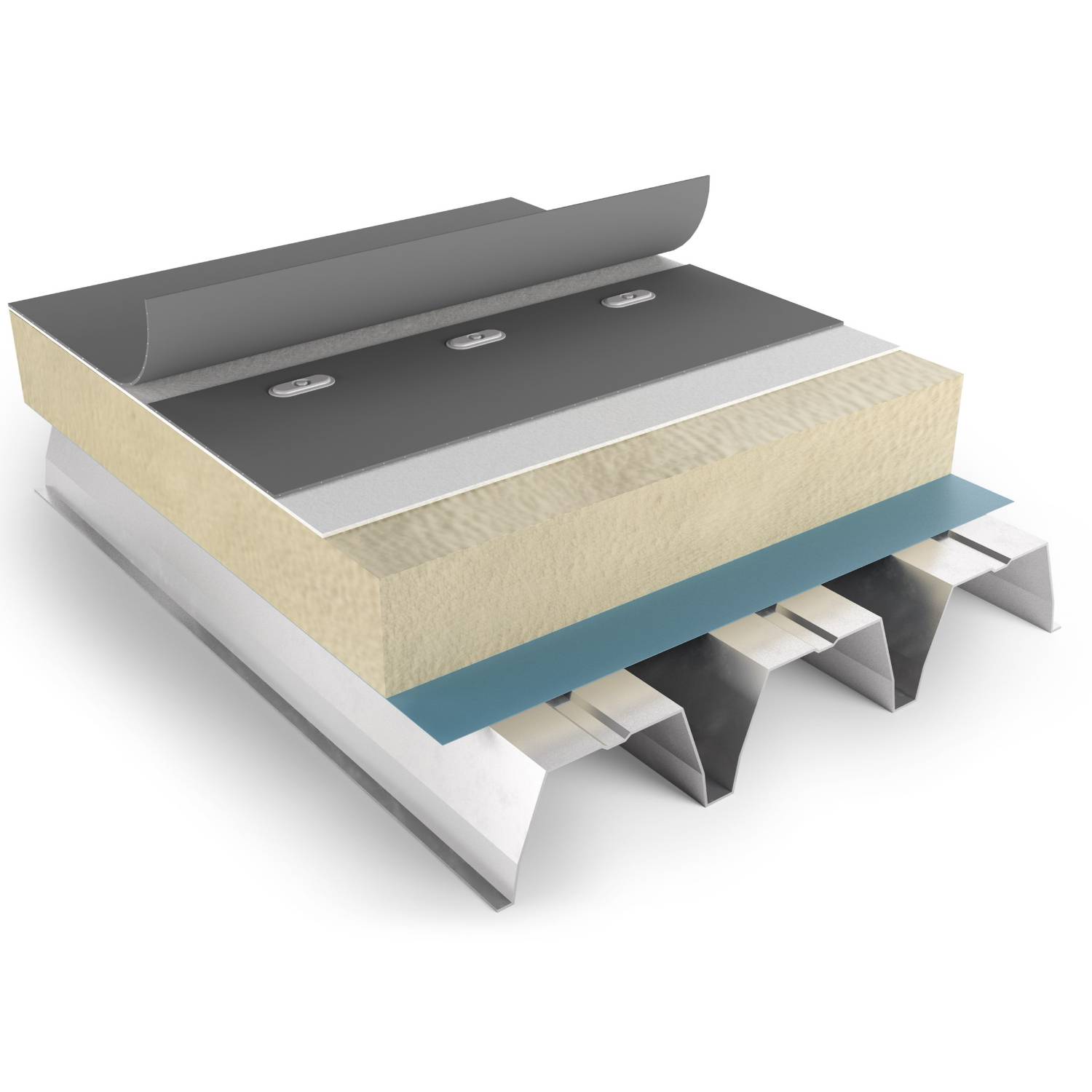

Mechanical fastening is suited for lightweight, metal deck structures, for large industrial buildings, warehouses, logistic centers, etc. It can also be applied on concrete structures or wooden decks.

The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift.

At the overlap, the membrane is hot air welded. The hot air welded joints are at least as strong as the roofing membrane itself. Quick and easy to apply, in all weather conditions, the system provides a durable watertightness of the roof.

Description

A range of membranes designed for mechanical fastening, perfectly suited for lightweight, metal deck structures for large industrial buildings, warehouses, logistic centres, etc. It can, however, also be applied on concrete structures or wooden decks. They are UV and weather resistant with a high moisture vapour permeability, rot proof and root resistance.

The RENOLIT ALKORPLAN F membrane for mechanical fastening has a woven polyester reinforcing, which makes the membrane even more resistant.

Mechanically fastened membranes are also available for aesthetic roof solutions, thanks to a broad colour range, standing seam imitation and ecological solutions (cool roof and cool coloured membranes).

In case of renovation or demolition, the mechanically fixed membrane can be easily removed and recycled.

Features and benefits:

Mechanically fastened.
CE marked.
UV resistant.
Weather resistant.
Multiple colour options.
Recyclable.
ALKORPLAN F membranes have been assessed to have a service life in excess of 30 years.

General information

Color	Grey
Finish	Matt Guidance for specification option: Smooth.
Material	Polyvinyl chloride (PVC) Manufacturer guidance Single ply membrane.
Length	20000 mm
Width	1050 mm 1600 mm
Warranty description	Ten year 15 year 20 year

Uniclass	Pr_25_57_51_66 Polymeric membranesPrimary
CAWS	J42/110 Warm deck roof covering J42/400 Waterproof membrane

Product range	RENOLIT ALKORPLAN Classic Products

Specification data - Polymeric membranes

Material	Laminated reinforced membrane of flexible P-PVC.
Standard	To BS EN 13956.
Third-party certification	British Board of Agrément (BBA) certificate.
Performance characteristics	-
Watertightness	Pass.
Tensile properties	To EN 12311-2, ≥1100 N. Manufacturer guidance Per 50 mm.
Tear resistance	To EN 12310-2, ≥225.
Integral backing fleece	No.
Width (minimum)	1050 mm. Guidance for specification option: 25 m roll. 1600 mm. Guidance for specification option: 15 m roll.
Thickness (minimum)	1.5 mm. Guidance for specification option: Dimensions: 1.05 m x 20 m, or 1.60 m x 15 m rolls.
Colour	Lead grey.
Accessories	None. ALKORPLAN® 35X71 unreinforced detailing membrane. Guidance for specification option: 1.5 mm unreinforced membrane and junction strip for waterproofing outlets, pipes, seams and Alkormetal sections. ALKORPLAN® 81038 seam sealer. ALKORPLAN® 81080/ 81061/ 81062 corners. Guidance for specification option: Inner (81060), outer (81061) and rooflight corners (8106) formed from light grey unreinforced AlkorPlan. ALKORPLAN® 81088 outlets. Guidance for specification option: Unreinforced AlkorPlan® outlets for a reliable connection to existing outlets. Light grey PVC. Available in 70, 85 and 110 mm diameters. ALKORPLAN® 81170/ 81171 Metalsheet. Guidance for specification option: 0.6 mm thick galvanized steel sheet with 0.8 mm thick unreinforced AlkorPlan® membrane laminated to the surface. Designed for the creation of upstands, parapets and drips. ALKORPLAN® 81025 solvent welding fluid.

Standard	Conforms to UEAtc guidelines.
Performance characteristics	To DIN 16730.
Weight	1.85 kg/m².
Elongation	≥16%.
Dimensional stability	≤0.3%.
Water vapour diffusion resistance	To EN 1931, 20,000 μ.
