Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed with PIR Insulation Board - RENOLIT ALKORPLAN Bright F

Verified by manufacturer 3 months ago

RENOLIT UK Ltd Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • EPD

    EPD

    Certificate type

  • BREEAM - Certification

    Certificate type

A high Performing Solar Reflective, Single layer warm roof covering system.

Jump to:
BOS
+44 (0)1670 718283 Website

Application

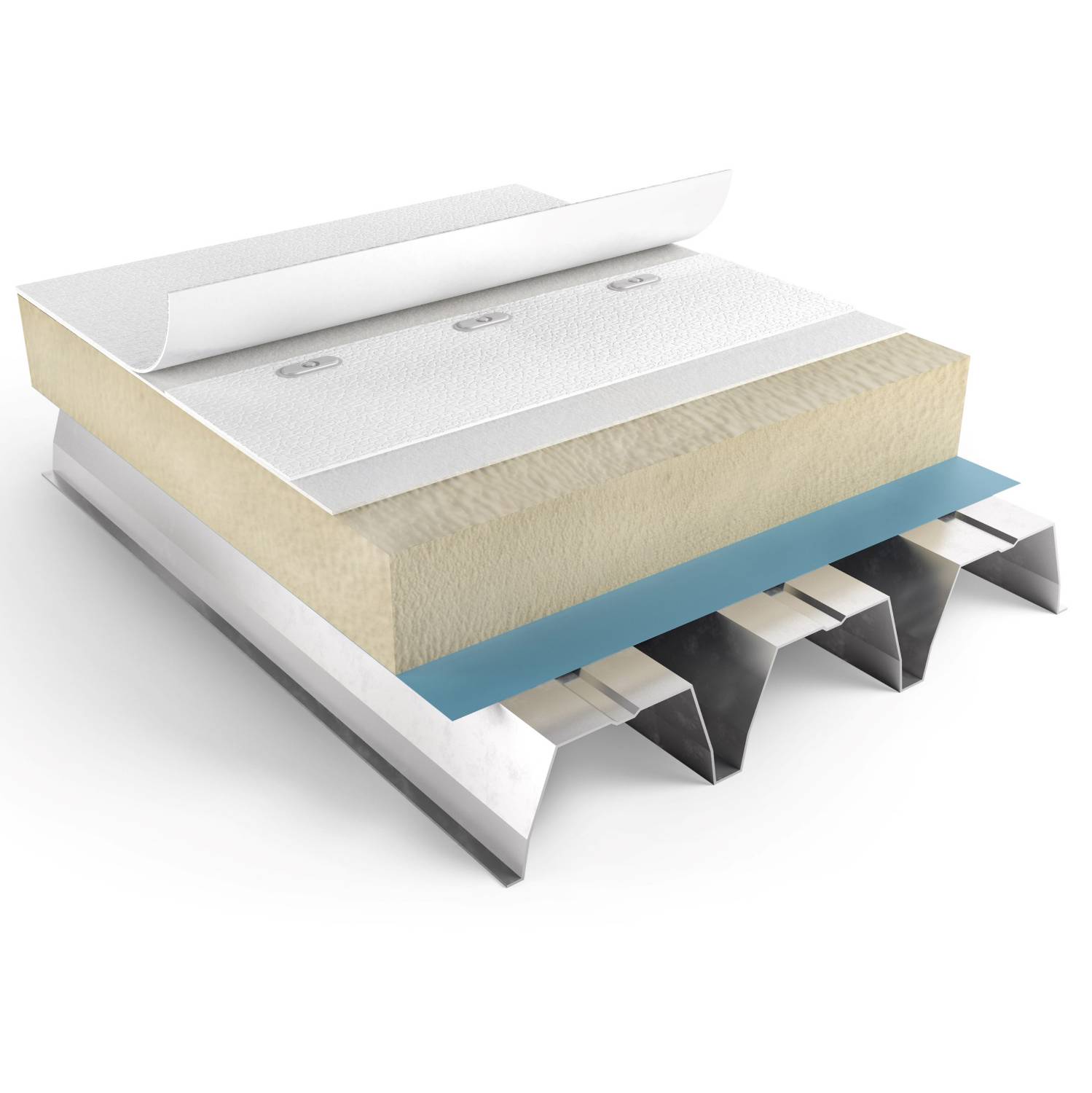

Mechanical fastening is suited for lightweight, metal deck structures, for large industrial buildings, warehouses, logistic centers, etc. It can also be applied on concrete structures or wooden decks.


The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift.


At the overlap, the membrane is hot air welded.

The hot air welded joints are at least as strong as the roofing membrane itself. Quick and easy to apply, in all weather conditions, the system provides a durable watertightness of the roof.

Description

This ‘cool roof’ membrane is an extension to the range of RENOLIT ALKORPLAN F 35276 roofing membranes.

For glued roofing structures, a fleece backed RENOLIT ALKORPLAN Bright membrane is available (RENOLIT ALKORPLAN Bright A 35279).


With the development of the RENOLIT ALKORPLAN Bright roofing membrane, RENOLIT offers a further environmentally responsible, energy-saving solution for the waterproofing of flat roofs.

The RENOLIT ALKORPLAN Bright roofing membrane enables the roof area to be installed perfectly homogeneously, and also generates maximum solar reflectance.

The homogeneous, white welding seams are barely discernible on the roof area, and ensure durable waterproofing.


RENOLIT ALKORPLAN Bright roofing systems are used worldwide in new construction and renovation projects.


Features and benefits:

  • Pollution-resistant transparent protection layer.
  • Clear coating.
  • Dirt largely washed away by the rain.
  • Protection against UV radiation.
  • Solar reflection of 90%.
  • Reduces the build up of heat within a building.
  • Recyclable material.
  • Solar Reflectance Index listed by the Cool Roof Rating Council of 115.

General information

Color

White

Finish

Embossed

Guidance for specification option:

Lacquered.

Material

Polyester

Guidance for specification option:

Reinforcement.

Polyvinyl chloride (PVC)

Guidance for specification option:

Membrane.

Manufacturer guidance

Single ply membrane.

Shape

Rectangle

Length

20000 mm

Width

1050 mm

Height

1.5 mm

Warranty description

20 year

Ten year

15 year

25 year

Uniclass

Pr_25_57_51_66 Polymeric membranesPrimary

CAWS

J42/400 Waterproof membrane

J42/110 Warm deck roof covering

Product range

RENOLIT ALKORPLAN Bright 'Cool Roof' Products

Specification data - Polymeric membranes

Material

Flexible P-PVC with woven polyester reinforcement.

Integral backing fleece

Required.

Standard

Conforms to UEAtc guidelines.

Performance characteristics

-

External fire performance

Broof (t4) to EN 13501-5.

Third-party certification

BBA Certified and CRRC.

Width (minimum)

1050 mm.

Thickness (minimum)

1.5 mm.

Colour

White.

Accessories

Not required.

ALKORPLAN® 35X71 unreinforced detailing membrane.

ALKORPLAN® 81038 seam sealer.

ALKORPLAN® 81080/ 81061/ 81062 corners.

ALKORPLAN® 81088 outlets.

ALKORPLAN® 81170/ 81171 Metalsheet.

ALKORPLUS® 81068 one component polyurethane glue.

Shape/ Size

-

Manufacturer guidance

Insert requirement for project, consult manufacturer.

Insulation

PIR.

Length

20000 mm.

Installation

Mechanically fixed.

Type

Laminated.

Sustainability data

Country of material origin

Spain

Country of product manufacture

Spain

Material

Polyester

Guidance for specification option:

Reinforcement.

Polyvinyl chloride (PVC)

Guidance for specification option:

Membrane.

Manufacturer guidance

Single ply membrane.

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

10/4808

EPD

EPD

EPD - RENOLIT ALKORPLAN F Bright / Cool

BREEAM - Certification

BREEAM - Certification

BREEAM - Sustainable Building Certification

Literature

RENOLIT ALKORPLAN Bright

RENOLIT ALKORPLAN Bright

RENOLIT ALKORPLAN F Mechanically Fastened single ply membrane

RENOLIT ALKORPLAN F Mechanically Fastened single ply membrane

RENOLIT ALKORPLAN Waterproofing for all Residential Applications

RENOLIT ALKORPLAN Waterproofing for all Residential Applications

DoP - ALKORPLAN F 35276 BRIGHT

DoP - ALKORPLAN F 35276 BRIGHT
