Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed Mineral Wool Insulation - RENOLIT ALKORPLAN Bright F

Name: Highly Reflective and Energy-Efficient Cool Roof System, Mechanically Fixed Mineral Wool Insulation - RENOLIT ALKORPLAN Bright F
Brand: RENOLIT UK Ltd
SKU: 6cN5YDgpq5AcKWz2pL6bD

Verified by manufacturer 5 months ago

RENOLIT UK Ltd

Third party certifications:

BBA Agrément Certificate
Certificate type
EPD
Certificate type

A high Performing Solar Reflective, Single layer warm roof covering system.

Jump to:

BOS

+44 (0)1670 718283 Website

Application

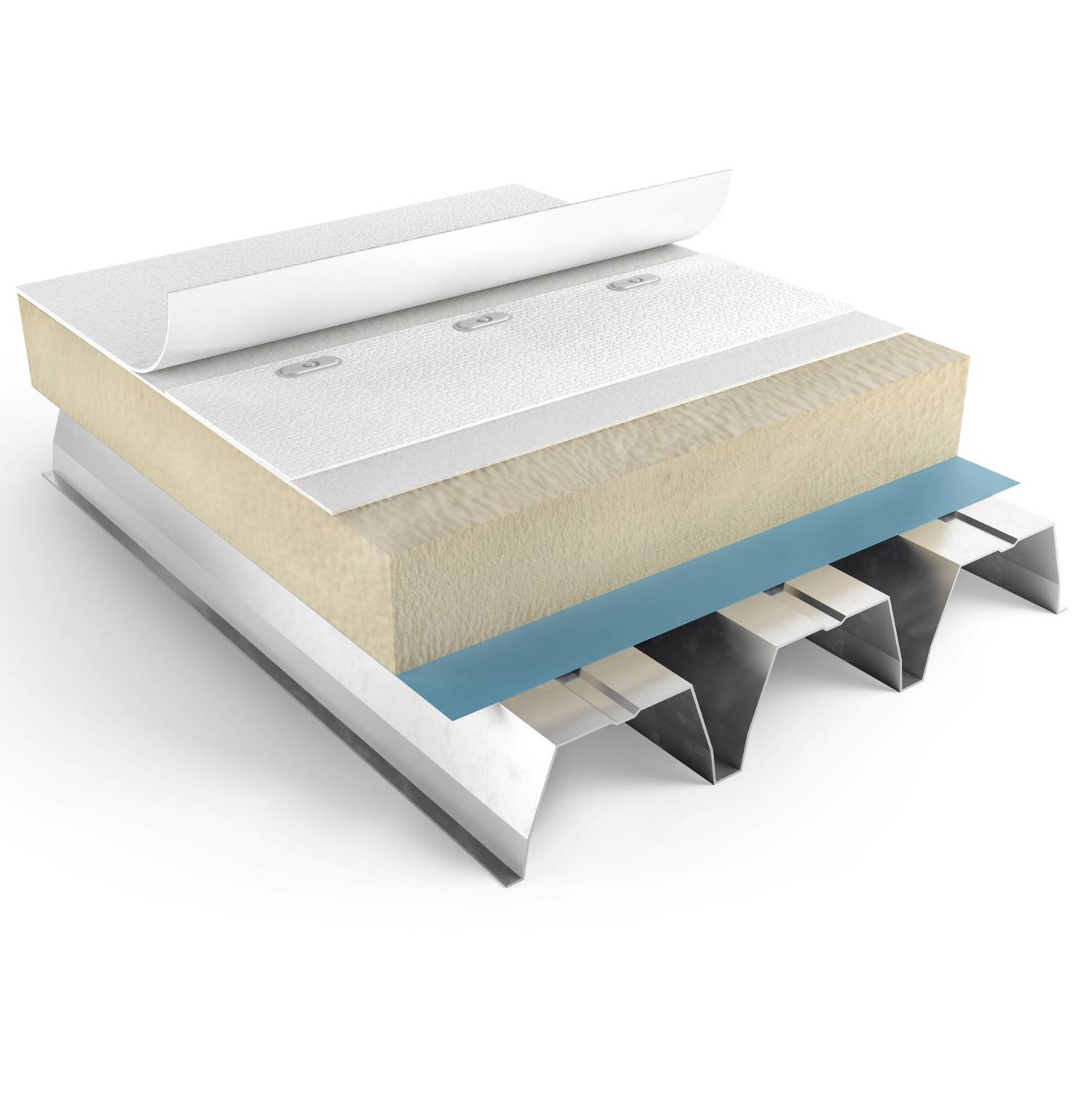

Mechanical fastening is suited for lightweight, metal deck structures, for large industrial buildings, warehouses, logistic centers, etc. It can also be applied on concrete structures or wooden decks.

The roofing membrane is fastened to the substrate along the longitudinal edges by means of pressure plates and screws. Wind load calculations can accurately determine the exact number of fasteners to be used in order to avoid any risk of wind uplift.

At the overlap, the membrane is hot air welded.

The hot air welded joints are at least as strong as the roofing membrane itself. Quick and easy to apply, in all weather conditions, the system provides a durable watertightness of the roof.

Description

This ‘cool roof’ membrane is an extension to the range of RENOLIT ALKORPLAN F 35276 roofing membranes.

For glued roofing structures, a fleece-backed RENOLIT ALKORPLAN Bright membrane is available (RENOLIT ALKORPLAN Bright A 35279).

With the development of the RENOLIT ALKORPLAN Bright roofing membrane, RENOLIT offers a further environmentally responsible, energy-saving solution for the waterproofing of flat roofs.

The RENOLIT ALKORPLAN Bright roofing membrane enables the roof area to be installed perfectly homogeneously, and also generates maximum solar reflectance.

The homogeneous, white welding seams are barely discernible on the roof area, and ensure durable waterproofing.

RENOLIT ALKORPLAN Bright roofing systems are used worldwide in new construction and renovation projects.

Features and benefits:

Pollution-resistant transparent protection layer.
Clear coating.
Dirt largely washed away by the rain.
Protection against UV radiation.
Solar reflection of 90%.
Reduces the build up of heat within a building.
Recyclable material.
Variety of warranty options available for RENOLIT products (consult manufacturer for details).

General information

Color	White
Finish	Embossed Guidance for specification option: Lacquered.
Material	Polyvinyl chloride (PVC) Polyester Manufacturer guidance Single ply membrane.
Shape	Rectangle
Length	20000 mm
Width	1050 mm
Height	1.5 mm
Warranty description	20 year Ten year 15 year 25 year

Uniclass	Pr_25_57_51_66 Polymeric membranesPrimary
CAWS	J42/110 Warm deck roof covering J42/400 Waterproof membrane

Product range	RENOLIT ALKORPLAN Bright 'Cool Roof' Products

Specification data - Polymeric membranes

Material	Flexible P-PVC with woven polyester reinforcement.
Integral backing fleece	Required.
Standard	Conforms to UEAtc guidelines.
Performance characteristics	-
External fire performance	Broof (t4) to EN 13501-5.
Third-party certification	BBA certified and CRRC.
Width (minimum)	1050 mm.
Thickness (minimum)	1.5 mm.
Colour	White.
Accessories	None. ALKORPLAN® 35X71 unreinforced detailing membrane. ALKORPLAN® 81038 seam sealer. ALKORPLAN® 81080/ 81061/ 81062 corners. ALKORPLAN® 81088 outlets. ALKORPLAN® 81170/ 81171 Metalsheet. ALKORPLUS® 81068 one component polyurethane glue.

Shape/ Size	Guidance for specification option: Insert requirement for project, consult manufacturer.
Insulation	Mineral Wool.
Length	20000 mm.
Installation	Mechanically fixed.
Type	Laminated.

Sustainability data

Country of material origin	Spain
Country of product manufacture	Spain
Material	Polyvinyl chloride (PVC) Polyester Manufacturer guidance Single ply membrane.
