Kinetics SH Spring Isolation Hangers - 102 mm Deflection

Name: Kinetics SH Spring Isolation Hangers - 102 mm Deflection
Brand: CMS Danskin Acoustics
SKU: ozcHKMK4tqCvTvXShaBJw9

Verified by manufacturer 1 month ago

SH-4-100

CMS Danskin Acoustics

An isolation hanger with 102 mm deflection, designed to reduce vibration and noise generated by suspended equipment and piping.

Jump to:

Request BIM

+44 (0)1925 577711 Website

Application

Suitable for applications isolating suspending sources if inaudible frequency vibration located near critical vibration free areas.

Description

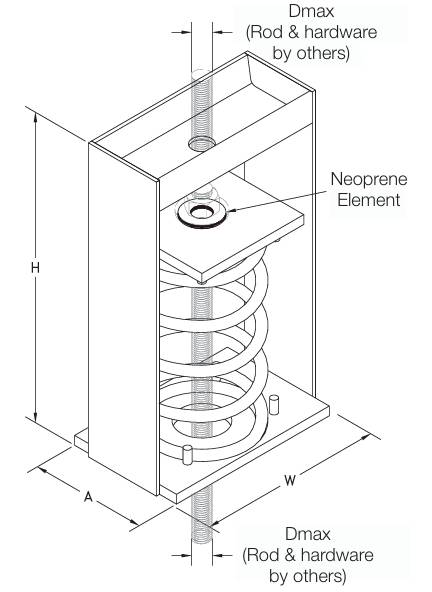

Kinetics SH Spring Isolation Hangers are designed to reduce the transmission of vibration and noise generated by suspended equipment and piping. SH Hangers feature a high deflection colour-coded spring element, a load transfer plate, and a noise isolation pad, all assembled into a stamped or welded hanger bracket.

Features and benefits:

Allow support rod misalignment through a 30° arc without short-circuiting.
Can withstand up to 500% overload without failure.
Available in various deflections with different load bearing capacities.
Made from steel spring and bracket.

General information

Color	Beige Black Blue Brown Green Grey Orange Red White Other Show more
Finish	Powder-coated
Material	Steel
Shape	Rectangle
Length	152 mm 203 mm
Width	238 mm 343 mm
Height	406 mm 470 mm

Uniclass	Pr_80_77_94_42 Isolation hangersPrimary Pr_80_77_94_84 Spring isolators
CAWS	K40/105 Suspended ceiling system K10/220 Proprietary suspended ceiling system

SKU Code	SH-4-100

Product range	Kinetics SH Spring Hanger

Specification data - Isolation hangers

Classification data
Isolation hangers type	Spring.
Colour code	Grey.
Load	45 kg.
Deflection	102 mm.
Drop rod misalignment capability	30° arc.
Dimensions	152 x 238 x 406 mm. Manufacturer guidance Length x width x height.
