Kinetics Isolation Hanger Model RH

Name: Kinetics Isolation Hanger Model RH
Brand: CMS Danskin Acoustics
SKU: 5fyrFb3eWMHw6xZrUN9gB1

Verified by manufacturer 4 days ago

RH-75A

An isolation hanger designed to reduce the transmission of vibration and noise generated by suspended equipment, piping, and ductwork.

Jump to:

Request BIM

+44 (0)1925 577711 Website

Application

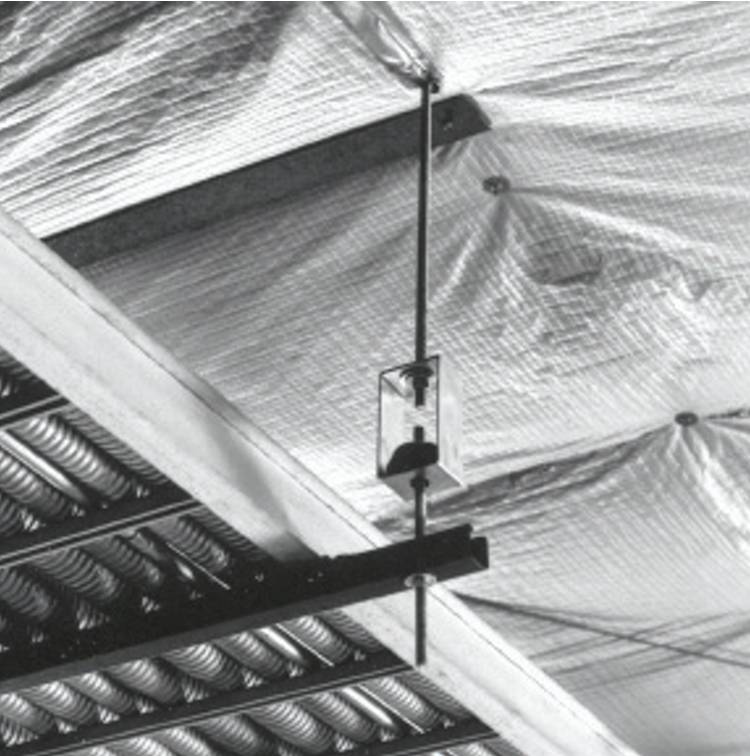

Suitable for applications that isolate suspended sources of audible-frequency vibration, or for the isolation of noise in piping and ductwork systems.

Description

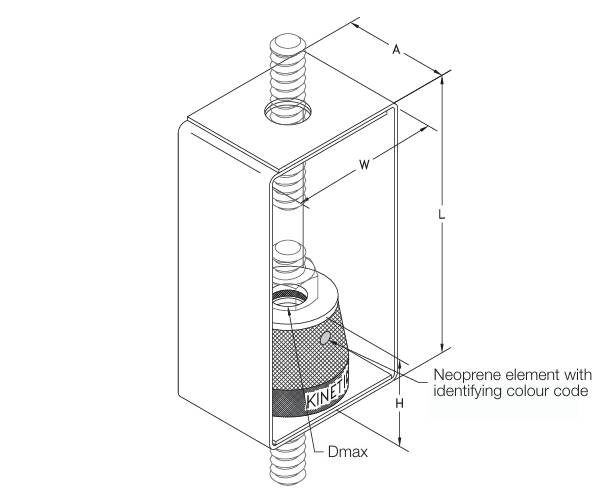

Kinetics Model RH Vibration Isolation Hangers utilize elastomer material loaded in shear rather than compression, allowing greater strain without accelerating deterioration, and are designed to reduce the transmission of vibration and noise generated by suspended equipment, piping, and ductwork.

Features and benefits:

Allow support rod misalignment through a 30° arc without short-circuiting.
Can withstand up to 500% overload without failure.
Available in various deflections with different load bearing capacities.

General information

Color	Black Green Pink Purple Red White Yellow Show more
Material	Steel Rubber
Shape	Rectangle
Length	38 mm 57 mm 92 mm
Width	55 mm 80 mm 142 mm
Height	69 mm 150 mm 218 mm

Uniclass	Pr_80_77_94_42 Isolation hangersPrimary Pr_80_77_94_84 Spring isolators
CAWS	K40/105 Suspended ceiling system K10/220 Proprietary suspended ceiling system

SKU Code	RH-75A

Specification data - Isolation hangers

Classification data
Isolation hangers type	Spring and neoprene rubber.
Colour code	Black.
Load	34 kg.
Deflection	2 mm.
Drop rod misalignment capability	30° arc.
Dimensions	38 x 55 x 69 mm. Manufacturer guidance Length x width x height.
