Kinetics SRH Spring Isolation Hangers - 25–51 mm Deflection
Verified by manufacturer 4 days ago
SRH-1-12
SRH-1-12
An isolation hanger with 25–51 mm deflection, designed to isolate noise and low-frequency vibrations.
Application

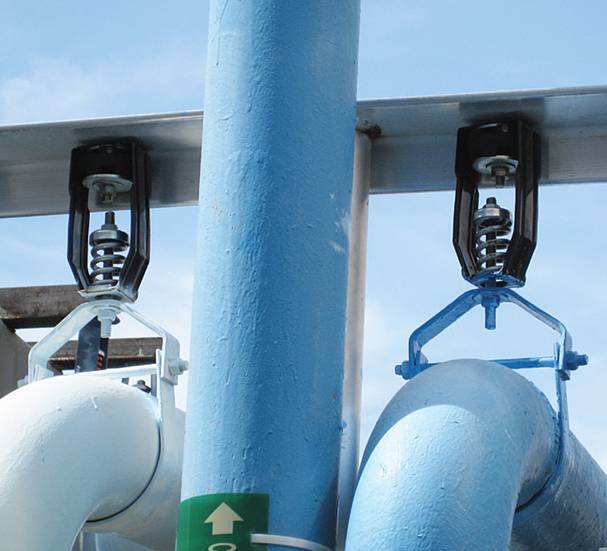

Suitable for applications that isolate suspended sources of both noise and vibration, including:
- Suspended mechanical equipment.
- Piping and ductwork.
Description
Kinetics SRH Spring Isolation Hangers consist of free-standing, large-diameter, laterally stable steel springs in series with an elastomer-in-shear insert, assembled into a welded hanger bracket. Model SRH hangers are available in a wide range of load capacities and static deflection options and can be provided with labor-saving accessories for adaption to wire or strap suspension systems. The spring may also be preloaded to facilitate the installation of piping at a fixed elevation.
Features and benefits:
- Allow support rod misalignment through a 30° arc without short-circuiting.
- Can withstand up to 500% overload without failure.
- Available in various deflections with different load bearing capacities.
- Made from steel spring and bracket.
General information
Color | Beige Black Blue Brown Green |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | 92 mm 57 mm 121 mm 152 mm |
Width | 94 mm 127 mm 142 mm 152 mm |
Height | 187 mm 218 mm 241 mm 305 mm |
Uniclass | |
CAWS | K10/220 Proprietary suspended ceiling system K40/105 Suspended ceiling system |
SKU Code | SRH-1-12 |
Specification data - Isolation hangers
Classification data | |
Isolation hangers type | Spring. |
Colour code | Silver. |
Load | 5 kg. |
Deflection | 26 mm. |
Drop rod misalignment capability | 30° arc. |

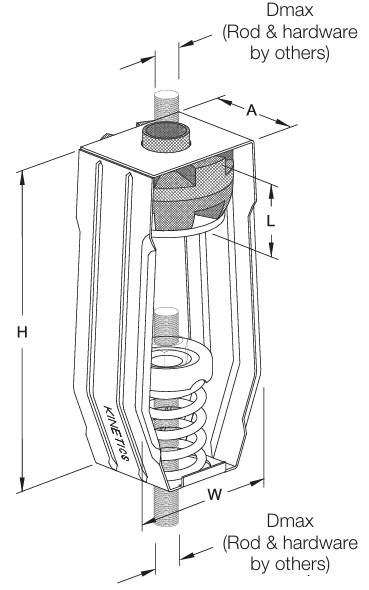

Dimensions | 57 x 94 x 187 mm. Manufacturer guidanceLength x width x height. |
Sustainability data
Material | Steel |
