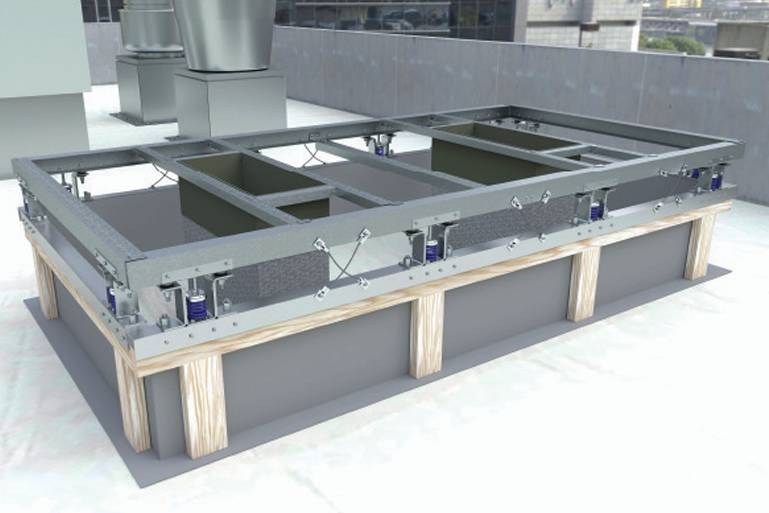

Kinetics KSR 3.0 Isolation Rail
Verified by manufacturer 4 days ago
A noise and vibration isolation rail designed for roof curb-mounted equipment.
Application
Suitable for roof-supported small to medium-sized mechanical equipment requiring wind and seismic restraint, including:
- Unitary packaged air handling and refrigeration equipment.
- Exhaust fans.
Description
The Kinetics KSR 3.0 is vibration isolation rail for roof curb-mounted small to medium-sized mechanical equipment to restrain wind and seismic load.
Features and benefits:
- Adjustable springs for precise leveling on any unit.
- Top channel options to accommodate various base rail depths.
- Factory-assembled components and pre-assembled isolators.
- Pre-installed restraint cables for high wind and seismic applications.
- Compatible with roof-supported equipment and standard sheet metal roof curbs.
- Minimizes transmission of noise and vibration from rooftop equipment to roof structures.
- Flexible duct connector supports.
- Pre-installed integrated isolation springs (KCI).
- Weather-sealed for durability.
General information
Color | Grey Silver Other |
Finish | Powder-coated |
Material | Steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass |
Specification data - Spring isolators
Classification data | |
Spring isolators type | Vertical restrained. |
Colour code | Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Load | Manufacturer guidanceDesigned to accommodate a typical 50% overload to solid height. |
Deflection | 25 mm. 50 mm. Manufacturer guidanceConsult manufacturer for details and insert requirements. |
Support | Upper and lower support rails with flexible connectors. |
Options | Not required. Noise control package. Multiple roof pitch interface. KSR Attachment Bolt (KRT). |
Sustainability data
Material | Steel |
