Fire Rated Plasterboard Access Panel
Verified by manufacturer 5 months ago
Warringtonfire
Certificate type

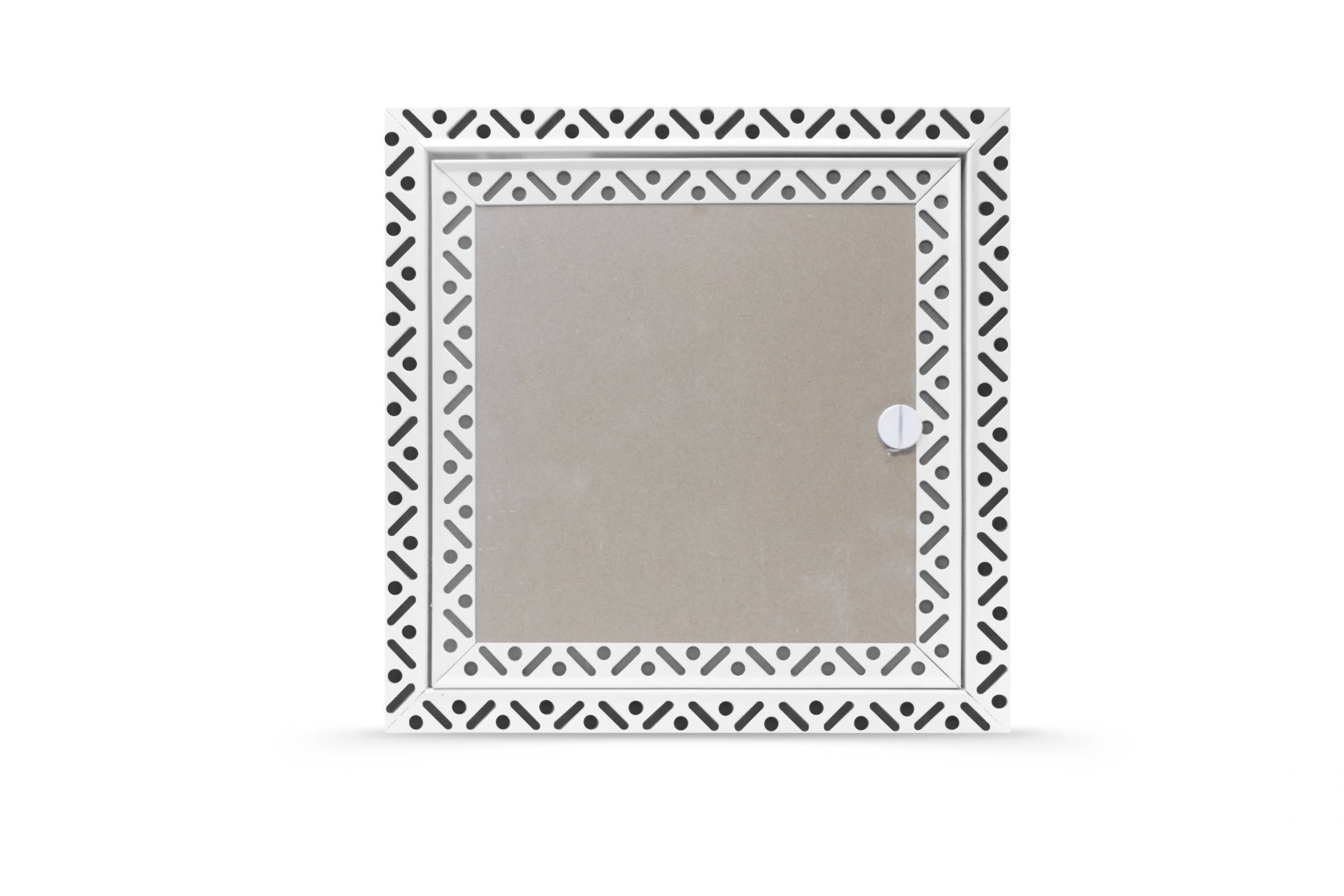

Access panel range, fire tested to 60 minutes for both wall and ceiling use, 21 dB acoustic reduction. Beaded frame with plasterboard door for flush finish when taped and jointed.
Application
- Suitable for commercial applications.
- Wall or ceiling use.
Description

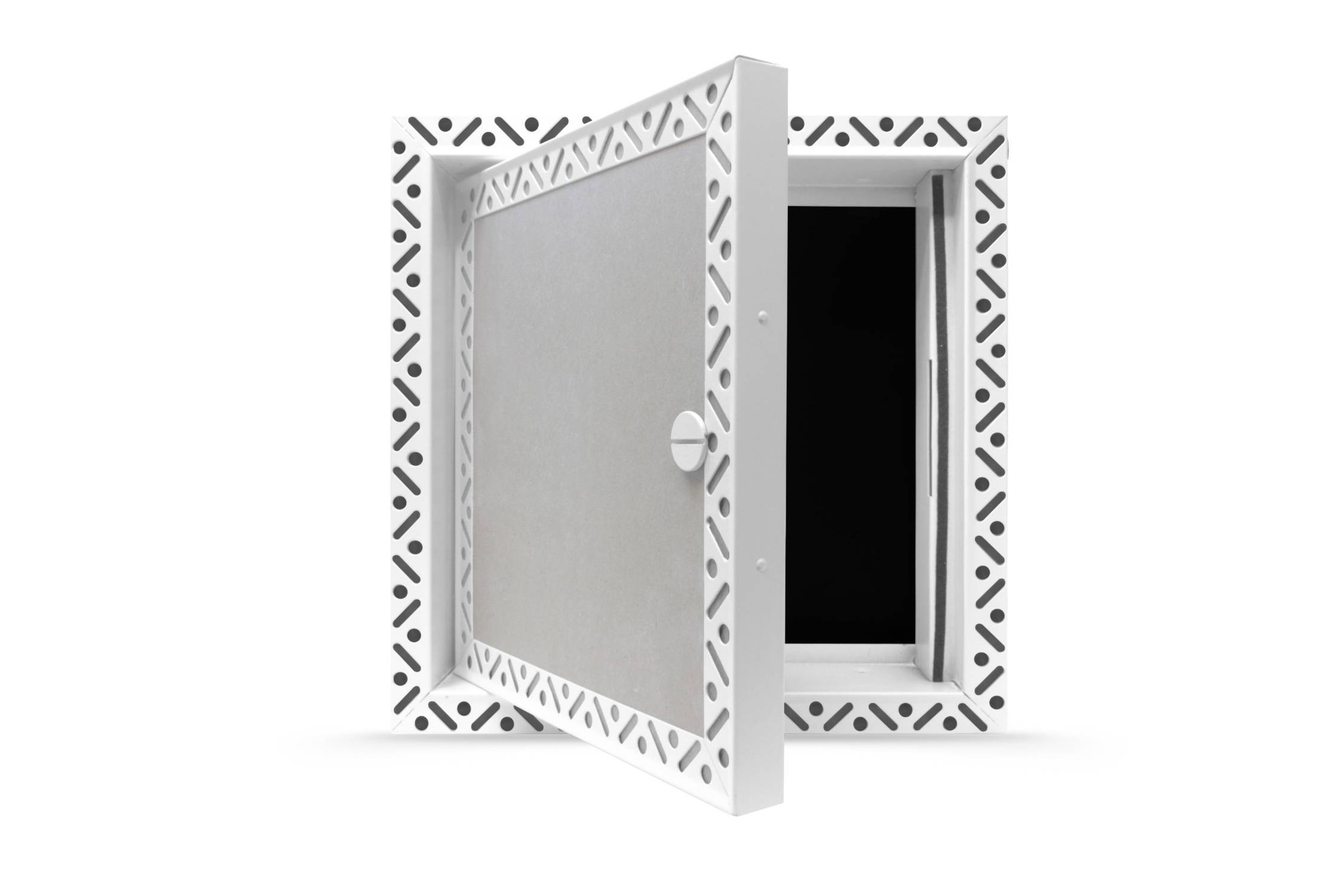

Plaster Door Access Panels are commonly used in commercial settings where a discreet fire-rated access panel is needed. It serves both as a wall or ceiling panel. The door is easy to remove the door by loosening the sliding pin hinges to ensure a precise surface finish.
Fitting Information: The inner edge of the access panel frame has pre-drilled fixing holes for easy installation. Detailed fitting instructions are included. Install the panel before applying any wet finishes. To ensure a strong bond, it's important to apply scrim tape to all perforated edges before plastering. Without scrim tape, the plaster may not adhere properly, leading to cracks.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel Plasterboard |
Shape | Square Rectangle |
Width | 200 mm 300 mm 350 mm 450 mm 500 mm |
Height | 200 mm 300 mm 350 mm 450 mm 500 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 60 minutes to to BS EN 1364-2 and 1634-1. |
Position | Ceiling-mounted.Wall-mounted. |
Size | 200 x 200 mm.Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening once installed: 140 x 173 mm. 300 x 300 mm.Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening once installed: 240 x 275 mm. 350 x 350mm.Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening once installed: 290 x 322 mm. 450 x 450 mm.Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening once installed: 385 x 424 mm. 500 x 500 mm.550 x 550 mm.Guidance for specification option: Structural opening: 555 x 555 mm; Clear opening once installed: 490 x 520 mm. 600 x 300 mm.Guidance for specification option: Structural opening: 605 x 305 mm. Hinged on the long side. 600 x 600 mm.Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening once installed: 540 x 572 mm. 900 x 600 mm.Guidance for specification option: Structural opening: 905 x 605 mm; Clear opening once installed: 842 x 540 mm. Hinged on the long side. 1200 x 600 mm.Guidance for specification option: Structural opening: 1205 x 605 mm; Clear opening once installed: 1140 x 540 mm. Hinged on the long side. Custom.Guidance for specification option: Minimum 200 x 200 mm to maximum 1200 x 600 mm. Insert requirements. |
Frame | Bead for taping and jointing.Guidance for specification option: 25 mm. |
Panel | |
Material | Plasterboard infill. |
Latch or lock type | Budget lock. |
Operation | Outward opening. |
Sound insulation | 21 dB. |
Sustainability data
Contains Red List materials | No |
Recyclability | 60% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 42 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Warringtonfire
Fire resistance test - Ceiling Plasterboard door access panel 1200 x 600mm
Literature

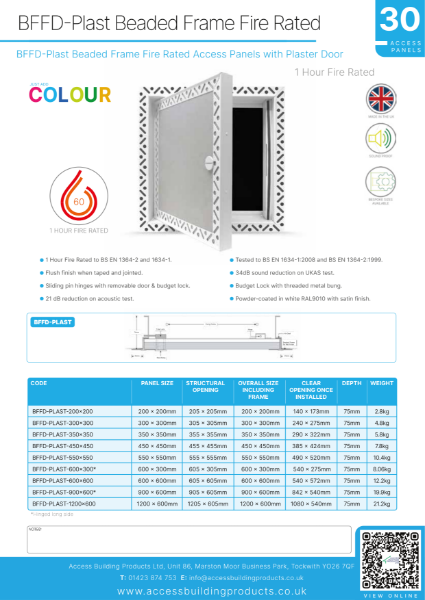

BFFD-Plast Beaded Frame Fire Rated

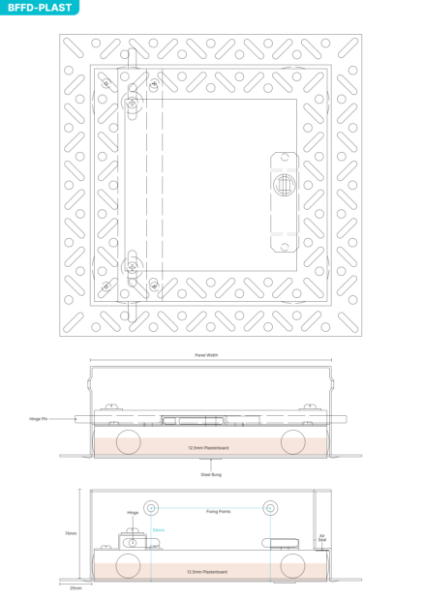

BFFD-PLAST
