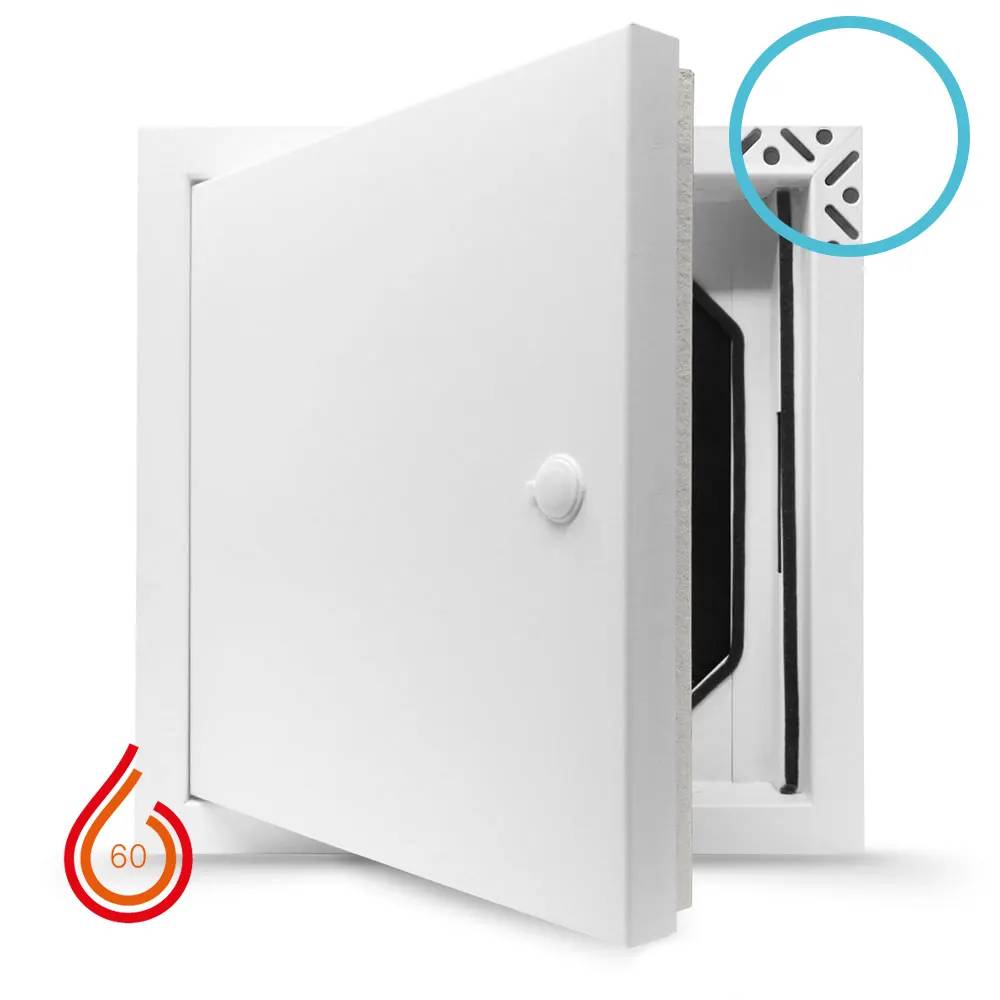

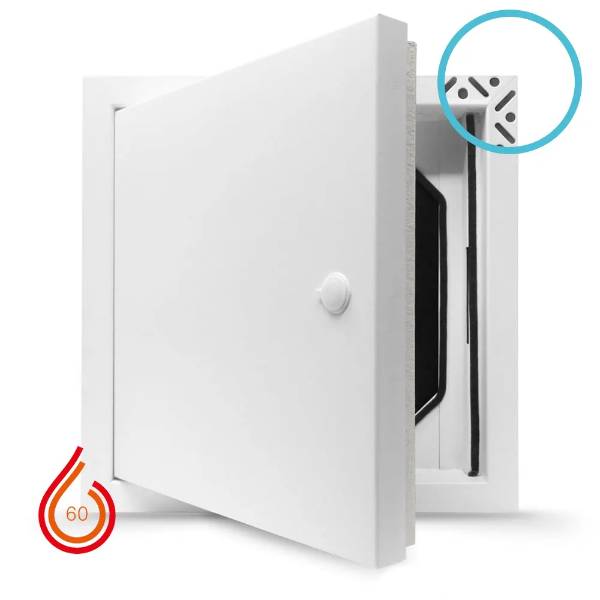

Fire Rated Access Panel [Metal door]
Verified by manufacturer 5 months ago

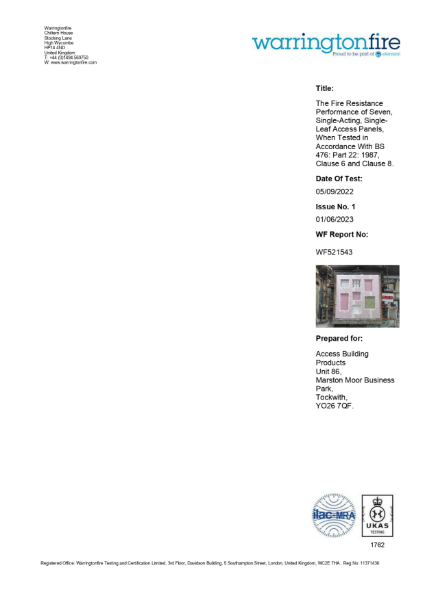

Warringtonfire
Certificate type
Access panel range, fire tested to 60 minutes for both wall and ceiling use, smoke tested, 34 dB acoustic reduction.
Application
- Commercial buildings, residential properties, or industrial facilities.
- Walls or ceilings.
Description
A range of Fire-Rated Access Panels, designed to meet the requirements of Part B Building Regulations. These access panels are designed to provide secure and convenient access via walls and ceilings while ensuring fire safety compliance.
Fire-Rated Access Panels offer a reliable solution for any environment where fire protection is essential. Whether it's in commercial buildings, residential properties, or industrial facilities, these access panels provide a safe and efficient means of accessing hidden utility connections, electrical systems, or plumbing components, all while maintaining the integrity of fire-rated barriers.
Constructed using robust materials, these fire-rated access panels offer durability and strength. The panels are designed to withstand high temperatures and prevent the spread of fire for a specified duration, ensuring the safety of occupants and minimizing property damage.
Each panel is supplied with pre-drilled screw fixing holes and user-friendly locks that facilitate quick and convenient access, saving time and effort during maintenance, inspections, or repairs.
Sizes: When selecting your access panel, please add 5mm to our size when creating your structural opening. E.g. An access panel size of 1200x600 would fit a structural opening of 1205 x 605mm
Features and benefits:
- Easy to install and operate.
- Meet the requirements of Part B Building Regulations.
General information
Color | White |
Finish | Powder-coated |
Material | Zintec steel |
Shape | Square |
Width | 150 mm 200 mm 300 mm 350 mm 400 mm |
Height | 150 mm 200 mm 230 mm 300 mm 350 mm |
Warranty description | Two year |
Uniclass | |
CAWS | L20/630 Hatches K10/430 Access panels |
Specification data - Access panels
Fire performance | |
Fire resistance | 60 minutes to to BS EN 1634-1:2008 and BS EN 1364-2:1999. |
Position | Ceiling-mounted.Wall-mounted. |
Size | 150 x 150 mm.Guidance for specification option: Structural opening: 155 x 155 mm; Clear opening once installed: 75 x 80 mm. 200 x 200 mm.Guidance for specification option: Structural opening: 205 x 205 mm; Clear opening once installed: 120 x 140 mm. 230 x 150 mm.Guidance for specification option: Structural opening: 235 x 155 mm; Clear opening once installed: 70 x 190 mm. 300 x 300 mm.Guidance for specification option: Structural opening: 305 x 305 mm; Clear opening once installed: 233 x 257 mm. 350 x 350 mm.Guidance for specification option: Structural opening: 355 x 355 mm; Clear opening once installed: 270 x 314 mm. 450 x 450 mm.Guidance for specification option: Structural opening: 455 x 455 mm; Clear opening once installed: 370 x 412 mm. 500 x 500 mm.Guidance for specification option: Structural opening: 505 x 505 mm; Clear opening once installed: 418 x 460 mm. 550 x 550 mm.Guidance for specification option: Structural opening: 555 x 555 mm; Clear opening once installed: 470 x 514 mm. 600 x 300 mm.Guidance for specification option: Structural opening: 605 x 305 mm. Clear opening once installed: 565 x 235 mm. Hinged on the long side. 600 x 600 mm.Guidance for specification option: Structural opening: 605 x 605 mm; Clear opening once installed: 520 x 564 mm. 900 x 600 mm.Guidance for specification option: Structural opening: 905 x 605 mm; Clear opening once installed: 865 x 520 mm. Hinged on the long side. 1200 x 600 mm.Guidance for specification option: Structural opening: 1205 x 605 mm; Clear opening once installed: 1175 x 565 mm. Hinged on the long side. Custom.Guidance for specification option: Up to 1200 x 600 mm. Insert requirements. |

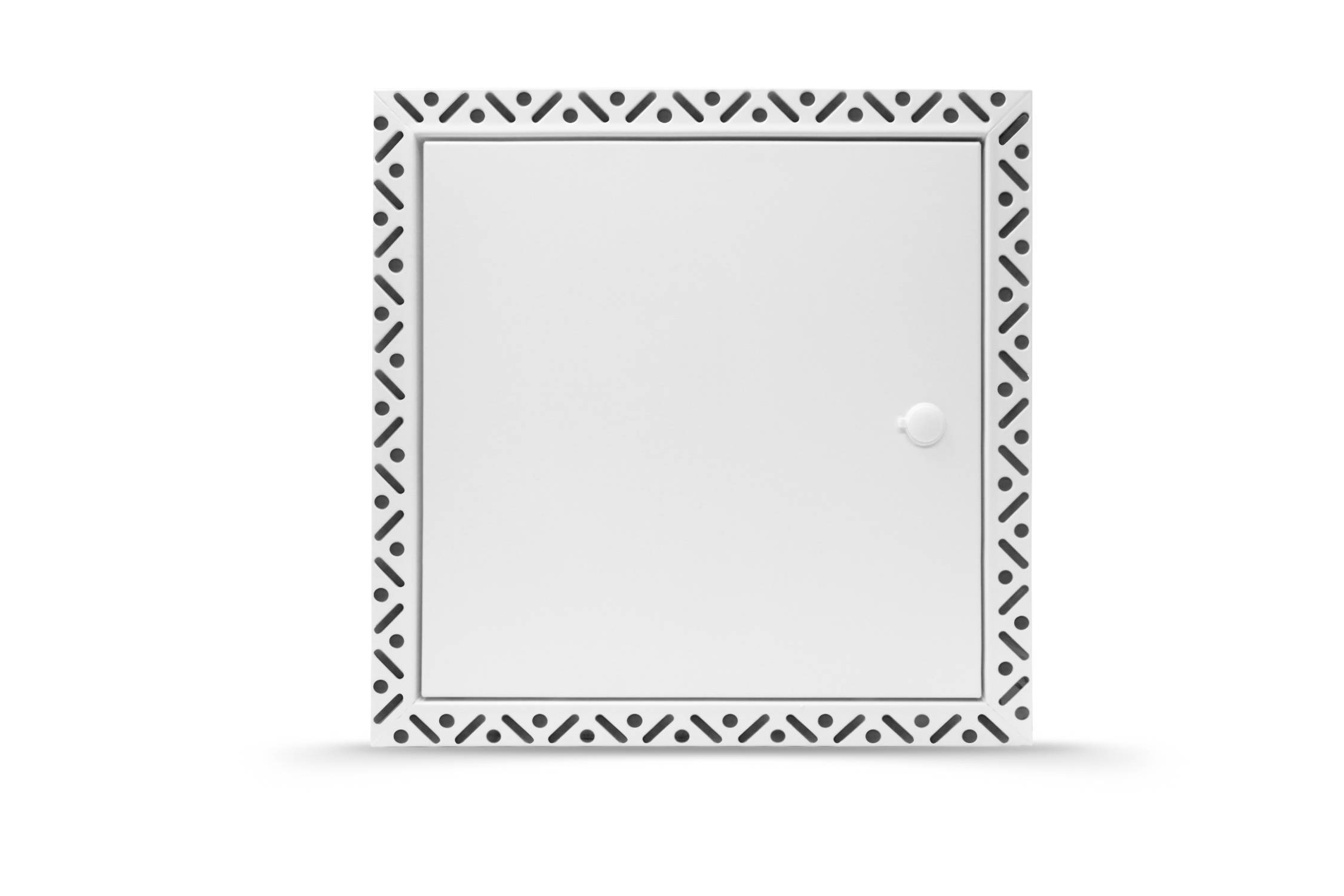

Frame | Bead for taping and jointing.Exposed picture frame type. |
Panel | |
Material | Zintec steel. |
Integral finish | Powder-coated, white (RAL 9010). |
Latch or lock type | Budget lock.Tamper proof lock. |
Operation | Outward opening. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 40 % |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
Third party certifications
Literature

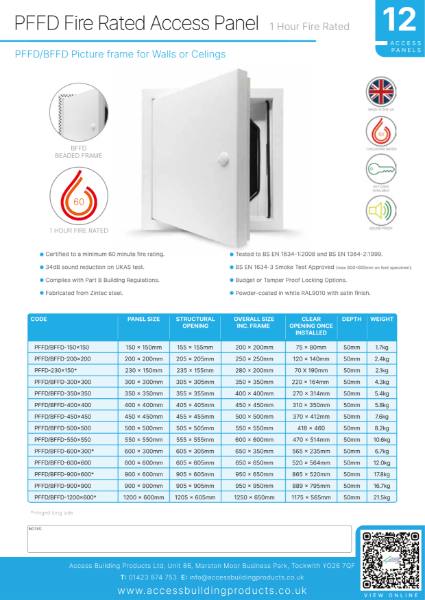

PFFD Fire Rated Access Panel

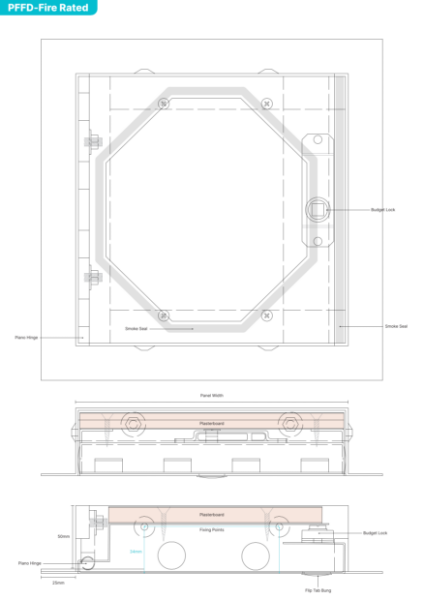

PFFD Fire Rated Access Panel Tech
