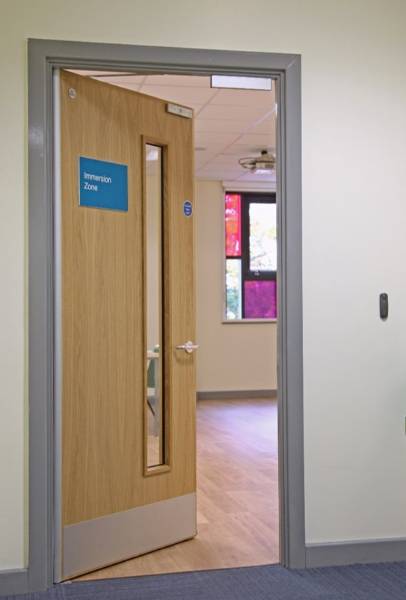

FD60 Fire Rated Doorsets
Verified by manufacturer 5 months ago
HSS
HSS
British Woodworking Federation
Certificate type
BM Trada
Certificate type
A range of FD60 fire-rated doorsets.
Application
Suitable for healthcare, education, commercial, leisure and high-end residential applications.
Description
A range of FD60 fire-rated doorsets.
Features and benefits:
- All doorsets can be tailored to suit each bespoke project.
- Materials are supplied from a single source.
- No site adjustments are necessary as tolerances and clearance gaps are pre-set and "proved" in the factory.
- Doors can be supplied with hinges fixed to doors, allowing for easy door removal for safe storage.
- The risk of damage is reduced as doorsets can be fitted later in the contract.
- Costly site labour is reduced - health and safety controls over using woodworking tools on site are removed.
General information
Color | Other |
Finish | Veneered Painted Stained Primed Laminated |
Material | Wood |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Other |
Uniclass | |
CAWS | L20/55 Doorsets L20/410 Wood doorsets |
Specification data - Wood doorsets
Standard | Internal fire-rated doorset third-party-certified. |
Wood in joinery standard | To BS EN 942. |
Configuration | Double-leaf, single-action.Double-leaf, double-action.Leaf and part-leaf, single-action.Leaf and part-leaf, double-action.Single-leaf, single-action.Single-leaf, double-action. |
Performance | |
Fire resistance | |
Integrity | To BS EN 13501-2, E 60 minutes. |
Insulation | To BS EN 13501-2, I 60 minutes. |
Smoke leakage | Leakage no greater than 3m3/m/hr as per BS 476. |
Acoustic performance | Manufacturer guidanceUp to 36 dB (Rw) maximum. Insert requirement or omit. |
Strength and durability | To BS EN 1192, Class 4.Guidance for specification option: Severe duty. |
Intruder resistance | |
Conformity | Certification by accredited third-party certification body Q Mark. |
Frame | |
Material | Hardwood.Softwood.MDF. |
Species | American white oak.Ash.European birch.European oak.European redwood.Sapele.Beech.Other.Guidance for specification option: Contact manufacturer for details and insert requirements. |
Appearance class | J10. |
Perimeter seals or inserts | Fire seal.Fire and smoke seal. |
Finish | Polished.Guidance for specification option: Solid plain lining - hardwoods. Primed.Guidance for specification option: Solid plain lining - softwood and MDF. Full paint finish.Guidance for specification option: Solid plain lining - softwood and MDF. Factory stain.Guidance for specification option: Solid plain lining - softwood and MDF. PVC.Guidance for specification option: Clean form integrated linings only. |
Colour | Guidance for specification option: Consult manufacturer for details. |
External | Manufacturer guidanceInsert requirements or omit. |
Internal | Manufacturer guidanceInsert requirements or omit. |
Door leaf | |
Thickness | 54 mm. |
Core | Solid tri layered particleboard. |
Facings | None.Veneer.High pressure laminate.PVC.Metal facings. |
Species | Not applicable.Ash.Ash burr.Beech steam.Beech white.Elm European.Elm red.Iroko.Maple burr.Maple birds eye.Maple crown.Maple figured.Oak American crown.Oak burr.Oak European crown.Oak European rift.Oak pippy.Oak red.Teak.Tulip wood.Utile.Walnut African.Walnut American.Walnut American burr.Walnut European.Walnut satin.Manufacturer guidanceVeneer methods - Popular lay-ons include book matched, slip matched, centre jointed and centred feature and quartered. Consult manufacturer for details. |
Cut | Crown cut veneer.Quarter cut veneer.Rotary cut veneer.Rift cut veneer. |
Lippings | Hardwood lipping all round.Guidance for specification option: Cores are lipped in hardwood with various thicknesses available, consult manufacturer for details. The cores are lipped on all four edges as standard. |
Finish | Veneer - Polished.Guidance for specification option: As standard, 25% gloss levels. Veneer - Polished, with added Hygienilac.Veneer - Unfinished.Full paint finish.Guidance for specification option: Doorsets supplied fully painted to match your colour schemes. Standard gloss level 10%. Insert requirements. Factory stain.Fumed.Primed.High pressure laminate.Guidance for specification option: Decorative laminates are available to give increased impact resistance. Laminate finishes have a surface colour and slightly textured finish. Consult manufacturer for details and insert requirements. PVC.Guidance for specification option: PVC facings are available to give increased impact resistance. PVC has a through colour and smooth finish. Consult manufacturer for details and insert requirements. |
Colour | |
External | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Internal | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Glazing | |
Type | Guidance for specification option: A wide range of glazing configurations are available depending on the required performance, in either bolection or flush bead styles. Consult manufacturer for details. |
Hardware | Guidance for specification option: Principal Doorsets have a full range of ironmongery brands. Consult manufacturer and insert requirements or refer to a schedule. |
Architraves | |
Material | Not required.Hardwood.Softwood.MDF. |
Finish | Polished.Guidance for specification option: Hardwood architraves. Primed ready for site finish.Guidance for specification option: Softwood or MDF architraves. Full paint finish.Guidance for specification option: Softwood or MDF architraves. Factory stain.Guidance for specification option: Softwood or MDF architraves. |
Colour | |
External | Guidance for specification option: Insert requirements or omit. |
Internal | Guidance for specification option: Insert requirements or omit. |
Accessories | None.Door edge protection.Kickplates. |
Certification | FSC certified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Wood |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.25 kg CO₂ eq/unit Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 60 % |
Third party certifications

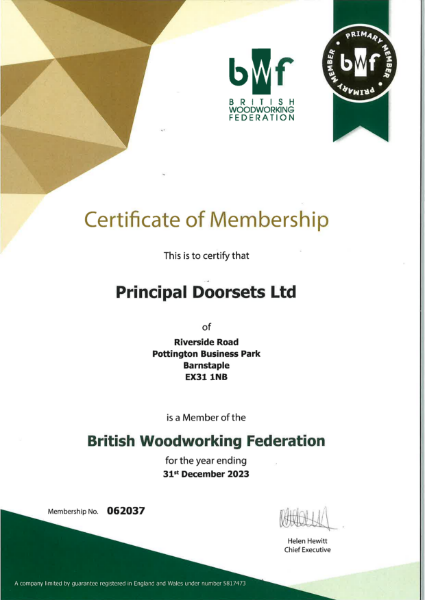

British Woodworking Federation
British Woodworking Federation

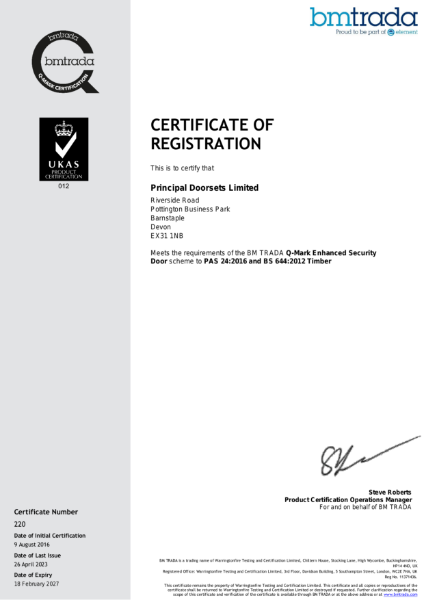

BM Trada
Q-Mark Enhanced Security Door PAS 24:2016 and BS 644:2012 Timber

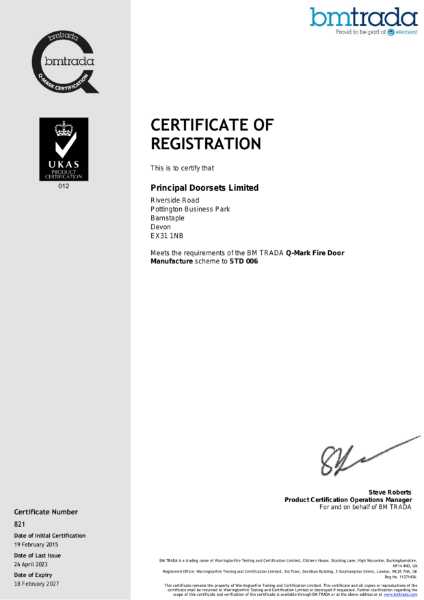

BM Trada
Q-Mark Fire Door Manufacture STD006
Literature

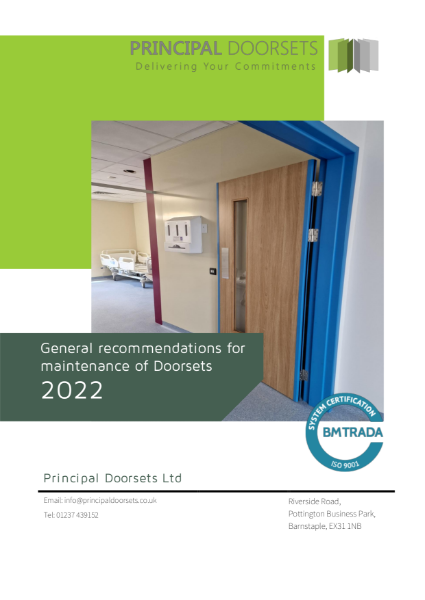

Maintenance Guide
