FD30 Fire Rated Doorset

Verified by manufacturer 4 months ago

Principal

Principal Doorsets Ltd Variant:
Third party certifications:
  • British Woodworking Federation

    British Woodworking Federation

    Certificate type

  • FSC

    FSC

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

30 minute fire rated range of doorsets in various configurations.

Jump to:
+44 (0)1237 439152 Website

Application

Suitable for interior applications in the following sectors:

  • Healthcare and Wellbeing
  • Eucation
  • Commercial and workplace
  • Leisure
  • High-end Residential Applications.

Description

A range of FD30 functional quality fire-rated doors and doorsets.


Features and benefits:

  • All doors/doorsets can be tailored to suit each bespoke project.
  • Materials are supplied from a single source.
  • Supplied with full fire ratings
  • Wide choice of accessories available to enhance the product.
  • Rw 27 - 44 dB
  • Available with accoustic performance RW 27- 44dB
  • FSC compliant
  • Qmarked


Technical Standards

  • Tested in accordance with BS 476-22: 1987.
  • BS 476: Part 22: 1987 and EN 1634-1.


General information

Color

Other

Finish

Veneered

Painted

Stained

Primed

Laminated

Material

Acrylonitrile styrene acrylate (ASA)

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

Internal fire-rated doorset third-party-certified.

Wood in joinery standard

To BS EN 942.

Configuration

Single-leaf, single-action.

Single-leaf, double-action.

Double-leaf, single-action.

Double-leaf, double-action.

Doorset size

Guidance for specification option:

Insert requirements or refer to a schedule.

Performance

-

Fire resistance

-

Integrity

30 minutes.

Radiation

To BS EN 13501-2, W 30 minutes.

Strength and durability

To BS EN 1192, Class 4.

Guidance for specification option:

Severe duty.

Intruder resistance

-

Minimum requirement

-

Frame

-

Material

Solid plain lining - hardwood.

Solid plain lining - softwood.

Solid plain lining - MDF.

Integral split lining.

Once rebated lining.

Engineered plain lining - hardwood.

ALU30 Safehinge.

Clean form integrated lining - PVC wrapped.

Perimeter seals or inserts

Fire seal.

Fire and smoke seal.

Finish

Polished.

Guidance for specification option:

Solid plain lining - hardwoods.

Primed.

Guidance for specification option:

Solid plain lining - softwood and MDF.

Full paint finish.

Guidance for specification option:

Solid plain lining - softwood and MDF.

Factory stain.

Guidance for specification option:

Solid plain lining - softwood and MDF.

PVC.

Guidance for specification option:

Clean form integrated linings only.

External

-

Manufacturer guidance

Insert requirements or omit.

Internal

-

Manufacturer guidance

Insert requirements or omit.

Door leaf

-

Thickness

44 mm.

Core

Solid timber core faced with plywood.

Solid timber core faced with particleboard.

Solid timber core faced with MDF.

Facings

None.

Veneer.

High pressure laminate.

PVC.

Metal facings.

Species

Not applicable.

Ash.

Ash burr.

Ash olive.

Beech steam.

Beech white.

Birch.

Cherry American.

Cherry European.

Chestnut crown.

Chestnut quartered.

Ebony.

Elm European.

Elm red.

Eucalyptus.

Iroko.

Jatoba.

Koto.

Mahogany African.

Mahogany figured.

Makore.

Maple burr.

Maple birds eye.

Maple crown.

Maple figured.

Movingui.

Oak American crown.

Oak burr.

Oak European crown.

Oak European rift.

Oak pippy.

Oak red.

Swiss pear.

Sycamore European.

Sycamore figured.

Sycamore weathered crown.

Sycamore weathered quartered.

Teak.

Tropical olive.

Tulip wood.

Utile.

Walnut African.

Walnut American.

Walnut American burr.

Walnut European.

Walnut satin.

Wenge.

Yew.

Zebrano.

Manufacturer guidance

Veneer methods - Popular lay-ons include book matched, slip matched, centre jointed and centred feature and quartered.

Consult manufacturer for details.

Finish

Veneer - Polished.

Guidance for specification option:

As standard, 25% gloss levels.

Veneer - Polished, with added Hygienilac.

Veneer - Unfinished.

Full paint finish.

Guidance for specification option:

Doorsets supplied fully painted to match your colour schemes. Standard gloss level 10%. Insert requirements.

Factory stain.

Fumed.

Primed.

High pressure laminate.

Guidance for specification option:

Decorative laminates are available to give increased impact resistance. Laminate finishes have a surface colour and slightly textured finish. Consult manufacturer for details and insert requirements.

PVC.

Guidance for specification option:

PVC facings are available to give increased impact resistance. PVC has a through colour and smooth finish. Consult manufacturer for details and insert requirements.

Colour

-

External

Guidance for specification option:

Insert requirements or omit.

Internal

Guidance for specification option:

Insert requirements or omit.

Glazing

-

Type

-

Hardware

Guidance for specification option:

Principal Doorsets have a full range of ironmongery brands. Consult manufacturer and insert requirements or refer to a schedule.

Architraves

-

Material

Not required.

Hardwood.

Softwood.

MDF.

Finish

Polished.

Guidance for specification option:

Hardwood architraves.

Primed ready for site finish.

Guidance for specification option:

Softwood or MDF architraves.

Full paint finish.

Guidance for specification option:

Softwood or MDF architraves.

Factory stain.

Guidance for specification option:

Softwood or MDF architraves.

Colour

-

External

Guidance for specification option:

Insert requirements or omit.

Internal

Guidance for specification option:

Insert requirements or omit.

Accessories

None.

Door edge protection.

Kickplates.

Certification

FSC certified.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Acrylonitrile styrene acrylate (ASA)

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.25 kg CO₂ eq/unit

Self declared

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %

Third party certifications

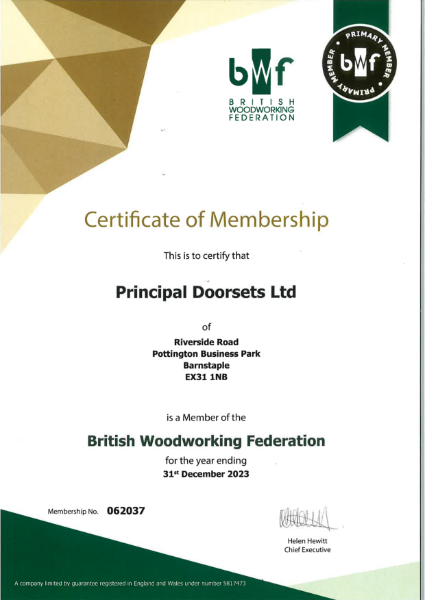

British Woodworking Federation

British Woodworking Federation

British Woodworking Federation

FSC

FSC

FSC TT-COC-005215

FSC

FSC

ISO9001-2015 Quality Management System

BM Trada

BM Trada

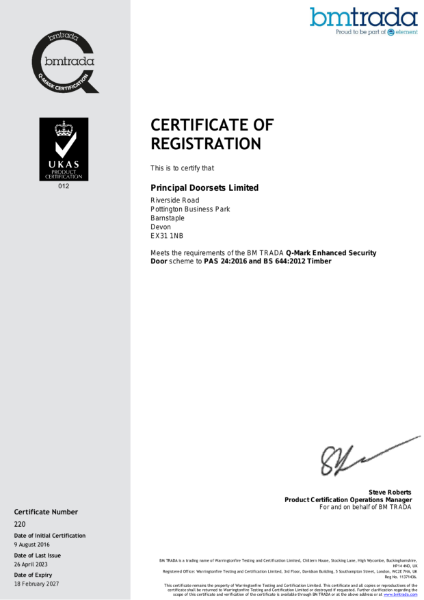

Q-Mark Enhanced Security Door PAS 24:2016 and BS 644:2012 Timber

BM Trada

BM Trada

Q-Mark Fire Door Manufacture STD006

Literature

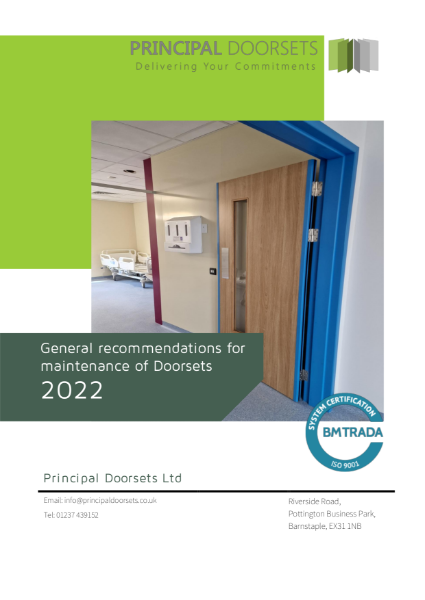

Maintenance Guide

Maintenance Guide
