Passivhaus Doorsets

Verified by manufacturer 4 months ago

Principal Doorsets Ltd Third party certifications:
  • British Woodworking Federation

    British Woodworking Federation

    Certificate type

  • BM Trada

    BM Trada

    Certificate type

  • FSC

    FSC

    Certificate type

Passivhaus doorsets.

Jump to:
+44 (0)1237 439152 Website

Application

Suitable for exterior applications.

Description

Heavy duty Passivhaus doorsets.


Features and benefits:

  • Heavy duty rating.

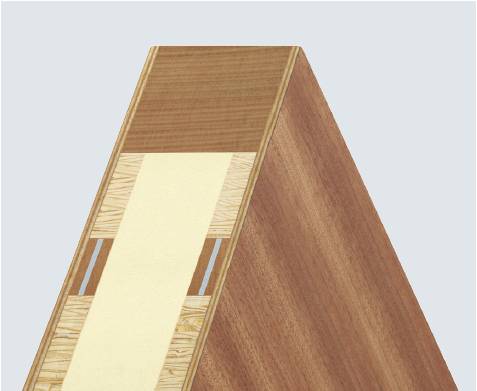

  • Spruce core single batten construction, hardwood stile and rails, steel stabiliser bars.
  • Can be provided non-fire rated
  • For residential dwellings we can offer security to PAS24 rating.
  • Wide range of available configurations.
  • Significant notable levels of airtightness and insulation with minimal thermal bridges.
  • High level of internal air quality provided by a mechanical ventilation system that recovers heat, efficiently.
  • Certified Passive House component from the Passive House Institute in Darmstadt, Germany.
  • Only UK Accredited and Licenced Manufacturer in UK
  • UKCA accredited

General information

Color

Other

Finish

Veneered

Primed

Material

Timber

Wood

Steel

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

CE certified to EN 14351-1:2006; BS 6375-2 and BS 6375-3.

Configuration

Single-leaf, single-action latched.

Single-leaf, single-action latched with over panel.

Single-leaf, single-action latched with fanlight.

Double-leaf, single-action latched.

Double-leaf, single-action latched with transomed over panel.

Double-leaf, single-action latched with flush over panel.

Doorset size

Guidance for specification option:

Insert requirements.

Single Door FD30

  • Clear Opening Width: up to 1308mm.
  • Clear Opening High: up to 3111mm 60 min

Single Doors FD60

  • Clear Opening Width: up to 1250 mm.
  • Clear Opening Height: up to 2900 mm .

Performance

-

Fire resistance

-

Integrity

Non-fire rated.

Acoustic performance

Unrated.

Strength and durability

To BS EN 1192, Class 3.

Guidance for specification option:

Heavy duty rating.

Thermal

≤0.80 W/m²K.

Guidance for specification option:

Pre-hung doorset (frame and ironmongery), with and without glazing.

Intruder resistance

-

Minimum requirement

Not required.

To PAS 24.

Frame

-

Material

Hardwood.

Threshold

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Perimeter seals or inserts

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Finish

Primed.

Veneer.

Colour

-

Manufacturer guidance

Dependent on finish; consult manufacturer for details and insert requirements.

External

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Internal

As External.

Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Installation fasteners

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Frame accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Door leaf

-

Thickness

68 mm.

Guidance for specification option:

Single rebate.

78 mm.

Guidance for specification option:

Double rebate.

88 mm.

Guidance for specification option:

Double rebate.

98 mm.

Guidance for specification option:

Double rebated and certified by the Passivhaus institute.

Manufacturer guidance

Door leaf core thickness.

Core

Spruce core single batten construction.

Panel details

Hardwood stile and rails with steel stabiliser bars.

Facings

Primed.

Veneer.

Lippings

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Perimeter seals

-

Manufacturer guidance

Consult manufacturer and insert requirements or omit.

Finish

As Facings.

Colour

-

External

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Internal

As External.

Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Glazing

-

Type

Glazed.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Unglazed.

Beading

-

Material

Hardwood.

Softwood.

Door accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Hardware

Required.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Third-party certification

Passive House Institute Certified Component.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Timber

Wood

Steel

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.28 kg CO₂ eq/kg

Self declared

Recyclability

All products carry FSC® certification and can be specified with the confidence that Principal Doorsets Ltd are committed to sourcing all of its timber products from responsibly managed forests. A large percentage of raw materials used in manufacturing are from recycled materials.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

35 %

Third party certifications

British Woodworking Federation

British Woodworking Federation

British Woodworking Federation

BM Trada

BM Trada

Q-Mark Enhanced Security Door PAS 24:2016 and BS 644:2012 Timber

FSC

FSC

FSC TT-COC-005215

FSC

FSC

ISO9001-2015 Quality Management System

BM Trada

BM Trada

Q-Mark Fire Door Manufacture STD006
