Acoustic Doorsets

Name: Acoustic Doorsets
Brand: Principal Doorsets Ltd
SKU: qaQWCka6qohwA66GhVNyUW

Verified by manufacturer 1 month ago

Principal Doorsets Ltd

Third party certifications:

BM Trada
Certificate type

Acoustic range of doorsets in various configurations up to Rw 44 dB.

Jump to:

+44 (0)1237 439152 Website

Application

Suitable for interior applications in the following sectors:

Healthcare and wellbeing.
Education.
Commercial and workplace.
Leisure.
High end residential.

Description

Functional, quality acoustic doors with high flexibility and a great diversity.

Features and benefits:

High performance.
Available in multiple acoustic performances.

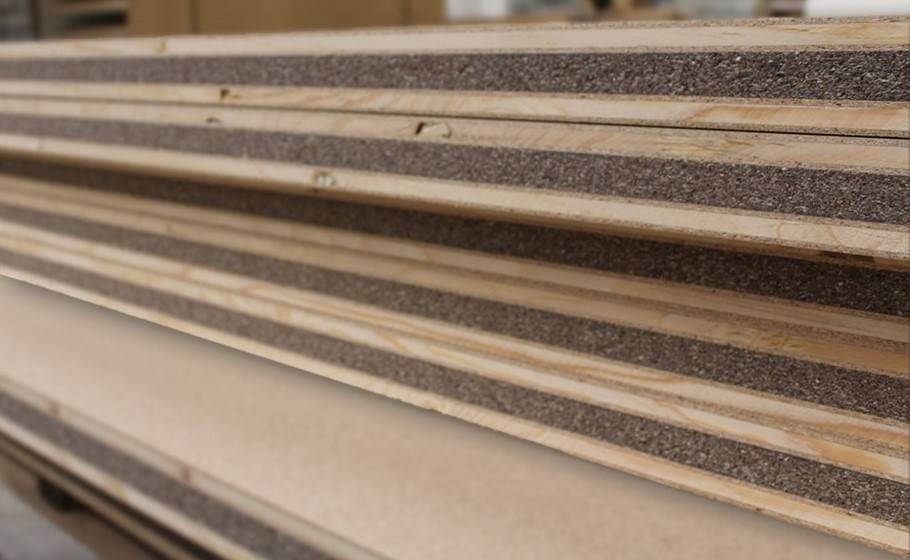

Manufactured from layers of laminated timber and particle board.
Can be supplied with full fire ratings.
Selection of accessories available to enhance the product.
Rw 27 - 44 dB

Technical standards:

Approved Document Part E 2015.
BS EN ISO 140-3 : 1995 formerly BS 2750 : Part 3.
BS EN ISO 10140-2:2010 - formerly BS EN ISO 140-3: 1995.
BS EN ISO 717/1 - formerly BS 5821 :Part 1.
FSC compliant.

General information

Color	Other
Finish	Veneered Laminated Primed Painted Lacquered Grained Wood grain Other Guidance for specification option: PVC wrapped (postform) and PVC. Show more
Material	Timber Particleboard Wood Medium density fibreboard (MDF)
Shape	Rectangle
Length	Bespoke Guidance for specification option: Single Doorsets Clear Opening Width: up to 1475mm. Clear Opening High: up to 2250mm Double Doorsets Clear Opening Width: up to 1425mm. Clear Opening High: up to 2250mm
Width	Bespoke Guidance for specification option: Single Doorsets Clear Opening Width: up to 1475mm. Clear Opening High: up to 2250mm Double Doorsets Clear Opening Width: up to 1425mm. Clear Opening High: up to 2250mm
Height	Bespoke Guidance for specification option: Single Doorsets Clear Opening Width: up to 1475mm. Clear Opening High: up to 2250mm Double Doorsets Clear Opening Width: up to 1425mm. Clear Opening High: up to 2250mm
Warranty description	Ten year

Uniclass	Pr_30_59_24_97 Wood doorsetsPrimary
CAWS	L20/410 Wood doorsets L20/55 Doorsets

Specification data - Wood doorsets

Third-party certification	BM Trada Q-Mark, FSC, ISO: 9001:2015.
Standard	To BS 476 Part 22:1987; BS EN 1634-1; BS EN ISO 10140-2.
Wood in joinery standard	To BS EN 942 and BS EN 1186.
Configuration	Double-leaf, single-action. Double-leaf, double-action. Leaf and part-leaf, single-action. Leaf and part-leaf, double-action. Single-leaf, single-action. Single-leaf, double-action. Manufacturer guidance Consult manufacturer for details.
Doorset size	Bespoke. Guidance for specification option: Insert requirements. Clear Opening Width: up to 1425 mm. Clear Opening Height: up to 2250 mm.
Performance	-
Fire resistance	-
Integrity	To BS EN 13501-2, E 30 minutes. To BS EN 13501-2, E 60 minutes. To BS EN 13501-2, E 30S. To BS EN 13501-2, E 60S.
Insulation	To BS EN 13501-2, I 30 minutes. To BS EN 13501-2, I 60 minutes.
Radiation	To BS EN 13501-2.
Smoke leakage	To BS EN 1634-3.
Acoustic performance	To BS EN ISO 10140-2, sound reduction index up to Rw 44 dB. Guidance for specification option: Tested and proven to deliver above 43 dB RW. Consult manufacturer for details.
Strength and durability	To BS EN 1192, Class 4. Guidance for specification option: Severe duty (500 000 cycles).
Thermal	1.51 W/m²K.
Frame	-
Material	Hardwood. Softwood. MDF.
Species	Sapele. Beech. Oak. Other. Guidance for specification option: Consult manufacturer for details. Ash. Walnut.
Appearance class	J10.
Threshold	Aluminium. Timber.
Perimeter seals or inserts	Acoustic seal. Fire and smoke seal.
Finish	Primed ready for site finish. Sealed. Factory stain. Full paint finish. Postformed. Factory lacquer. Laminate. Manufacturer guidance Consult manufacturer and insert requirements.
Colour	- Manufacturer guidance Consult manufacturer for details and insert requirements.
External	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Internal	As External. Other. Guidance for specification option: Consult manufacturer for details and insert requirements.
Installation fasteners	Screws. Stainless steel frame cramps. Fischer fittings.
Frame accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Door leaf	-
Thickness	44–59 mm. Guidance for specification option: Consult manufacturer for details and insert requirements.
Core	Laminated timber and particle board. Guidance for specification option: Layered.
Panel details	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Facings	Primed. Full paint finish. PVC wrapped (postform). Veneer. Laminate.
Species	American white oak. Ash. Beech. European oak. Walnut. Seapele. Maple. Other. Guidance for specification option: Consult manufacturer for details and insert requirements.
Cut	Crown cut veneer. Quarter cut veneer. Rotary cut veneer. Rift cut veneer.
Lippings	Concealed lippings to long edges. Exposed lippings to long edges. Lipping to match facing veneers. Lipping all round.
Perimeter seals	Acoustic. Fire and smoke.
Finish	As Facings.
Colour	-
External	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Internal	As External. Other. Guidance for specification option: Consult manufacturer for details and insert requirements.
Glazing	-
Type	Clear fire-resisting safety glazing. Obscure fire-resisting safety glazing.
Manifestation	Sandblasted.
Beading	-
Type	Internal.
Material	Hardwood. Softwood.
Fixing	Pinned. Cups and screws. Screw and pellet.
Door accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.
Planted stops	-
Wood species	Oak. Sapele. Beech. Ash. Walnut. Maple. Others. Guidance for specification option: Consult manufacturer for details and insert requirements.
Appearance class	J10.
Finish	Primed ready for site finish. Factory stain. Full paint finish. Lacquered.
Hardware	Not required. Required. Guidance for specification option: Consult manufacturer for details and insert requirements.
Architraves	-
Material	Oak. Sapele. Beech. Ash. Walnut. Maple. Others. Guidance for specification option: Consult manufacturer for details and insert requirements.
Wood appearance class	J10.
Finish	Primed ready for site finish. Stained. Lacquered. Full paint finish.
Accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements or omit.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	Timber Particleboard Wood Medium density fibreboard (MDF)
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.25 kg CO₂ eq/kg Self declared
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	60 %

Third party certifications

BM Trada

Q-Mark Fire Door Manufacture STD006

BM Trada

Q-Mark Enhanced Security Door PAS 24:2016 and BS 644:2012 Timber

BM Trada

Qmark

Literature

Maintenance Guide
