Postform Doorsets - Fire Doorset

Verified by manufacturer 6 months ago

Principal Doorsets Ltd Third party certifications:
  • BM Trada

    BM Trada

    Certificate type

  • British Woodworking Federation

    British Woodworking Federation

    Certificate type

PVC postformed hardwood/softwood/MDF offering a severe duty doorset for use in Healthcare, Education, Leisure, and Sports environments.

Jump to:
+44 (0)1237 439152 Website

Application

Suitable for high performance uses such as:

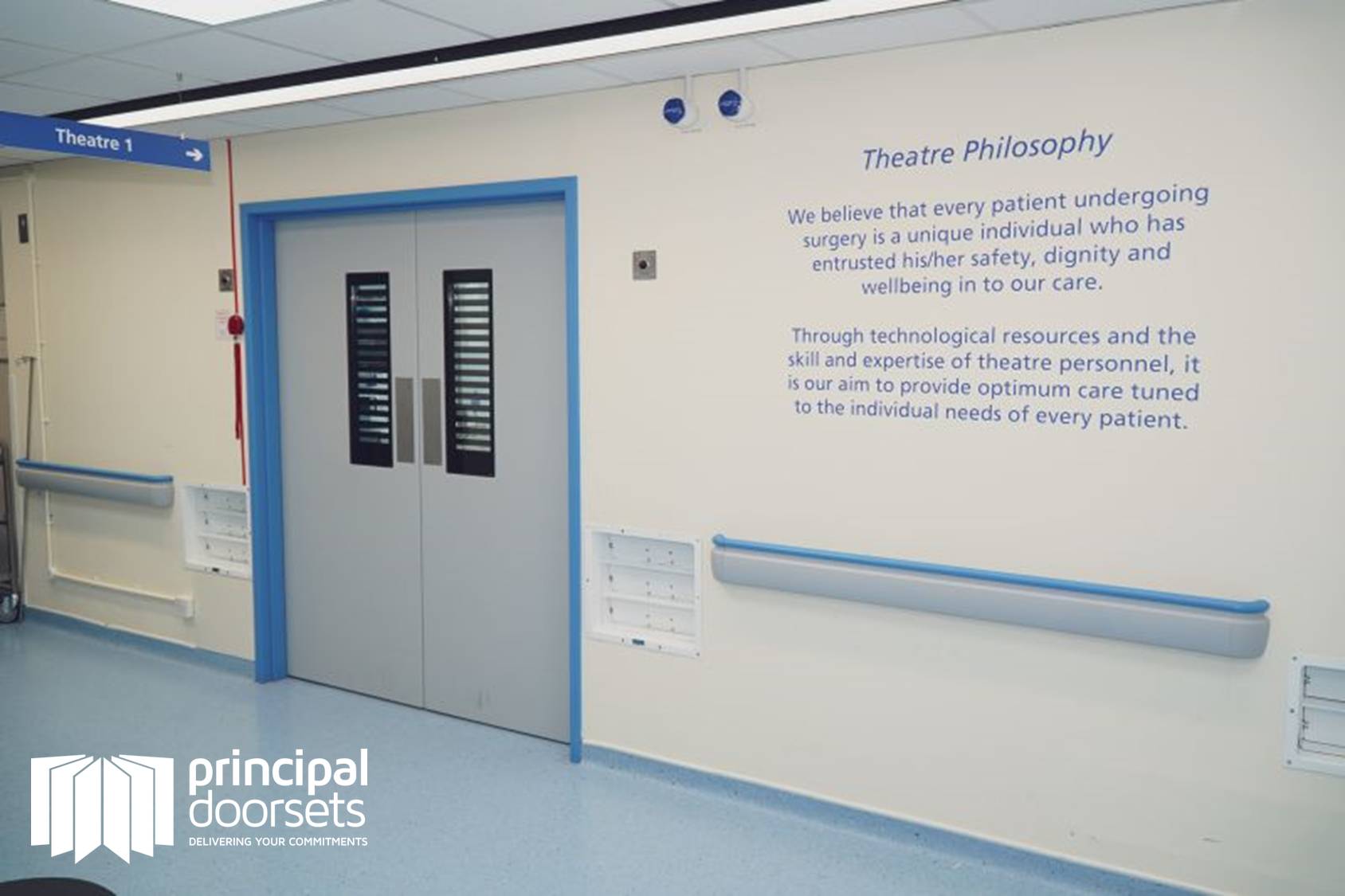

  • Healthcare (Clinics, Scanner Suites, Operating Theatres Wards, Cross Corridor Streets, MAU, Mortuary).
  • Educational environments (sport hall, Changing facilities, were heavy wear and tear resistance is required).
  • Wet areas (Leisure Centres, Therapy Pools, Changing areas, Spa's etc.).
  • Laboratories.
  • Hospitality (Kitchen, Catering, Food Preparation)

Description

Clean, smart, easy to maintain and higher duty PVC surface finishes in a range of colours, utilising hardwood, softwood or MDF.


Features and benefits:

  • High performance surface.
  • Easy to clean and maintain.
  • Tailored to required performances.
  • Available with impregnated Hygienilac to control the spread of germs.
  • Available in a range of colours.
  • A range of vision panels available to complement the doors.
  • Can be manufactured to perform in areas of heightened moisture levels.

General information

Color

White

Cream

Grey

Blue

Brown

Show more

Finish

Textured

Manufacturer guidance

PVC

Material

Timber

Acrovyn®

Glass

Steel

Wood

Show more

Shape

Rectangle

Length

Bespoke

Guidance for specification option:

Single Door

Clear Opening Width: up to 1192mm.

Clear Opening High: up to 2486mm.

Double Door

Clear Opening Width: up to 1072mm.

Clear Opening High: up to 2544mm.

Width

Bespoke

Guidance for specification option:

Single Door

Clear Opening Width: up to 1192mm.

Clear Opening High: up to 2486mm.

Double Door

Clear Opening Width: up to 1072mm.

Clear Opening High: up to 2544mm.

Height

Bespoke

Guidance for specification option:

Single Door

Clear Opening Width: up to 1192mm.

Clear Opening High: up to 2486mm.

Double Door

Clear Opening Width: up to 1072mm.

Clear Opening High: up to 2544mm.

Warranty description

Ten year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

SKU Code

PF30, PF60

Specification data - Wood doorsets

Standard

To BS 476 Part 22 1987 and BS EN 1634-1.

Wood in joinery standard

To BS EN 942 and BS 1186.

Configuration

Double-leaf, single-action.
Double-leaf, double-action.
Single-leaf, single-action.
Single-leaf, double-action.

Manufacturer guidance

Overpanel, latched and unlatched options.

Consult manufacturer for details and insert requirements.

Doorset size

-

Manufacturer guidance

Insert requirements.

Single door:

  • Clear Opening Width: up to 1192 mm.
  • Clear Opening Height: up to 2486 mm.

Double door:

  • Clear Opening Width: up to 1072 mm.
  • Clear Opening Height: up to 2544 mm.

Performance

-

Fire resistance

-

Integrity

To BS EN 13501-2, E 30 minutes.
To BS EN 13501-2, E 60 minutes.
To BS EN 13501-2, E 60 minutes.
To BS EN 13501-2, E 60S.

Insulation

To BS EN 13501-2, I 30 minutes.
To BS EN 13501-2, I 60 minutes.

Radiation

To BS EN 13501-2, W 30 minutes.
To BS EN 13501-2, W 60 minutes.

Smoke leakage

To BS EN 1634-3.2004.

Acoustic performance

To BS EN ISO 10140-2, sound reduction index Rw 35 dB minimum.

Guidance for specification option:

Dependent on core, consult manufacturer and insert requirements.

Strength and durability

To BS EN 1192, Class 2–3.

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Thermal

2.00 W/m²K.

Frame

-

Material

Hardwood.
Softwood.
MDF.

Species

American white oak.
Ash.
Beech.
European oak.
Sapele.
Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Appearance class

J10.

Threshold

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Perimeter seals or inserts

Fire and smoke seal.

Finish

PVC wrapped.

Guidance for specification option:

Backs of frames are not wrapped unless requested.

Colour

White.
Snow White.
Mission White.
Eggshell.
French Cream.
Grey Cloud.
Dove.
Iron.
Taupe.
Mocha.
Pearl Grey.
Charcoal.
Graphite.
Earth.
Black.
Harvest Gold.
Sherbet.
Spectrum Red.
Zest.
Spring Green.
Alpine Blue.
Pacific Blue.
Lagoon.
Dusty Jade.
Mint Turquoise.
Danube.
Cobalt.
Yale Blue.
Plum.
Imperial Purple.

Internal

As External.

Installation fasteners

Stainless steel screws.
Zinc plated screws.
Fischer through fittings.

Frame accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Door leaf

-

Thickness

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Core

Solid core.

Appearance class

J10.

Panel details

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Facings

Full paint.
Fully primed for site.
Timber veneer.
PVC.
Foils.

Species

Hardwood.
Oak.
Sapele.
Maple.
Ash.
Beech.
Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Cut

Crown cut veneer.
Quarter cut veneer.
Rotary cut veneer.
Rift cut veneer.

Lippings

Concealed lippings to long edges.
Lipping to match facing veneers.
Lipping all round.
Timber lipping 6–13 mm.

Guidance for specification option:

Insert requirements.

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Perimeter seals

Fire and smoke.

Finish

PVC wrapped.

Colour

-

External

White.
Snow White.
Mission White.
Eggshell.
French Cream.
Grey Cloud.
Dove.
Iron.
Taupe.
Mocha.
Pearl Grey.
Charcoal.
Graphite.
Earth.
Black.
Harvest Gold.
Sherbet.
Spectrum Red.
Zest.
Spring Green.
Alpine Blue.
Pacific Blue.
Lagoon.
Dusty Jade.
Mint Turquoise.
Danube.
Cobalt.
Yale Blue.
Plum.
Imperial Purple.

Internal

As External.

Glazing

-

Type

Glazed - flush.
Glazed - traditional.
Unglazed.

Manufacturer guidance

Consult manufacturer for details.

Beading

-

Type

Flush beading.
Bolection beading.

Manufacturer guidance

Consult manufacturer for details.

Material

Hardwood.
Softwood.

Fixing

Pinned.

Door accessories

Not required.
Integrated blinds in vision panels.
Locks and cylinders.
Intumescent wraps.
Fire signage.
Door closers.
Face fitted EMHO.
Kickplates.
Edge protectors.
Fire and smoke seals.
Threshold seals.

Planted stops

-

Wood species

Maple.
Walnut.
Beech.
American white oak.
Ash.
Others.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Appearance class

J10.

Finish

PVC postformed.

Colour

-

Manufacturer guidance

Full colour range available.

Consult manufacturer and insert requirements.

Hardware

Not required.
Locks and cylinders.
Intumescent wraps.
Fire signage.
Door closers.
Face fitted EMHO.
Kickplates.
Edge protectors.
Fire and smoke seals.
Threshold seals.
Escape hardware.

Architraves

-

Material

American White Oak
Walnut.
Sapele.
Ash.
Beech.
Others.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Wood appearance class

J10.

Finish

Smooth.
Textured.

Colour

-

External

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Internal

As External.
Other.

Guidance for specification option:

Consult manufacturer for details and insert requirements.

Accessories

-

Manufacturer guidance

Consult manufacturer for details and insert requirements or omit.

Third-party certification

FSC; BM TRADA Fire Door Alliance; Q-Mark; ISO 9001:2015.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

United Kingdom

Material

Timber
Acrovyn®
Glass
Steel
Wood
Polyvinyl chloride (PVC)
PVC-U

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0.25 kg CO₂ eq/kg

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

50 %

Third party certifications

BM Trada

BM Trada

Q-Mark Enhanced Security Door PAS 24:2016 and BS 644:2012 Timber

BM Trada

BM Trada

Q-Mark Fire Door Manufacture STD006

British Woodworking Federation

British Woodworking Federation

British Woodworking Federation
